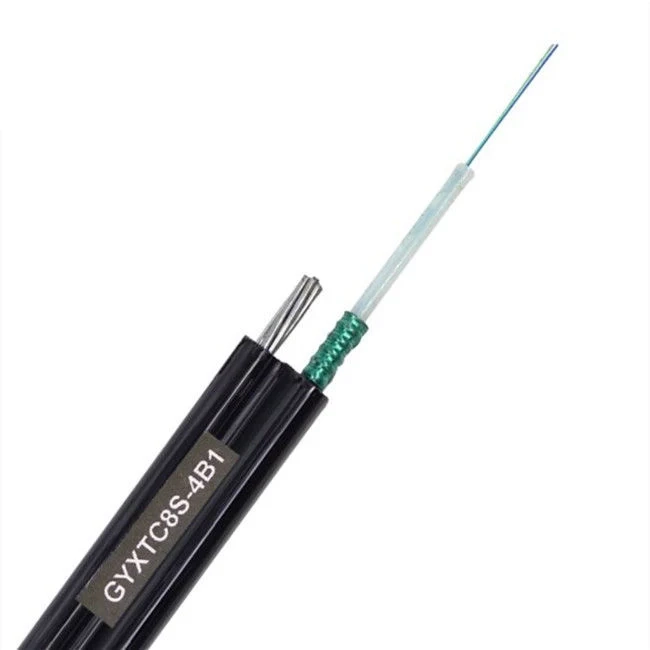

GYXTC8S Figure-8 Self-Supporting Central Tube Fiber Optic Cable
Figure-8 shaped self-supporting aerial cable with central loose tube design and integrated steel messenger wire. 2–24 cores for cost-effective aerial access network deployment.
| Cable Type | GYXTC8S (Figure-8, Central Loose Tube) |
|---|---|
| Fiber Count | 2–24 cores |
| Attenuation @1310nm | ≤0.36dB/km |
| Attenuation @1550nm | ≤0.22dB/km |
| Rated Tensile Strength | 5000N (short-term), 2000N (long-term) |
| Operating Temperature | -40°C to +70°C |
Specifications
| CABLE TYPE | GYXTC8S (Figure-8, Central Loose Tube) |
|---|---|
| FIBER COUNT | 2–24 cores |
| FIBER TYPE | G.652D single-mode |
| INSTALLATION | Self-supporting aerial |
| ATTENUATION @1310NM | ≤0.36dB/km |
| ATTENUATION @1550NM | ≤0.22dB/km |
| CABLE DIMENSIONS | 8.0×7.5×11mm |
| WEIGHT | 100 kg/km |
| RATED TENSILE STRENGTH | 5000N (short-term), 2000N (long-term) |
| CRUSH RESISTANCE | 3000N/100mm (short-term), 1000N/100mm (long-term) |
| OPERATING TEMPERATURE | -40°C to +70°C |
| STRENGTH MEMBER | Steel messenger wire (integrated) |
| ARMOR | PSP (corrugated steel tape) |
| JACKET MATERIAL | PE outer sheath |
| STANDARDS | IEC 60794-1 · YD/T 901 |
