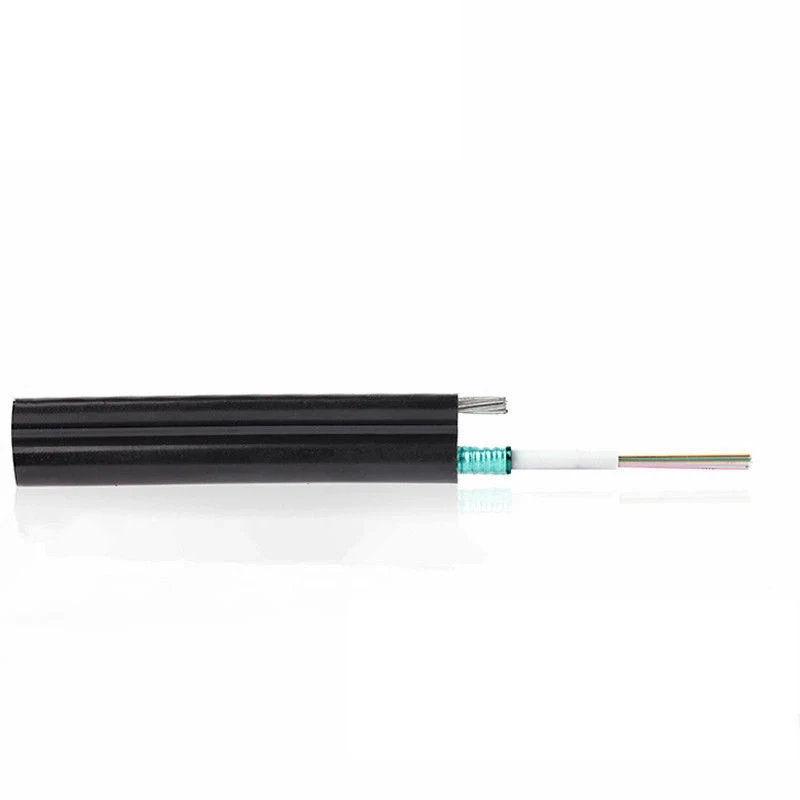

GYTC8S Figure-8 Self-Supporting Steel Tape Armored Fiber Optic Cable
Figure-8 shaped self-supporting aerial cable with stranded loose tube design, corrugated steel tape armor, and integrated steel messenger wire. 4–144 cores with enhanced crush protection.
| Cable Type | GYTC8S (Figure-8, Stranded, Steel Tape) |
|---|---|
| Fiber Count | 4–144 cores |
| Attenuation @1310nm | ≤0.36dB/km |
| Attenuation @1550nm | ≤0.22dB/km |
| Rated Tensile Strength | 5000–11200N (short-term), 2000–4500N (long-term) |
| Operating Temperature | -40°C to +70°C |
Specifications
| Cable Type | GYTC8S (Figure-8, Stranded, Steel Tape) |
|---|---|
| Fiber Count | 4–144 cores |
| Fiber Type | G.652D single-mode |
| Installation | Self-supporting aerial |
| Attenuation @1310nm | ≤0.36dB/km |
| Attenuation @1550nm | ≤0.22dB/km |
| Cable Dimensions | 9.0×16.0mm to 16.8×25.5mm |
| Weight | 163–344 kg/km |
| Rated Tensile Strength | 5000–11200N (short-term), 2000–4500N (long-term) |
| Crush Resistance | 1000N/100mm (short-term), 600–800N/100mm (long-term) |
| Operating Temperature | -40°C to +70°C |
| Strength Member | Steel central strength member + steel messenger wire |
| Armor | Corrugated steel tape (PSP) |
| Jacket Material | PE outer sheath |
| Standards | IEC 60794-1 · YD/T 1114 |
