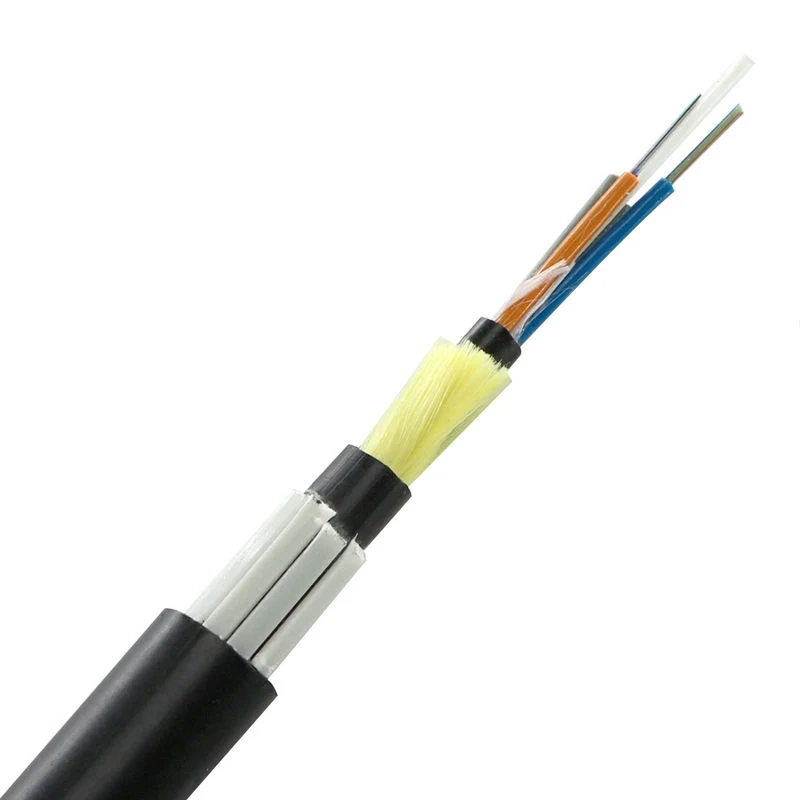

GYFTY63 Anti-Rodent Non-Metallic Core Fiber Optic Cable
Heavy-duty anti-rodent fiber cable with FRP non-metallic core and corrugated steel tape armor with glass yarn protection. 2–144 cores for rodent-prone underground environments.
| Cable Type | GYFTY63 (Non-Metallic Core, Anti-Rodent Armored) |
| Fiber Count | 2–144 cores |
| Attenuation @1310nm | ≤0.36dB/km |
| Attenuation @1550nm | ≤0.22dB/km |
| Rated Tensile Strength | 2000N (short-term), 600N (long-term) |
Specifications
| CABLE TYPE | GYFTY63 (Non-Metallic Core, Anti-Rodent Armored) |
| FIBER COUNT | 2–144 cores |
| FIBER TYPE | G.652D single-mode |
| INSTALLATION | Direct burial, duct (rodent-prone areas) |
| ATTENUATION @1310NM | ≤0.36dB/km |
| ATTENUATION @1550NM | ≤0.22dB/km |
| CABLE DIAMETER | 13.5–18.4mm |
| WEIGHT | 200–345 kg/km |
| RATED TENSILE STRENGTH | 2000N (short-term), 600N (long-term) |
| CRUSH RESISTANCE | 1000N/100mm (short-term), 300N/100mm (long-term) |
| OPERATING TEMPERATURE | -40°C to +70°C |
| STRENGTH MEMBER | FRP central strength member (non-metallic) |
| ARMOR | Corrugated steel tape + glass yarn anti-rodent layer |
| JACKET MATERIAL | PE inner + glass yarn + PE outer sheath |
| STANDARDS | IEC 60794-1 · YD/T 901 |
