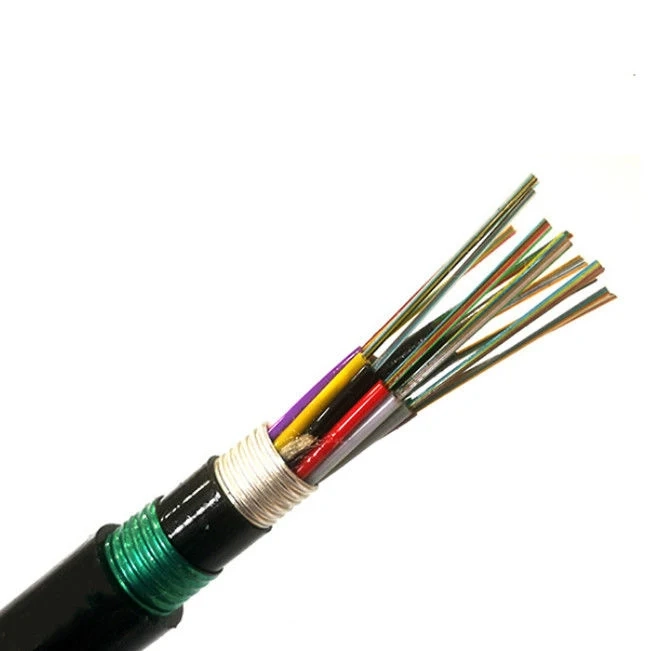

GYFTY53 Non-Metallic Core Armored Fiber Optic Cable
Stranded loose tube cable with non-metallic FRP core and steel tape outer armor. 2–144 cores for direct burial applications combining lightning-safe core with mechanical armor protection.
| Cable Type | GYFTY53 (Non-Metallic Core, Steel Tape Armored) |
| Fiber Count | 2–144 cores |
| Attenuation @1310nm | ≤0.36dB/km |
| Attenuation @1550nm | ≤0.22dB/km |
| Rated Tensile Strength | 3000N (short-term), 1000N (long-term) |
Specifications
| CABLE TYPE | GYFTY53 (Non-Metallic Core, Steel Tape Armored) |
| FIBER COUNT | 2–144 cores |
| FIBER TYPE | G.652D single-mode |
| INSTALLATION | Direct burial, duct |
| ATTENUATION @1310NM | ≤0.36dB/km |
| ATTENUATION @1550NM | ≤0.22dB/km |
| CABLE DIAMETER | 12.0–16.8mm |
| WEIGHT | 155–205 kg/km |
| RATED TENSILE STRENGTH | 3000N (short-term), 1000N (long-term) |
| CRUSH RESISTANCE | 3000N/100mm (short-term), 1000N/100mm (long-term) |
| OPERATING TEMPERATURE | -40°C to +70°C |
| STRENGTH MEMBER | FRP central strength member (non-metallic) |
| ARMOR | Aramid yarn + PE outer sheath |
| JACKET MATERIAL | PE inner + PE outer sheath |
| STANDARDS | IEC 60794-1 · YD/T 901 |
