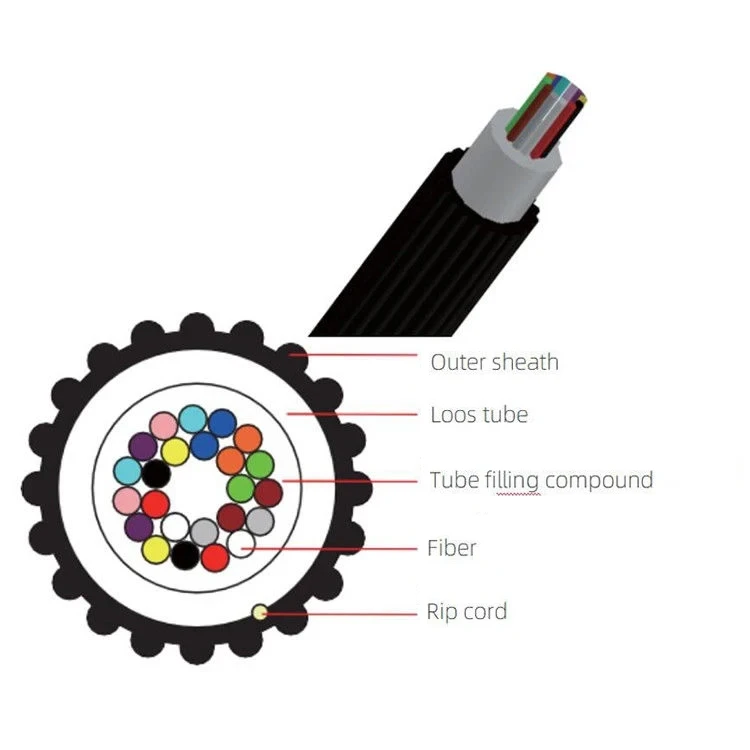

GCYFXTY Air-Blown Micro Fiber Optic Cable
Ultra-small diameter micro fiber cable designed for air-blown installation into microducts. All-dielectric, non-metallic construction. 2–24 cores for high-density FTTH and urban fiber deployment.
| Cable Type | GCYFXTY (Central Bundle Tube, Air-Blown Micro) |
| Fiber Count | 2–24 cores |
| Attenuation @1310nm | ≤0.36dB/km |
| Attenuation @1550nm | ≤0.22dB/km |
| Operating Temperature | -30°C to +70°C |
Specifications
| CABLE TYPE | GCYFXTY (Central Bundle Tube, Air-Blown Micro) |
| FIBER COUNT | 2–24 cores |
| FIBER TYPE | G.652D / G.657A1 single-mode |
| INSTALLATION | Air-blown into microducts |
| ATTENUATION @1310NM | ≤0.36dB/km |
| ATTENUATION @1550NM | ≤0.22dB/km |
| CABLE DIAMETER | 3–8mm |
| CONSTRUCTION | All-dielectric, non-metallic |
| OPERATING TEMPERATURE | -30°C to +70°C |
| JACKET MATERIAL | HDPE outer sheath |
| WEIGHT | 15–40 kg/km |
| STANDARDS | IEC 60794-5 · IEC 60794-1 |
