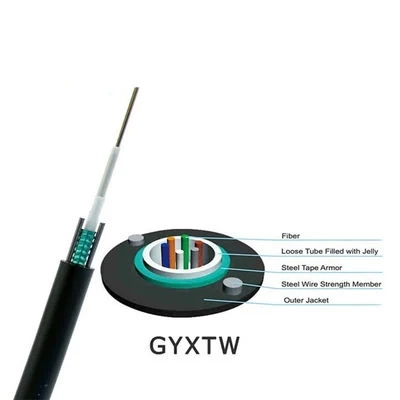

GYXTW Central Loose Tube Steel Tape Armored Fiber Optic Cable
Compact, lightweight outdoor cable with central loose tube and PSP (plastic-steel-plastic) laminate armor. 2–24 cores for duct and aerial access networks.
| Cable Type | GYXTW (Central Loose Tube, PSP Armored) |
| Fiber Count | 2–24 cores |
| Attenuation @1310nm | ≤0.36dB/km |
| Attenuation @1550nm | ≤0.22dB/km |
| Rated Tensile Strength | 1500N (short-term), 600N (long-term) |
| Operating Temperature | -40°C to +70°C |
Specifications
| CABLE TYPE | GYXTW (Central Loose Tube, PSP Armored) |
| FIBER COUNT | 2–24 cores |
| FIBER TYPE | G.652D / G.657A single-mode |
| INSTALLATION | Duct, aerial |
| ATTENUATION @1310NM | ≤0.36dB/km |
| ATTENUATION @1550NM | ≤0.22dB/km |
| CABLE DIAMETER | ~8.0mm |
| WEIGHT | 90–110 kg/km |
| RATED TENSILE STRENGTH | 1500N (short-term), 600N (long-term) |
| CRUSH RESISTANCE | 1000N/100mm (short-term), 300N/100mm (long-term) |
| OPERATING TEMPERATURE | -40°C to +70°C |
| ARMOR | PSP (Plastic/Steel/Plastic) laminate |
| JACKET MATERIAL | PE outer sheath |
| STANDARDS | IEC 60794-1 · YD/T 1158 |
