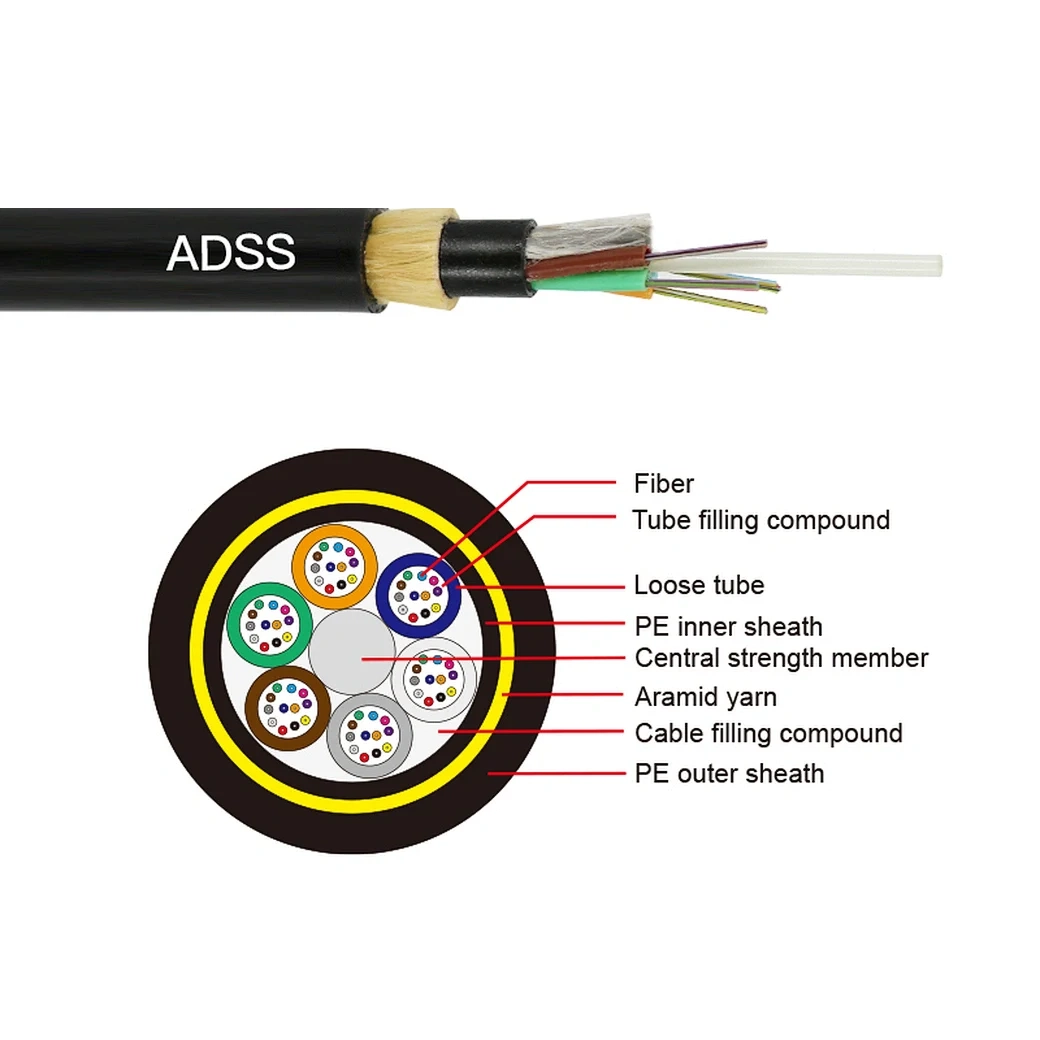

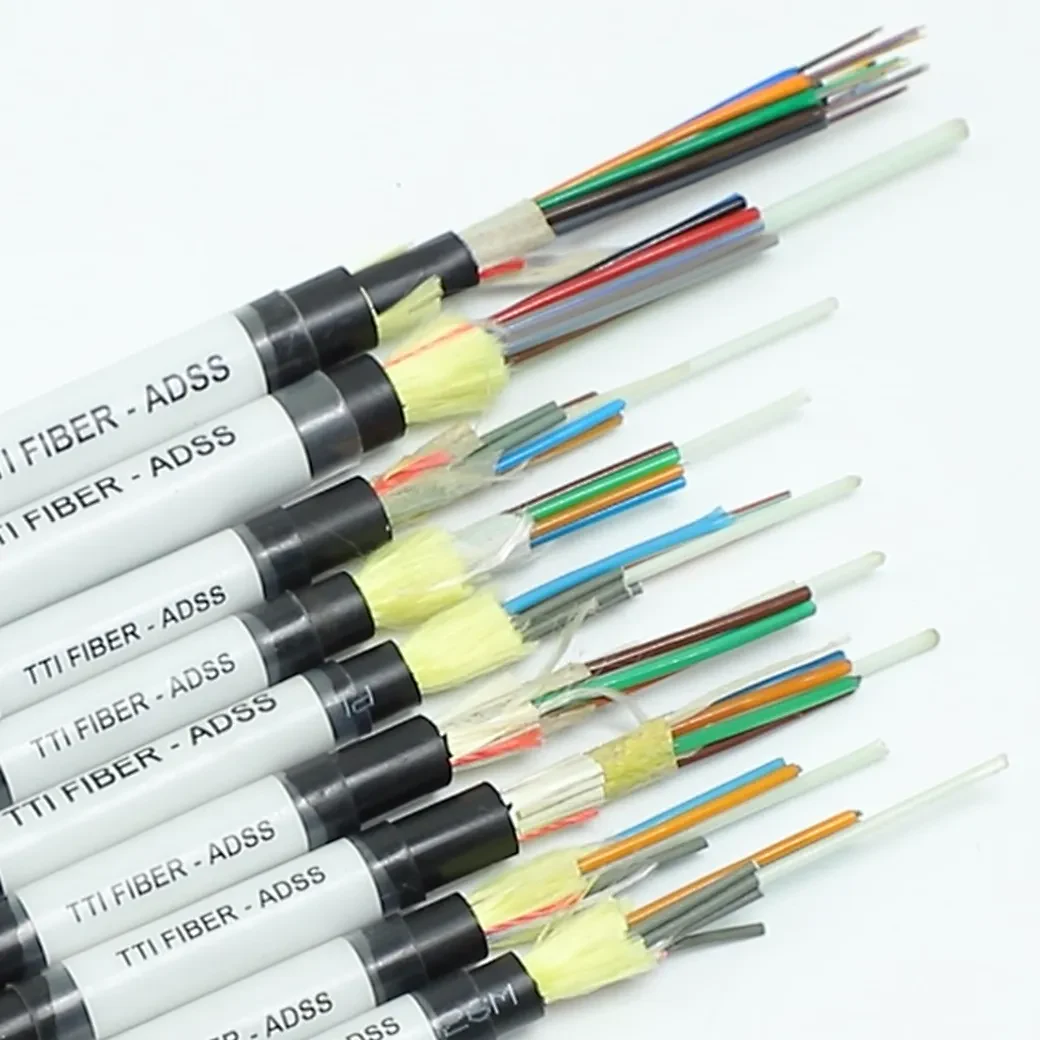

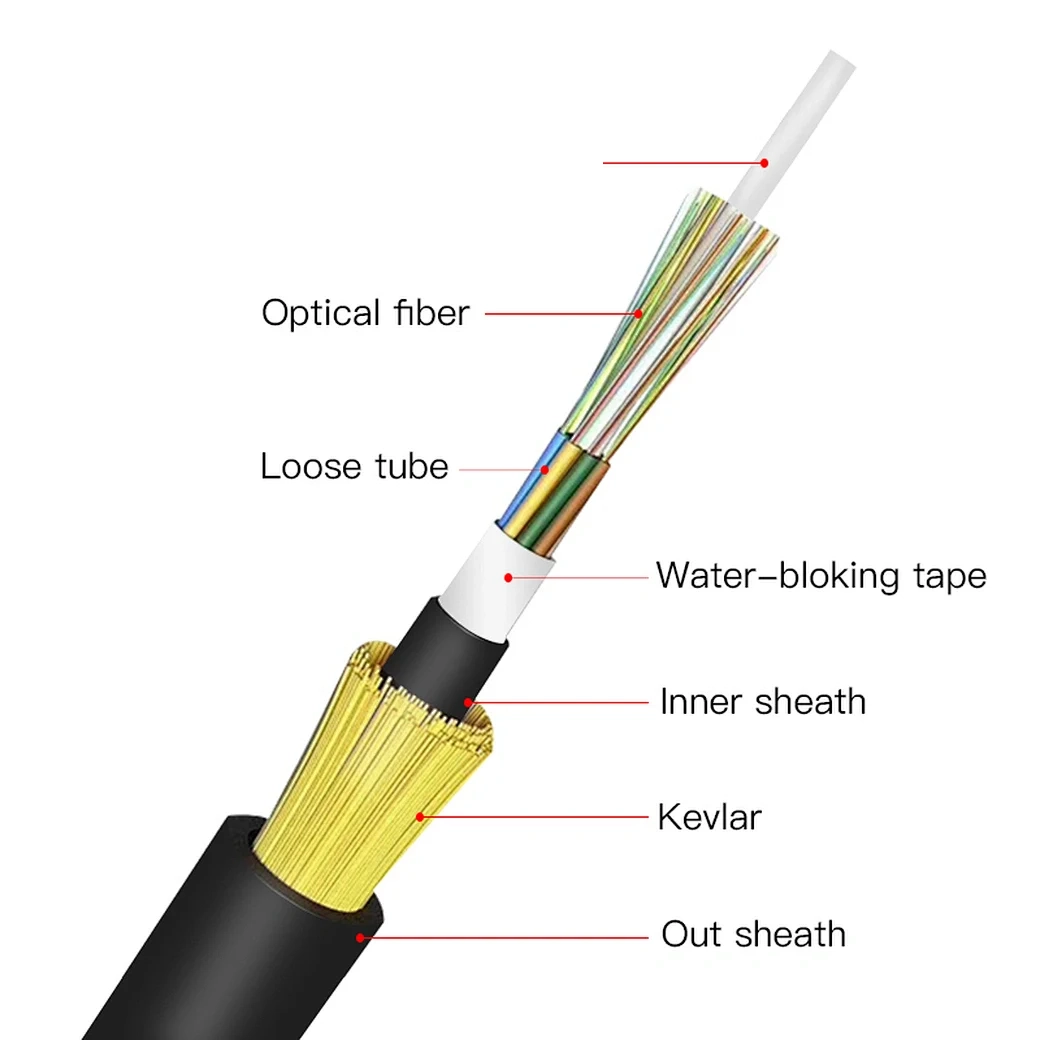

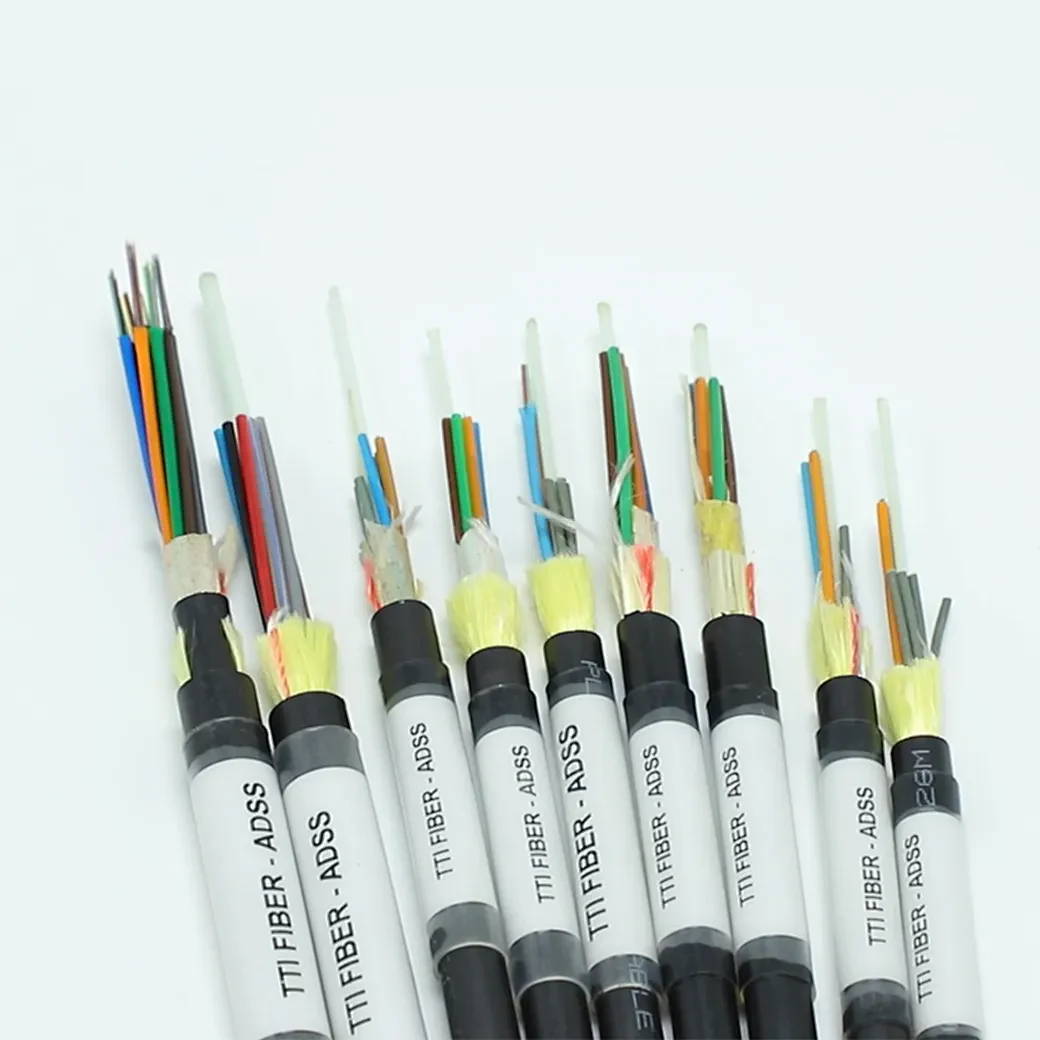

ADSS All-Dielectric Self-Supporting Outdoor Fiber Optic Cable
Self-supporting aerial fiber cable for power line environments. Non-metallic, lightning-resistant, 30+ year lifespan. 2–576 cores, spans up to 880m.
| Cable Type | ADSS (All-Dielectric Self-Supporting) |
| Fiber Count | 2–576 cores |
| Attenuation @1310nm | ≤0.36dB/km |
| Attenuation @1550nm | ≤0.22dB/km |
| Rated Tensile Strength | 10–85kN |
| Operating Temperature | -40°C to +70°C |
Specifications
| CABLE TYPE | ADSS (All-Dielectric Self-Supporting) |
| FIBER COUNT | 2–576 cores |
| FIBER TYPE | G.652D single-mode |
| INSTALLATION | Self-supporting aerial |
| ATTENUATION @1310NM | ≤0.36dB/km |
| ATTENUATION @1550NM | ≤0.22dB/km |
| BANDWIDTH @1300NM | ≥1000MHz·km |
| CABLE CUT-OFF WAVELENGTH | ≤1260nm |
| CABLE DIAMETER | 11.0–14.8mm |
| RATED TENSILE STRENGTH | 10–85kN |
| WEIGHT | 72–224 kg/km |
| SPAN CAPABILITY | 100–880m (varies by condition) |
| OPERATING TEMPERATURE | -40°C to +70°C |
| STORAGE TEMPERATURE | -40°C to +70°C |
| LIFE EXPECTANCY | >30 years |
| JACKET MATERIAL | PE outer sheath / AT sheath |
| STANDARDS | IEEE 1222 · IEC 60794-1 |
