GJXH Indoor FTTH Drop Cable with G.657A Bend-Insensitive Fiber

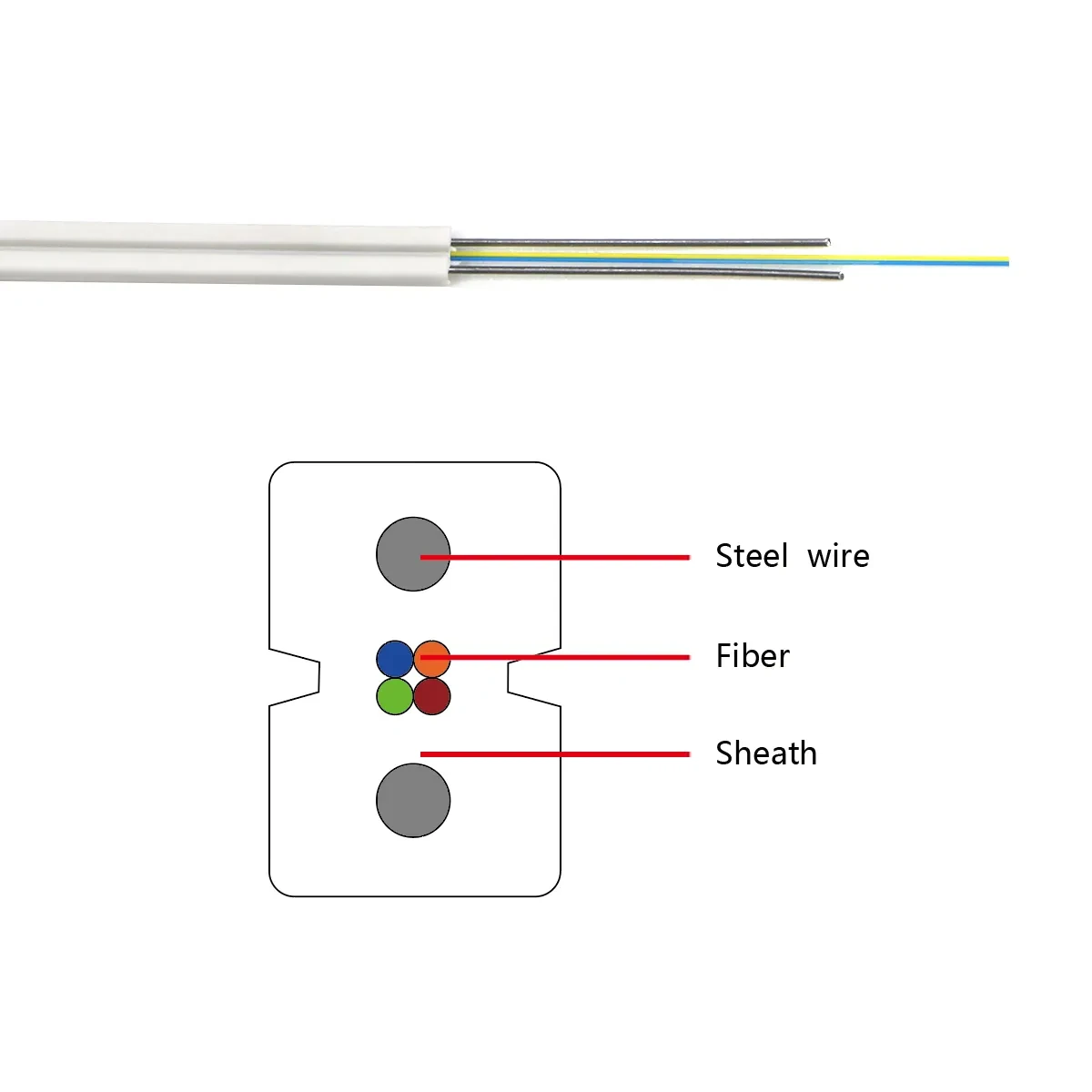

Flat indoor FTTH drop cable with FRP or steel wire strength members and LSZH flame-retardant sheath. 1–4 cores, G.657A bend-insensitive fiber. Designed for last-mile indoor routing in apartments and office buildings.
| Cable Type | GJXH (Indoor Butterfly Drop Cable) |
| Fiber Count | 1, 2, 4 cores |
| Fiber Type | G.657A1 / G.657A2 single-mode |
| Installation | Indoor routing, baseboard, under-carpet |
| Cable Diameter | (1.2×3.6)×0.1mm |
| Weight | ~9–10.5 kg/km |
Specifications
| CABLE TYPE | GJXH (Indoor Butterfly Drop Cable) |
| FIBER COUNT | 1, 2, 4 cores |
| FIBER TYPE | G.657A1 / G.657A2 single-mode |
| INSTALLATION | Indoor routing, baseboard, under-carpet |
| CABLE DIAMETER | (1.2×3.6)×0.1mm |
| WEIGHT | ~9–10.5 kg/km |
| TENSILE STRENGTH | 40/90N (long/short-term) |
| CRUSH RESISTANCE | 500/1000 N/100mm |
| BENDING RADIUS | 150/300mm (static/dynamic) |
| STRENGTH MEMBER | Steel wire or FRP |
| JACKET MATERIAL | LSZH (Low Smoke Zero Halogen) |
| COLOR | White |
| OPERATING TEMPERATURE | -20°C to +60°C |
| STANDARDS | YD/T 1997.1 · ICEA-596 · GR-409 · IEC 60794 |
