GJYXCH Self-Supporting Indoor/Outdoor FTTH Drop Cable
Self-supporting indoor/outdoor FTTH drop cable with steel wire messenger for aerial span installation. 1–4 cores, G.657A bend-insensitive fiber. UV-resistant PE jacket for outdoor deployment with LSZH indoor transition.
| Cable Type | GJYXCH (Self-Supporting Indoor/Outdoor Drop Cable) |
| Fiber Count | 1, 2, 4 cores |
| Fiber Type | G.652D / G.657A / G.657A1 / G.657A2 single-mode |
| Installation | Aerial self-supporting, indoor/outdoor transition |
| Cable Diameter | (1.2×6.0)×(1.1×5.6)mm |
| Weight | ~21 kg/km |
Specifications
| CABLE TYPE | GJYXCH (Self-Supporting Indoor/Outdoor Drop Cable) |
| FIBER COUNT | 1, 2, 4 cores |
| FIBER TYPE | G.652D / G.657A / G.657A1 / G.657A2 single-mode |
| INSTALLATION | Aerial self-supporting, indoor/outdoor transition |
| CABLE DIAMETER | (1.2×6.0)×(1.1×5.6)mm |
| WEIGHT | ~21 kg/km |
| TENSILE STRENGTH | 300/600N (long/short-term) |
| CRUSH RESISTANCE | 1000/2000 N/100mm |
| BENDING RADIUS | 150/300mm (static/dynamic) |

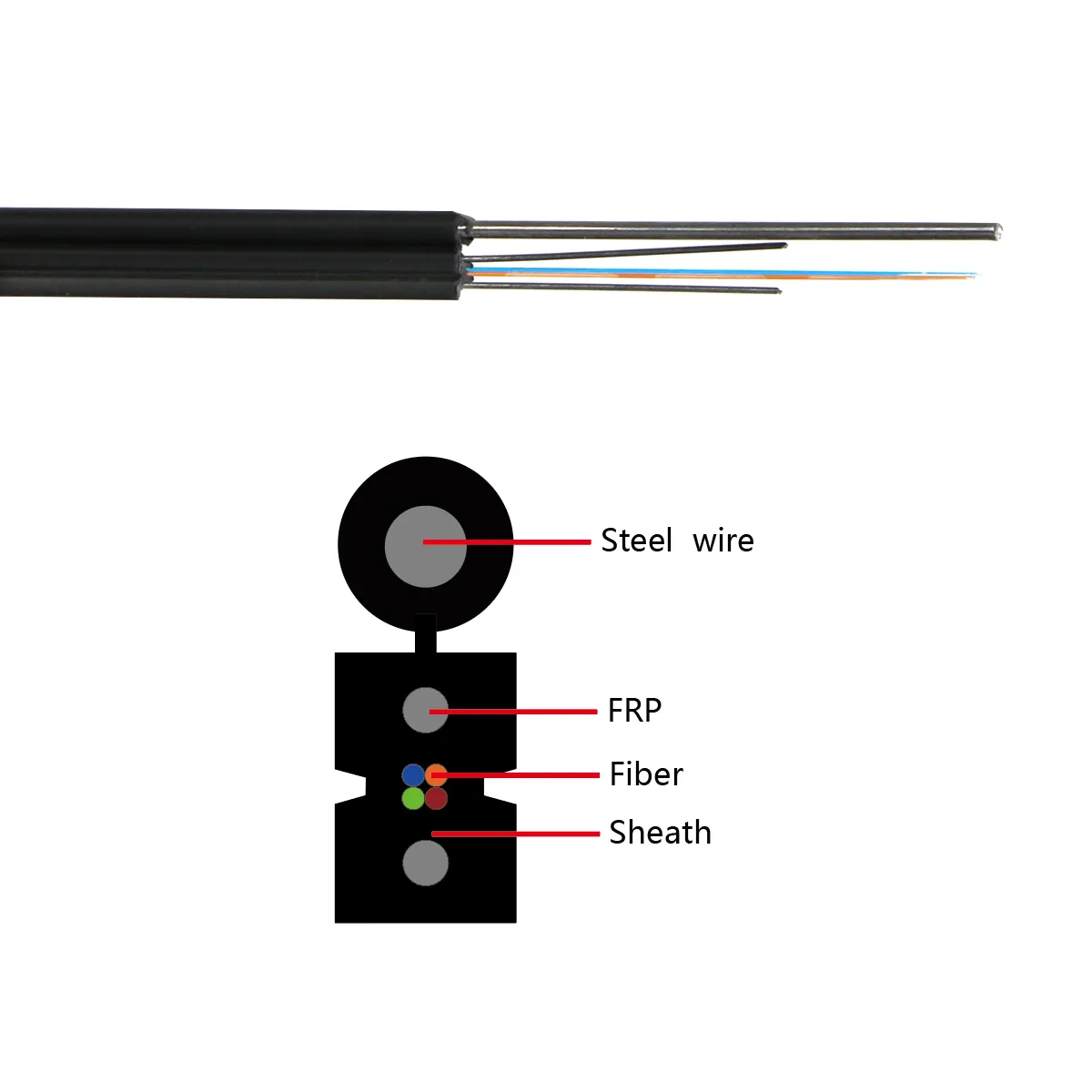

| STRENGTH MEMBER | Steel wire / FRP + steel wire messenger |
| JACKET MATERIAL | LSZH / PE (UV resistant) |
| COLOR | Black, White |
| OPERATING TEMPERATURE | -40°C to +60°C |
| STANDARDS | YD/T 1997.1 · ICEA-596 · GR-409 · IEC 60794 |
