Bundle Fiber Optic Cable — Multi-Core Indoor MPC

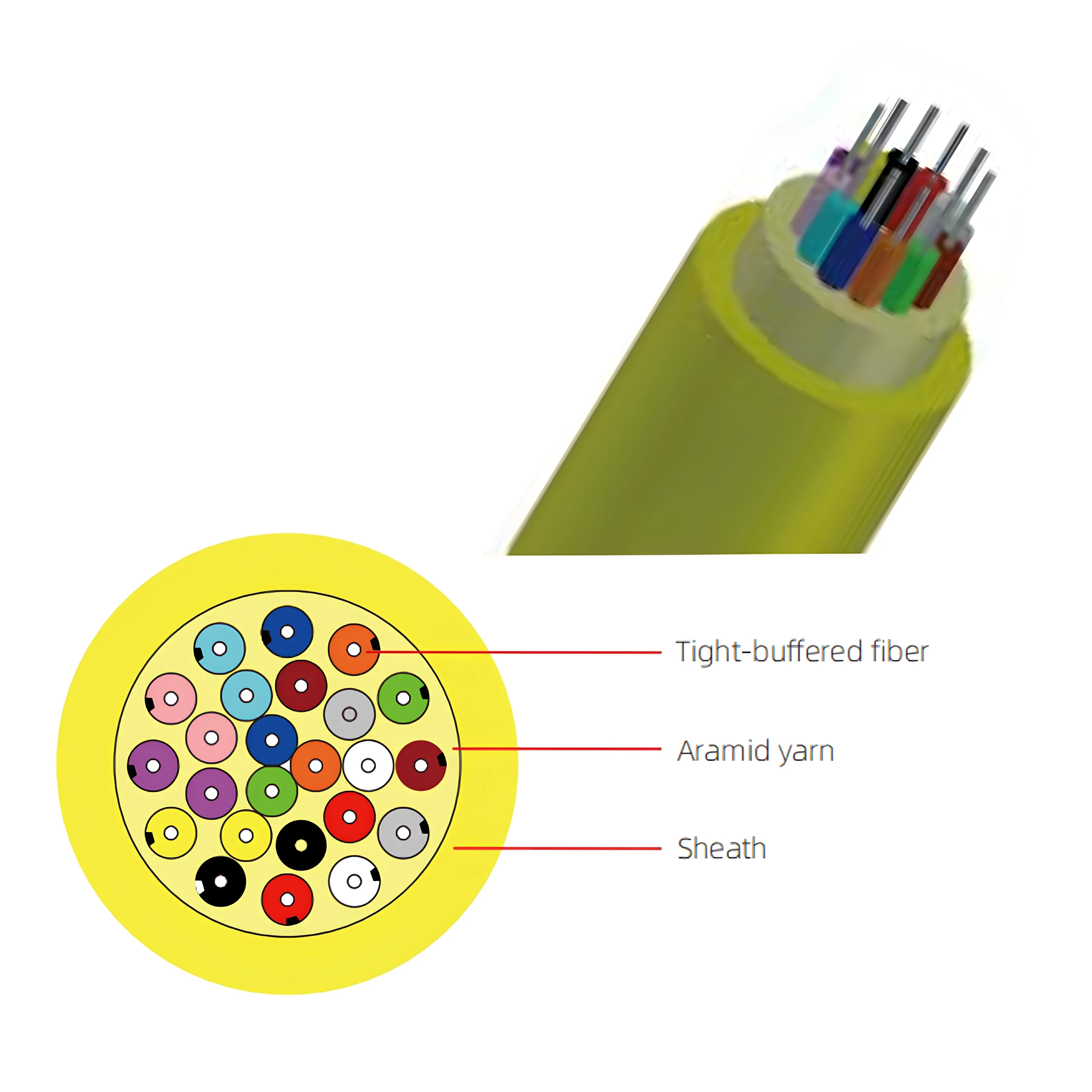

Multi-core bundle (MPC) fiber cable with multiple 900um tight-buffered fibers, aramid yarn reinforcement, and PVC or LSZH outer jacket. Available in 2-144 cores for indoor distribution, backbone cabling, and patch panel pigtailing.
| Cable Type | MPC (Multi-Core Bundle) |
| Fiber Count | 2-144 cores |
| Fiber Type | G.652D SM 9/125 / OM1-OM4 MM 50/125 |
| Sub-Unit Diameter | 900 +/- 50um tight buffer |
| Cable Diameter | 4.8mm (4-core) to 24.9mm (144-core) |
| Jacket Material | PVC or LSZH |
Specifications
| CABLE TYPE | MPC (Multi-Core Bundle) |
| FIBER COUNT | 2–144 cores |
| FIBER TYPE | G.652D SM 9/125 / OM1-OM4 MM 50/125 |
| SUB-UNIT DIAMETER | 900 +/- 50um tight buffer |
| CABLE DIAMETER | 4.8mm (4-core) to 24.9mm (144-core) |
| JACKET MATERIAL | PVC or LSZH |
| STRENGTH MEMBER | Aramid yarn (Kevlar) |
| WEIGHT | 16–493 kg/km |
| TENSILE STRENGTH | 130–480N (short-term) |
| CRUSH RESISTANCE | 800–1000N/100mm |
| BEND RADIUS | 100mm (static) / 200mm (dynamic) |
| OPERATING TEMPERATURE | -20C to +60C |
| STANDARDS | YD/T 1258.2 · ICEA-596 · GR-409 · IEC 60794-2 |
