Waterproof Tail Fiber Optic Cable — IP67 GJA

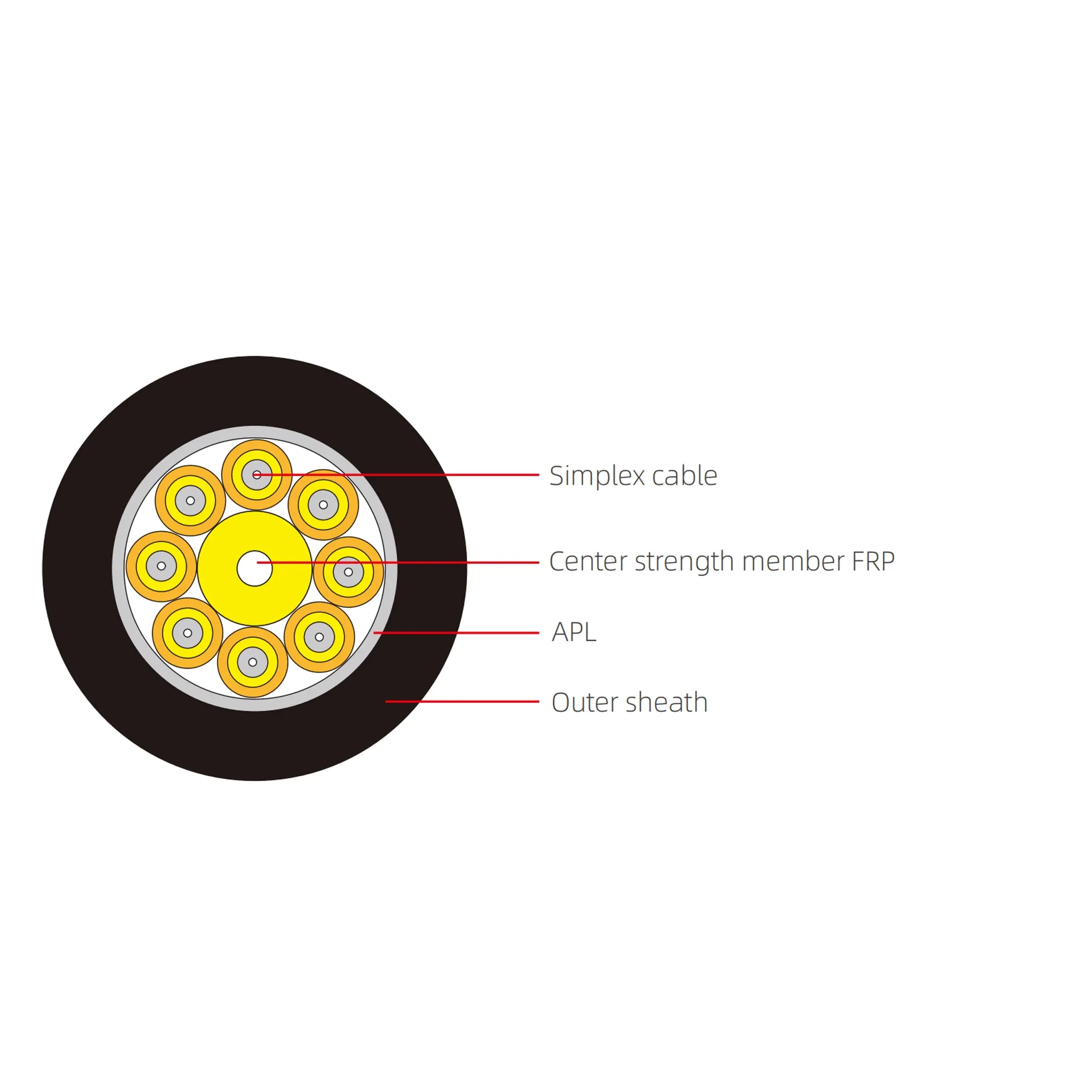

IP67-rated waterproof tail fiber optic cable (GJA) with FRP central strength member, APL moisture barrier, and PE outer sheath. 4-12 cores for outdoor equipment connections. Pre-terminated with sealed connectors for reliable outdoor-to-indoor transitions.
| Cable Type | GJA (Waterproof Tail Fiber Optic Cable) |
| Fiber Count | 4-12 cores |
| Fiber Type | G.652D SM 9/125 |
| Sub-Unit | 900um tight buffer + aramid |
| Central Strength Member | FRP (non-metallic) |
| Moisture Barrier | Aluminum polyethylene laminate (APL) |
Specifications
| CABLE TYPE | GJA (Waterproof Tail Fiber Optic Cable) |
| FIBER COUNT | 4–12 cores |
| FIBER TYPE | G.652D SM 9/125 |
| SUB-UNIT | 900um tight buffer + aramid |
| CENTRAL STRENGTH MEMBER | FRP (non-metallic) |
| MOISTURE BARRIER | Aluminum polyethylene laminate (APL) |
| CABLE DIAMETER | 9.1mm (4-core) to 11.4mm (12-core) |
| JACKET MATERIAL | PE outer sheath |
| IP RATING | IP67 |
| WEIGHT | 58–155 kg/km |
| TENSILE STRENGTH | 150–200N (short-term), 400–800N (long-term) |
| CRUSH RESISTANCE | 300–1000N/100mm |
| BEND RADIUS | 100mm (static) / 200mm (dynamic) |
| OPERATING TEMPERATURE | -20C to +60C |
| STANDARDS | YD/T 1258.4 · ICEA-596 · GR-409 · IEC 60794 |
