Access Fiber Optic Cable — ABC-I Indoor

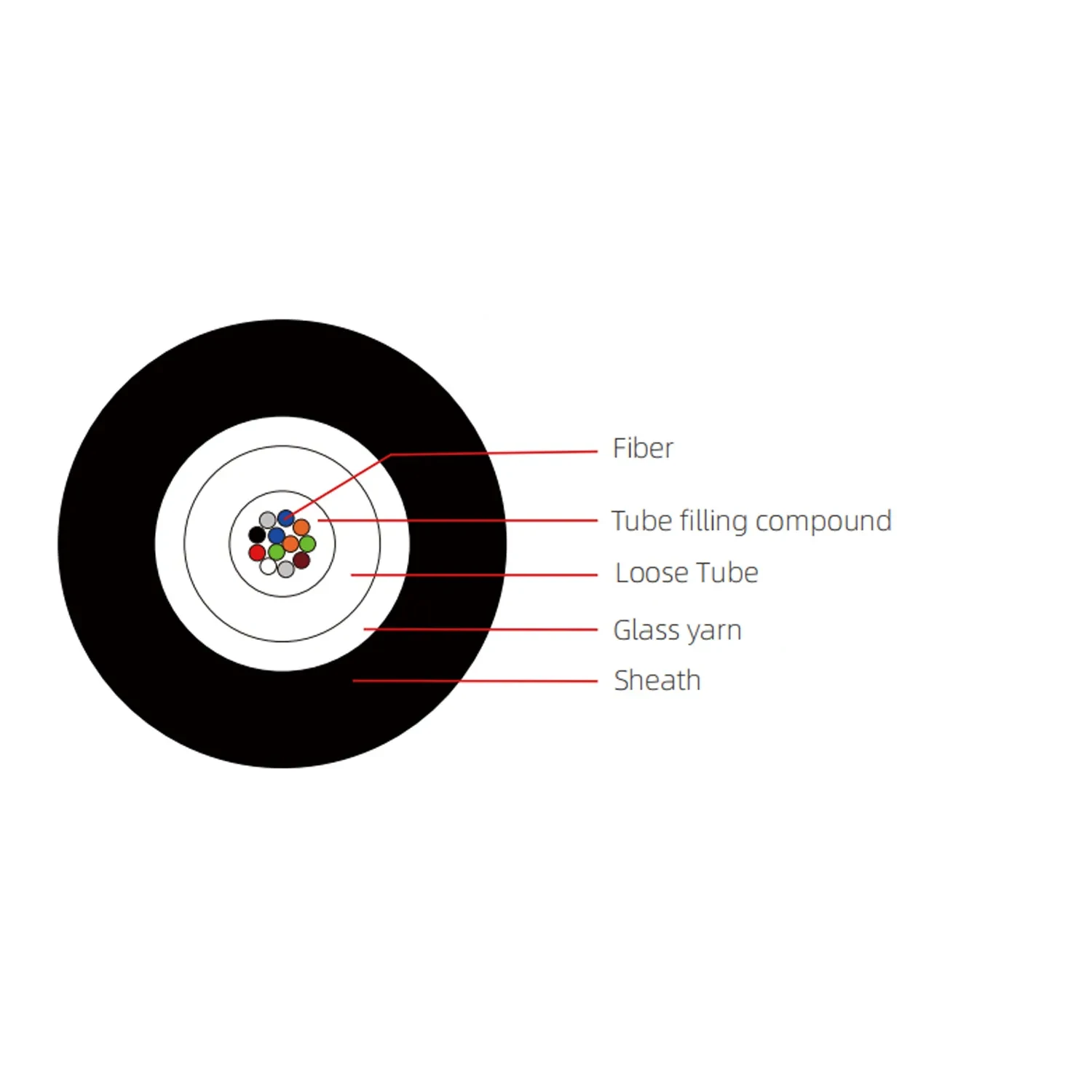

ABC-I access fiber optic cable for building entry and indoor backbone. 250um fibers in loose tube with waterproof compound, glass fiber reinforced elements, and LSZH outer sheath. 2-24 cores with small diameter and light weight for easy routing.
| Cable Type | ABC-I (Access Fiber Optic Cable) |
| Fiber Count | 2-24 cores |
| Fiber Type | G.652D / G.657A SM 9/125 |
| Fiber Format | 250um in loose tube with waterproof compound |
| Cable Diameter | 6.8mm (2-12 core) / 7.8mm (14-24 core) |
| Jacket Material | LSZH |
Specifications
| CABLE TYPE | ABC-I (Access Fiber Optic Cable) |
| FIBER COUNT | 2–24 cores |
| FIBER TYPE | G.652D / G.657A SM 9/125 |
| FIBER FORMAT | 250um in loose tube with waterproof compound |
| CABLE DIAMETER | 6.8mm (2-12 core) / 7.8mm (14-24 core) |
| JACKET MATERIAL | LSZH |
| STRENGTH MEMBER | Glass fiber reinforced elements (GFRP) |
| WEIGHT | 35–65 kg/km |
| TENSILE STRENGTH | 400N (short-term), 1000N (long-term) |
| CRUSH RESISTANCE | 500–900N/100mm (short-term) |
| BEND RADIUS | 100mm (static) / 150–200mm (dynamic) |
| OPERATING TEMPERATURE | -20C to +60C |
| STANDARDS | YD/T 1997.1 · ICEA-596 · GR-409 · IEC 60794 |
