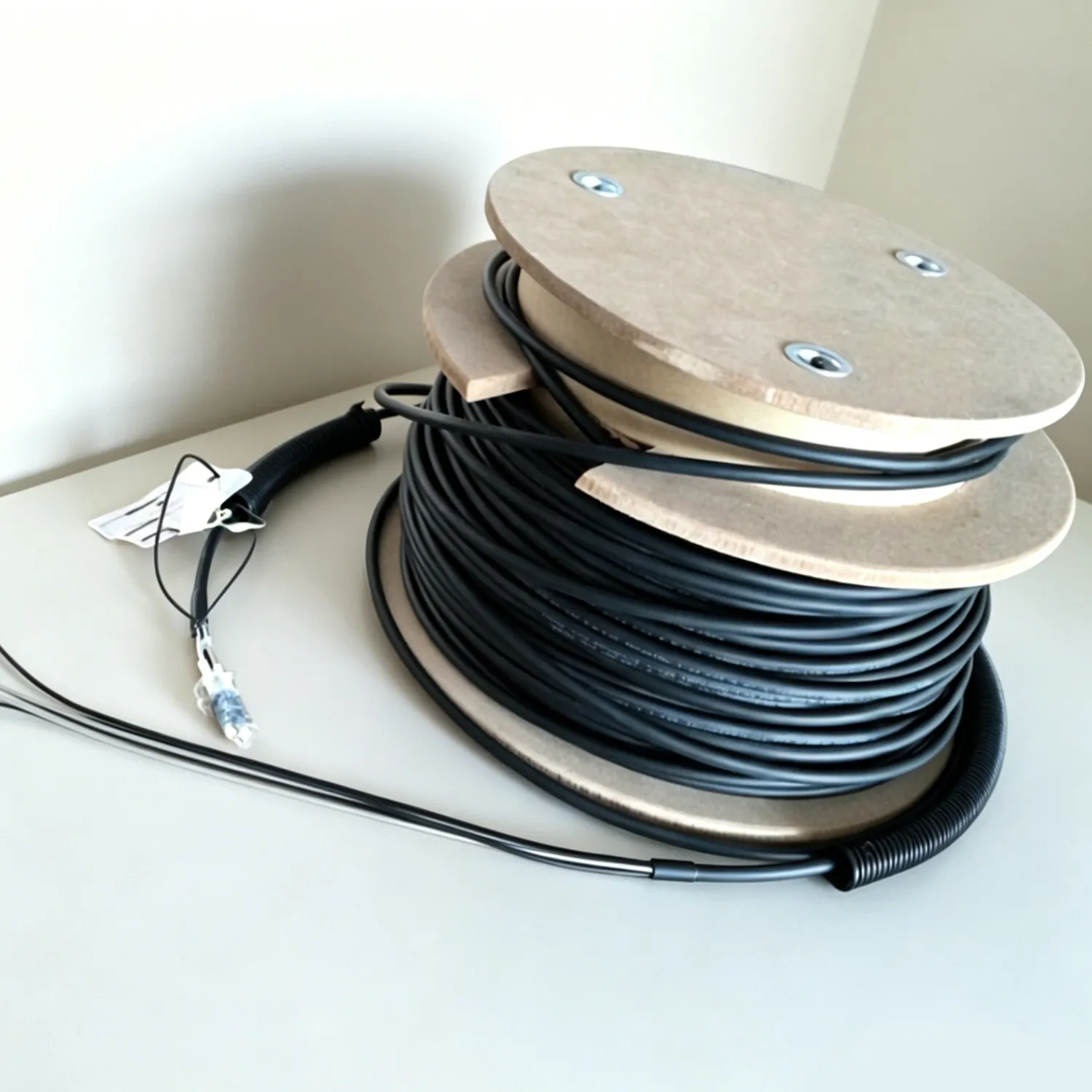

FTTA Fiber Optic Cable — GYFJH Antenna Feeder
FTTA (Fiber to the Antenna) fiber cable (GYFJH) designed for 4G/5G base station connections. 2-4 core flame-retardant simplex sub-units with LSZH sheath, UV resistant and outdoor rated. Available pre-terminated with LC/SC connectors for rapid tower deployment.
| Cable Type | GYFJH (FTTA Base Station Cable) |
| Fiber Count | 2-4 cores |
| Fiber Type | G.652D / G.657A SM 9/125 |
| Sub-Unit | 900um tight buffer + aramid + LSZH sheath |
| Cable Diameter | 7.8mm |
| Jacket Material | LSZH (UV resistant) |
Specifications
| CABLE TYPE | GYFJH (FTTA Base Station Cable) |
| FIBER COUNT | 2–4 cores |
| FIBER TYPE | G.652D / G.657A SM 9/125 |
| SUB-UNIT | 900um tight buffer + aramid + LSZH sheath |
| CABLE DIAMETER | 7.8mm |
| JACKET MATERIAL | LSZH (UV resistant) |
| STRENGTH MEMBER | Aramid yarn (Kevlar) |
| WEIGHT | 47 kg/km |
| TENSILE STRENGTH | 200N (short-term), 400N (long-term) |
| CRUSH RESISTANCE | 1000–2200N/100mm |
| BEND RADIUS | 100mm (static) / 200mm (dynamic) |
| OPERATING TEMPERATURE | -40C to +70C |
| UV RESISTANCE | UV stabilized for outdoor exposure |
| STANDARDS | YD/T 1258.2 · ICEA-596 · GR-409 · IEC 60794-2 |
