Armored Indoor Fiber Cable — Spiral Steel GJSFJV

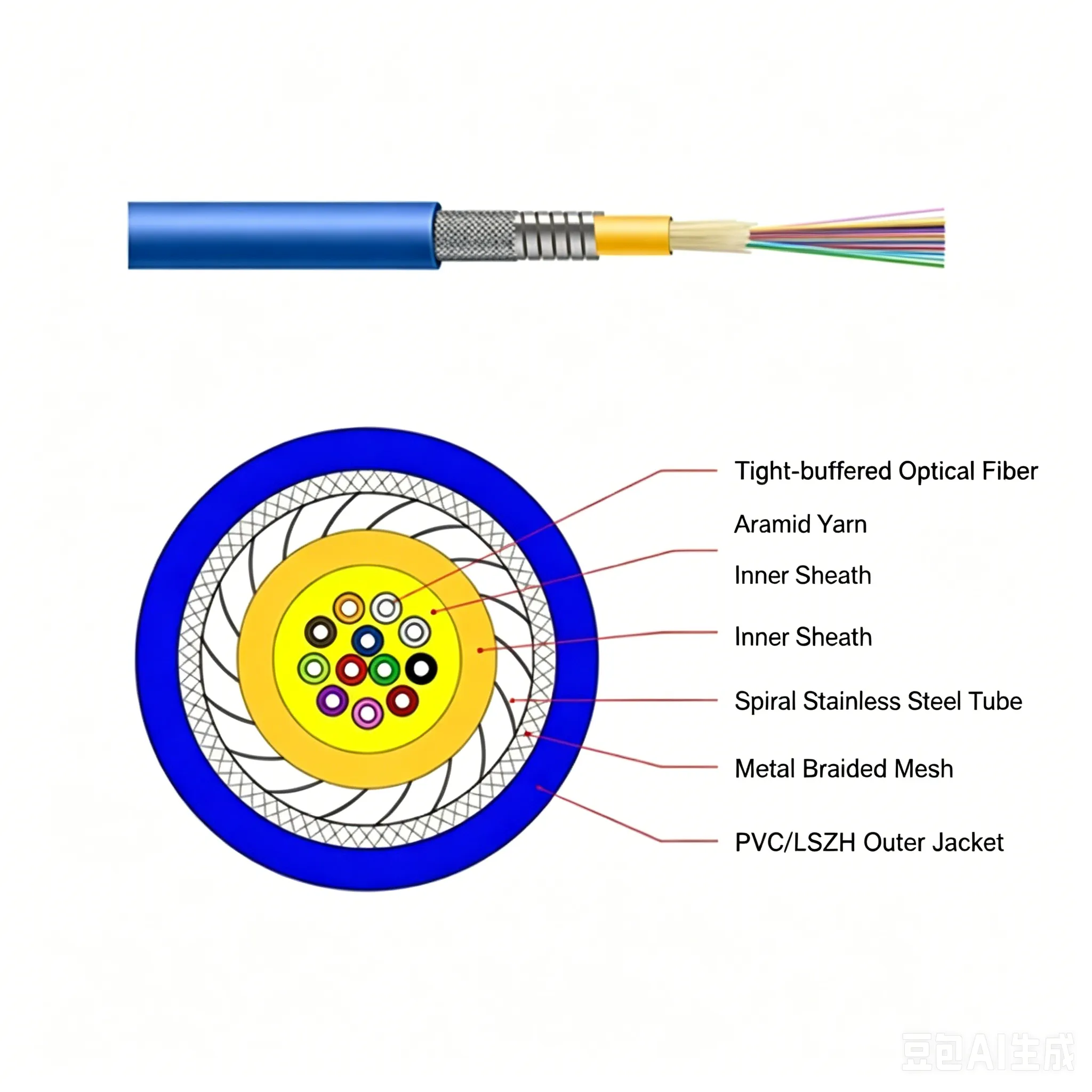

Indoor/outdoor spiral braided armored fiber cable (GJSFJV) with flat stainless steel wire armor, aramid yarn, and stainless steel braid for crush-proof protection. 2-4 cores with PVC or LSZH outer sheath. For harsh indoor environments, rodent-prone areas, and industrial facilities.
| Cable Type | GJSFJV (Spiral Braided Armored) |
| Fiber Count | 2-4 cores |
| Fiber Type | G.652D SM 9/125 / OM1-OM4 MM 50/125 |
| Tight Buffer Diameter | 900um or 600um |
| Armor | Flat stainless steel wire + stainless steel braid |
| Cable Diameter | 3.2mm (indoor) / 5.1mm (indoor/outdoor) |
Specifications
| CABLE TYPE | GJSFJV (Spiral Braided Armored) |
| FIBER COUNT | 2–4 cores |
| FIBER TYPE | G.652D SM 9/125 / OM1-OM4 MM 50/125 |
| TIGHT BUFFER DIAMETER | 900um or 600um |
| ARMOR | Flat stainless steel wire + stainless steel braid |
| CABLE DIAMETER | 3.2mm (indoor) / 5.1mm (indoor/outdoor) |
| JACKET MATERIAL | PVC or LSZH |
| STRENGTH MEMBER | Aramid yarn (Kevlar) |
| WEIGHT | 18–28 kg/km |
| TENSILE STRENGTH | 300N (short-term), 600–1600N (long-term) |
| CRUSH RESISTANCE | 1000–3000N/100mm |
| BEND RADIUS | 100mm (static) / 200–800mm (dynamic) |
| OPERATING TEMPERATURE | -20C to +60C |
| STANDARDS | YD/T 2289.1 · ICEA-596 · GR-409 · IEC 60794 |
