GJPFJH Distribution Fiber Optic Cable — Indoor Riser

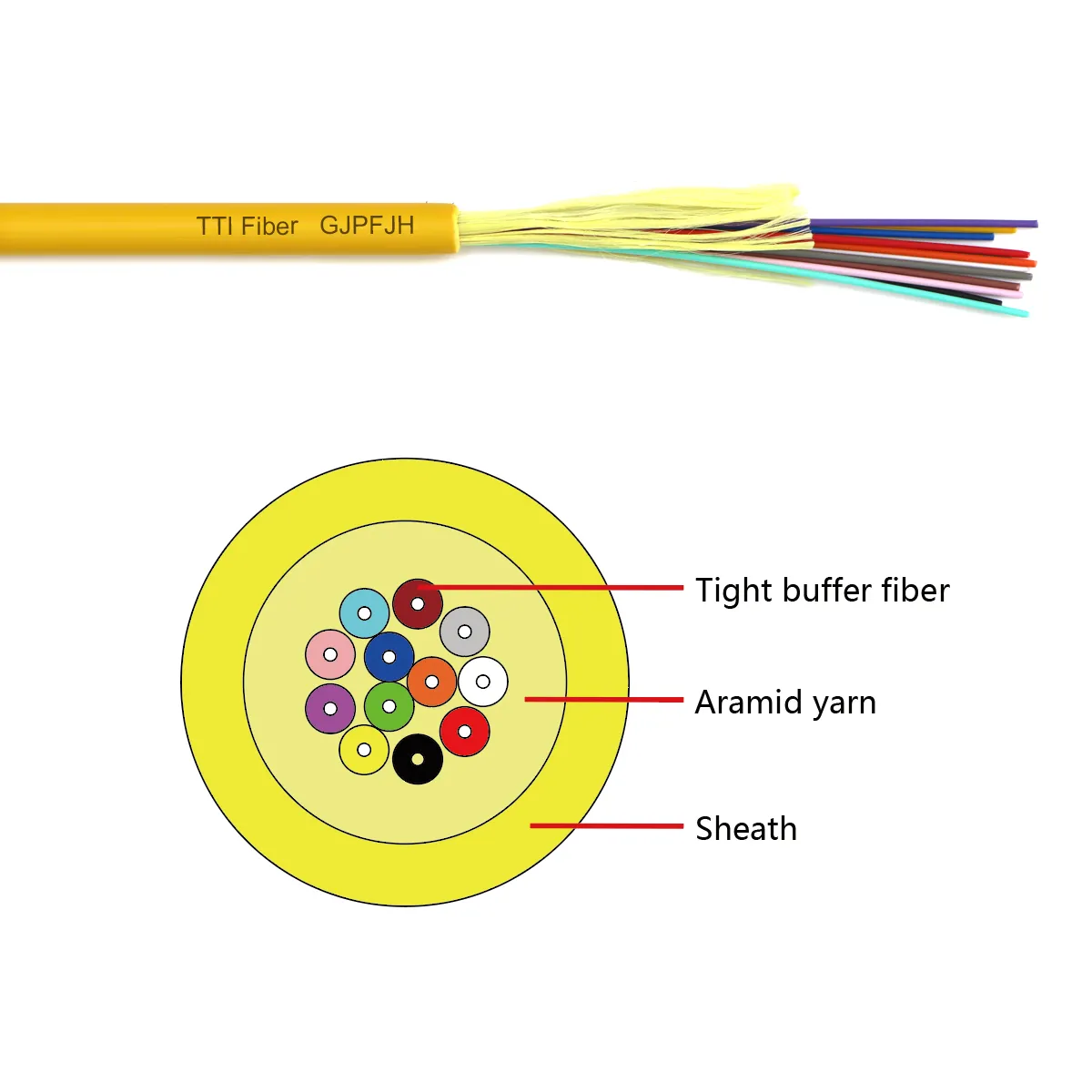

Indoor distribution fiber cable with multiple 900um tight-buffered sub-units in a common outer jacket. 6-96 cores with riser (OFNR) and plenum (OFNP) rated options. Compact design for building backbone and horizontal distribution cabling.
| Cable Type | GJPFJH Indoor Distribution Cable |
| Fiber Count | 6-96 cores |
| Fiber Type | G.652D SM 9/125 / OM1-OM4 MM 50/125 |
| Sub-Unit Diameter | 900um tight buffer |
| Cable Diameter | 5.0mm (6-core) to 18.0mm (96-core) |
| Jacket Material | PVC or LSZH |
Specifications
| CABLE TYPE | GJPFJH Indoor Distribution Cable |
| FIBER COUNT | 6–96 cores |
| FIBER TYPE | G.652D SM 9/125 / OM1-OM4 MM 50/125 |
| SUB-UNIT DIAMETER | 900um tight buffer |
| CABLE DIAMETER | 5.0mm (6-core) to 18.0mm (96-core) |
| JACKET MATERIAL | PVC or LSZH |
| FIRE RATING | OFNR (riser) / OFNP (plenum) |
| STRENGTH MEMBER | Aramid yarn / FRP central member |
| WEIGHT | 20–250 kg/km |
| TENSILE STRENGTH | 130–450N (short-term) |
| CRUSH RESISTANCE | 300–1000N/100mm |
| BEND RADIUS | 100mm (static) / 200mm (dynamic) |
| OPERATING TEMPERATURE | -20C to +60C |
| STANDARDS | YD/T 1258.4 · ICEA-596 · GR-409 · IEC 60794-2-10/11 · TIA-568 |
