CAT7 Shielded SSTP Patch Cable
Our factory Jinhua Guanyang is a professional integrated wiring manufacturer, providing a full range of high-quality copper structure wiring products. Our CAT7 Shielded SSTP Patch Cable is the most cost-effective solution in integrated cabling, especially for building data center and computer room cabling. It is connected with RJ45 crystal connectors at both ends, and has T568A and T568B wiring inside, which fully complies with ANSI/TIA-568-C.2. It provide high transfer rates and excellent electrical performance in gigabit data center applications, maximizing our work efficiency
Product type | Cat7 |
Reference Standard | ISO/IEC11801 |
Conductors materials | Bare copper |
Wire Gauge(AWG) | 26(7/0.16mm) |
Insulation Material | FOAM PE |
Sheath materials | PVC (Complies RoHS), CMX |
Mechanical Characteristics:
Outer Jacket Tensile Strength (Mpa) : ≥13.5 Outer Jacket Elongation (%) : ≥150 Aging Period (℃×hrs) : 100℃×24h×7d After Aging Tensile Strength (Mpa) : ≥12.5 After Aging Elongation (%) : ≥125 Cold Bend (-20±2℃×4h) : No Visible Cracks Min. Bend Radius (cm) : 4.34 ± 0.2
| Electrical Characteristics:
Data Rate Support : 10GBase-T Standard Bandwidth (MHz) : 600 Max. DC Conductor Resistance Unbalance (%) : 5.0 1-600MHz, Delay Skew (ns/100m) : ≤45 Max. Conductor Resistance 20℃ (Ω/1km) : 145 |
Features
The Cat 7 (SSTP) Shielded Patch Cable is designed with a protective PVC CMX cover on the outside and pure bare copper strands on the inside to ensure stable data transmission. It has the capacity to support a communication rate of 600MHz, which makes it suitable for 10GBase-T Ethernet.

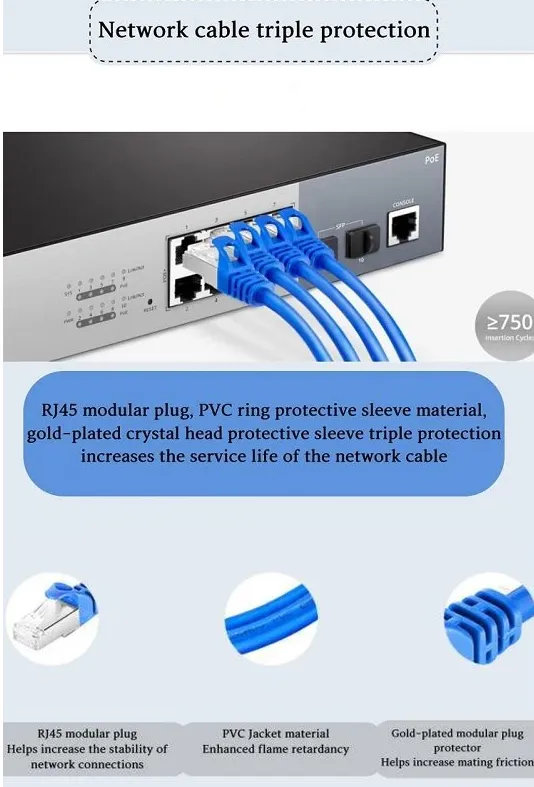

The cable is made of 26AWG 4-pair precision twisted pair to provide excellent resistance to alien crosstalk and signal interference. The RJ45 plug comes with 50-micron gold-plated connectors, which ensure reliable and high-speed connectivity.
This cable complies with several standards such as RoHS, CE, and others, ensuring its quality and safety. It comes in 11 different cable colors with various RAL and Pantone color codes, providing you with flexibility in choosing the cable that suits their needs. Additionally, a Fluke test report is available in linkware format for you to verify the cable's performance.

OEM&ODM
As a leading OEM factory in the structured cabling industry, we have amassed extensive experience over the years. We have continuously innovated and developed our operations, transitioning into an ODM factory that offers customers not only high-quality products, but also unique concepts, effective problem-solving strategies, and innovative designs. Our primary focus is to provide our customers with services that meet and exceed their expectations, ensuring their complete satisfaction with our products and services.

Shipment

Application
CAT7 Shielded SSTP Patch Cable is a high-performance Ethernet cable that supports up to 600MHz cable speed, making it an ideal choice for any 10GBase-T Ethernet network. This cable is specifically designed to meet the demands of data centers and so on, providing reliable connectivity and exceptional performance.
With its advanced shielding technology, this cable is perfect for use in environments where electromagnetic interference (EMI) and radio frequency interference (RFI) are common, ensuring stable and uninterrupted network connections. It is an excellent choice for switches, servers, patch panels, and other equipment, providing a high-speed and reliable connection for data transfer.
This cable is widely used in various industries, such as telecommunications, IT, and networking. It is commonly used in data centers, server rooms, and other critical networking environments where high-speed connectivity and data transmission are essential. Overall, the CAT7 Shielded SSTP Patch Cable is an excellent choice for anyone looking for reliable, high-performance Ethernet cabling solutions.
