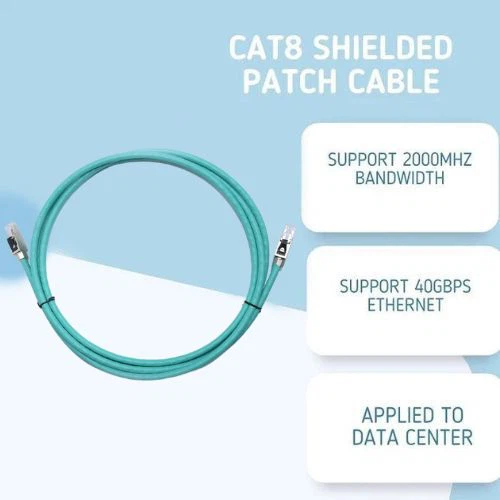

Cat8 S/FTP Ethernet Patch Cord Max Speed

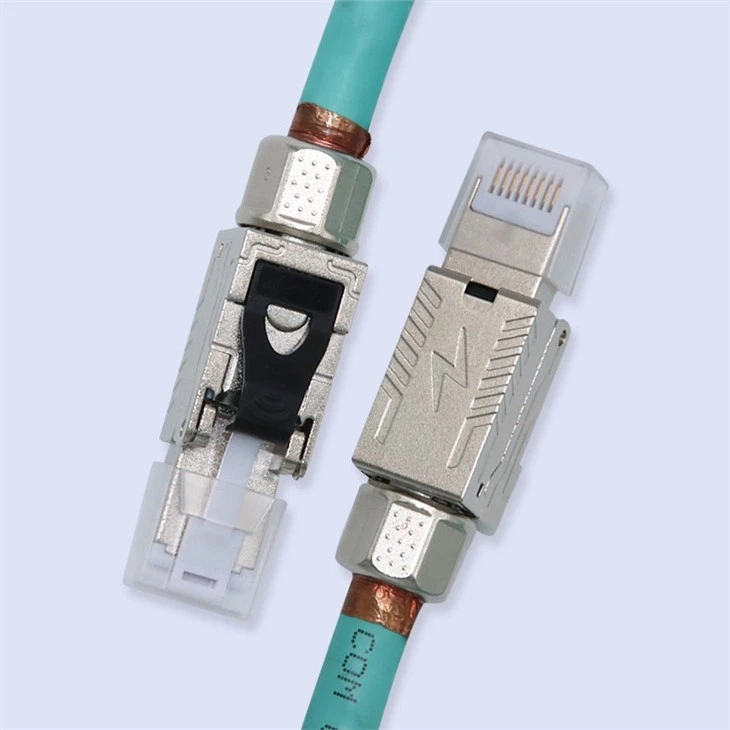

The Cat8 S/FTP Ethernet patch cord was developed in 2017. It has two types: Cat.8.1 and Cat.8.2. The Cat.8.1 has the frequency range of 1300MHzand supports the application of 25G Base-T. For the connector, it will use RJ45 and compatible with female connector and related equipments. Cat.8.2 may use the other design which similar to GG45, supporting the application of 40G Base-T.
Cat8 S/FTP Ethernet Patch Cord is a top-of-the-line networking cable that delivers blazing-fast data transfer speeds and unparalleled performance. With its advanced shielding technology and superior build quality, this Cat8 patch cord is designed to meet the demands of modern high-speed networks.
Featuring an S/FTP (Screened/Foiled Twisted Pair) design, this patch cord offers maximum protection against electromagnetic interference (EMI) and other external factors that can degrade signal quality. It is built with high-quality copper conductors that provide stable and reliable data transmission, ensuring that your network operates at peak performance levels.
The Cat8 S/FTP Ethernet Patch Cord is also backward compatible with earlier versions of Ethernet, so you can seamlessly integrate it into your existing network infrastructure. With a maximum data transfer speed of up to 40 Gbps, it is perfect for high-bandwidth applications such as data centers, cloud computing, and high-performance computing.
Whether you are building a new network or upgrading an existing one, the Cat8 S/FTP Ethernet Patch Cord is the perfect choice for achieving lightning-fast data transfer speeds and reliable network performance. So why wait? Get yours today and experience the power of the latest networking technology!
Cable standard
The Cat8 S/FTP Ethernet Patch Cord Max Speed was designed primarily to support the IEEE 802.3bq 25/40GBase-T standard. It is also the latest added among ANSI-TIA-568.2-D since 2018. Cat8 S/FTP ethernet patch cord is the future copper structured cabling solution which meets the transmission frequency 2000MHz. ANSI/ICEA S-118-746 (draft) Standard for Category 8, 100 Ohm Indoor Cables for Use In LAN Communication Wiring Systems. To achieve so high frequency transmission, it will be a must to reduce the Insertion loss, Next and Return loss will be a must and both of the connector designs will expect to have the compensation devices like one PCB board to make the performance very good.
Category 8 channel
The Cat8 S/FTP Ethernet Patch Cord Max Speed channel is a two-connector model, using foiled twisted-pair cable with a maximum permanent link length of 24 meters (79 feet).
The following is an excerpt from ANSI/TIA-568.2-D for Cat.8 modular cord cable:
Testing
Ethernet cable cat8 is tested with Flue DSX-8000 and can pass channel testing. DSX-8000 is firstly used for channel testing. The testing permanent link not exceed 24M, and the total Channel not exceed 30M.
Cable Gauge
Horizontal and backbone cable will consist of four balanced twisted pairs with conductors that can range from 22 AWG to 24 AWG. Cord cable consists of four balanced twisted pairs with conductors that range from 22 AWG to 26 AWG.
OEM&ODM
We offer customized packaging and shipping options upon request.
