Cat 6 Patch Panel 24 Port With LED
Experience excellence with our Cat 6 Patch Panel 24 Port With LED. Surpassing standards, it ensures seamless connectivity and easy port location. The 36-pair wire setup enables intelligent address searching for precise port identification. Designed for 19" racks, its durable steel and dust-proof design ensure longevity. Front LEDs offer clarity and reliability, even if damaged. Installation and maintenance are effortless with the snap-in design. Elevate your network management with LED innovation.
Our Cat 6 Patch Panel 24 Port With LED – a testament to our expertise as a premier structured cabling solutions provider.

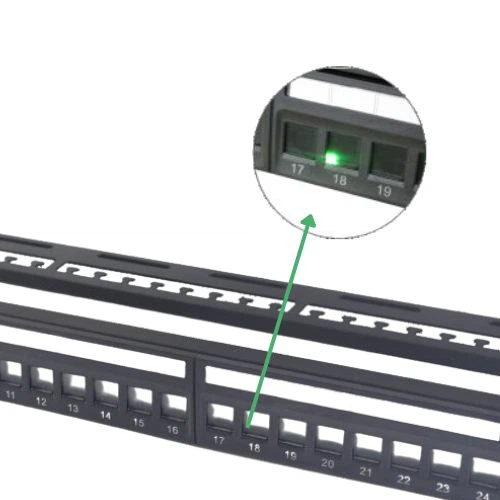

The front LED illumination takes visibility to a new level. Designed with reliability and longevity in mind, our LED lamps incorporate circuit protection, ensuring consistent and secure operation over time. Even in the event of LED damage, the core functionality of the product remains unhampered, assuring uninterrupted performance.
Built upon the foundation of the cat6 unshielded transmission standard, our patch panel simplifies the process of port identification, offering speed and ease of use. Employing a robust 36-pair wire configuration as a physical channel, intelligent address searching becomes a reality, enhancing efficiency.
This solution seamlessly integrates into your network toolkit, compatible with widely-used testers such as Fluke and On-off testers. Locating specific ports becomes effortless, streamlining maintenance and troubleshooting routines.
Outperforming the ANSI/TIA 568-C2 and lEC11801 Category 6 standards. Elegantly designed for 19" rack-mounted systems, our patch panel boasts a durable cold rolling steel construction, a testament to our commitment to superior quality. The modular design, accompanied by a dustproof shutter, underscores our attention to detail, safeguarding your network against contaminants.
Installation, termination, and maintenance are a breeze thanks to our snap-in design and removable keystone jacks. This intuitive approach reduces downtime and effort, making network management seamless.
Embracing the spirit of efficiency, our Cat 6 Patch Panel features comprehensive and clear marking, facilitating swift construction and management tasks. Elevate your network experience with a product that delivers unparalleled performance, convenience, and quality – a true embodiment of innovation.

Exceeding the benchmarks set by the ANSI/TIA-568.2-D and ISO/IEC 11801 Category 6 standards, our Cat 6 Patch Panel ensures superior performance and reliability for your network infrastructure. Built on the foundation of the Cat 6 unshielded transmission standard, this patch panel guarantees seamless connectivity and efficient data transmission.
One of the standout features is its intuitive design, making it quick and hassle-free to locate ports. Utilizing a reliable 36-pair wire configuration as the physical channel, our intelligent address searching capability ensures accurate and efficient port identification. Compatibility with common testers such as Fluke and On-off testers streamlines maintenance and troubleshooting procedures.

Crafted for seamless integration within 19" rack-mounted setups, our patch panel boasts a robust cold-rolled steel construction, ensuring not only durability but also elevated product quality that meets the highest standards. This commitment to quality ensures a reliable foundation for your network infrastructure.
Embracing a modular design philosophy, this patch panel features a dust-proof shutter at its forefront, acting as a barrier against potential particulate contaminants. This proactive measure ensures sustained performance and longevity, even in challenging environments.
Installing and maintaining your network has never been easier thanks to the ingenious snap-in design and removable keystone jacks. These features streamline the installation and termination processes, significantly reducing downtime and effort.
Properties
Our Cat 6 Patch Panel 24 Port With LED boasts remarkable electrical and physical attributes. With a working voltage of 125V and insulation resistance up to 750V, it ensures reliable performance. Rigorously tested and proven with a 100% pass rate on FLUKE tests, it guarantees exceptional connectivity.
Physically, it offers ease of use with insertion force not exceeding 20N and withdrawal force not less than 20N. The connector's engagement effect is secure at 50N for 60±5 seconds. It endures up to 750 plug-in cycles for plug and socket connections, and 250 cycles for wire termination.
Designed for diverse environments, it operates seamlessly within a temperature range of -40°C to +70°C. With a humidity tolerance of ≤85% at a temperature of 85°C±3°C, it proves its versatility. Our Cat 6 Patch Panel embodies a commitment to quality, ensuring performance and longevity across various conditions.
Application
The Cat 6 Patch Panel 24 Port With LED serves as a pivotal solution in structured cabling systems, offering a streamlined approach to managing front-end information points. Functioning as a modular device at the distribution end, it plays a vital role in ensuring efficient network organization.
As information cables from the front end enter equipment rooms, the patch panel becomes the initial point of contact. The cables are neatly terminated onto the pane●'s modular units, establishing a structured connection. Subsequently, jumper cables with RJ45 interfaces link the patch panel to the switch.
In essence, the patch panel serves as a central management hub. Without it, direct connection of information points to the switch could lead to significant challenges. Cable issues would necessitate labor-intensive rewiring, while frequent insertions and removals might damage switch ports, causing operational disruptions.
The presence of the patch panel expertly addresses these concerns. It facilitates meticulous cable management, preventing chaotic setups. By simply replacing jumper cables, efficient management is achieved. In summary, the Cat 6 Patch Panel 24 Port With LED revolutionizes network infrastructure management, ensuring reliability, organization, and easy maintenance for a seamless networking experience.
Can I use the Cat 6 Patch Panel with other equipment?
Yes, the Cat 6 Patch Panel is compatible with various network equipment, including switches and routers. Its standard RJ45 interfaces enable seamless integration into a wide range of network setups.
