12 Port Cat6 UTP Patch Panel
12 Port Cat6 UTP Patch Panel meets ANSI/TIA-568.2-D standards, has 12 RJ45 female connectors, unscreened, compatible with Cat6 cables.
IDC connectors are made of phosphor bronze, gold plated to 03U”-50U” as per customer demand.
Sticker color codes follow T568B and T568A wiring standards.
IDC connectors undergo 200x punching, and 750x plug-jack mating and unmating tests for reliable performance.
Zero repetition underscores the reliability and durability of the patch panel, making it an ideal choice for organizing and managing network connections without the concern of recurring issues.
The 12 Port Cat6 UTP Patch Panel is designed to meet ANSI/TIA-568.2-D standards and features 12 female connectors for RJ45 cables. This patch panel is unscreened and compatible with Cat6 cables. The IDC connectors are made of phosphor bronze and can be gold plated with 03U", 6U", 15U", 30U", or 50U", depending on customer specifications.
The sticker color codes on this patch panel follow the T568B and T568A wiring standards. The IDC connectors undergo 200 times punching and 750 times plug-jack mating and unmating tests to ensure reliable and durable performance. With zero repetition, the 12 Port Cat6 UTP Patch Panel is an excellent choice for organizing and managing your network connections.
Features
This product is compliant with ANSI/TIA-568.2-D and ISO11801 standards, as well as FCC part 68 and IEC60603-7 regulations. It is compatible with 22-26AWG stranded or solid wires, and can be wired using either T568B or T568A schemes. The product is designed to work with both 110 and Krone tools, offering versatility in installation. It has an insertion life of 750 mating cycles, ensuring long-lasting and reliable use.
Raw materials
The housing of this product is made of ABS plastic, while the IDC plastic housing is made of PC material. The RJ45 connectors are constructed with phosphor bronze contact material, and can be gold plated with varying thicknesses depending on customer needs.
Packaging
Our company is a leading OEM factory in the structured cabling industry, with a wealth of experience in this field. As we have evolved over time, we have expanded our services to include ODM manufacturing, providing customers with creative concepts, effective problem-solving, and innovative designs that add significant value to their products. We are dedicated to ensuring that our customers receive exceptional service and high-quality products that meet their unique requirements.
Application

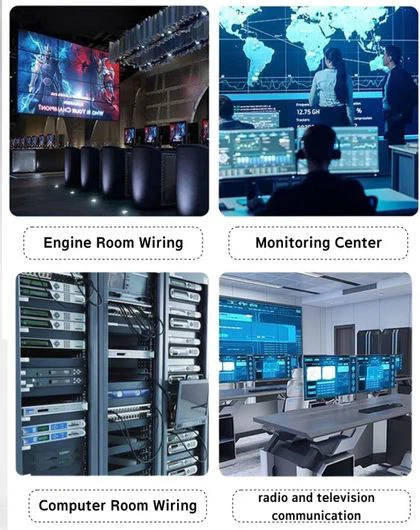

Compatible with a variety of standard cabinets, racks and wall mounts. By installing accessories, the patch panel can meet the needs of UTP, coaxial cable, audio and video. Widely used in computer room wiring, monitoring center, Internet cafe wiring and radio and television communication.
Shipment
Product Name CategoryGYA P/NMOQLead timeTrade TermPaymentPatch panelCat6JPC6U97K-12100PCS(Neutral)3-4 weeksFOB Ningbo or ShanghaiT/T, L/C etc.
FAQ
Q: I need to use the T568A wiring scheme. Does this product support it?
A: Yes, this product supports both T568A and T568B wiring schemes.
Q: What is the insertion life of this product?
A: This product has an insertion life of up to 750 mating cycles, making it long-lasting and durable.
