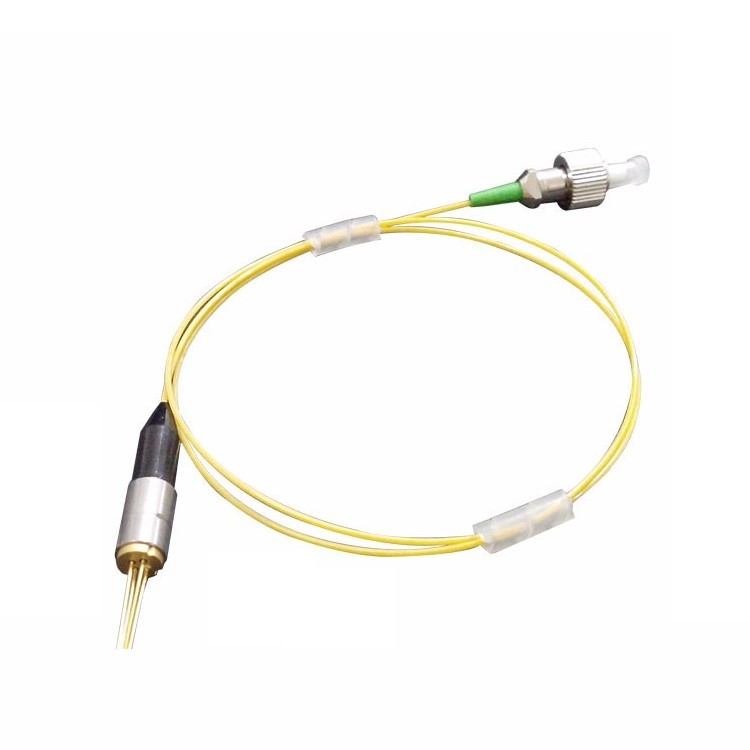

Pigtail PD
Pigtail PD is a device which can transform the optical signal to electronic signal. PD is worked under the effection of backward voltage, when there is no light shine, the reverse current is very low, which called dark current; when there is light shine, the reverse current suddenly increase to several microamp ere, which called light electric current. The reverse current is big while the light power is high. The electric current changes according to the power of light changes, then the light signal can be changed to electrical signal, which called photo-electronic light sensors.
● High responsivity, flat structure of In GaAs PIN detector.
● Low capacitance and low dark current.
● Single-mode fiber coaxial package.
Optical & Electrical Characteristics
Parameter | Symbol | Min. | Typ. | Max. | Unit | Test Condition |
Wavelength Range | λ | 1100 | - | 1650 | nm | - |
Power Range | P | -70 | - | +3 | dBm | V,=5V |
Active Diameter | Ad | 25 | 80 | um | - | |
Dark Current | Id | - | 0.2 | 0.5 | nA | - |
Responsivity | R | - | 0.85 | 0.90 | A/W | λ=1310 nm |
0.90 | 0.95 | λ=1550 nm | ||||
Frequency Bandwidth | BW | 1 | 10000 | MHz | ||
Frequency Response | Fr | - | ±0.5 | - | dB | |
Capacitance | Ct | - | 0.5 | 0.65 | Pf | - |
Response Time | Tr | - | - | 1 | ns | - |

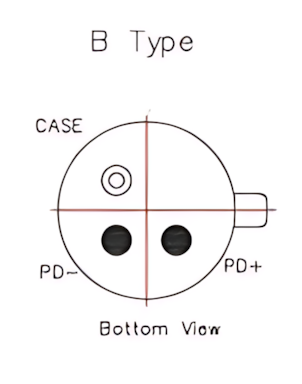

Pin table
Range of application
● CATV transmission optical receiver
● RF transmission optical receiver
● Other Analog receiver/ Power detector
