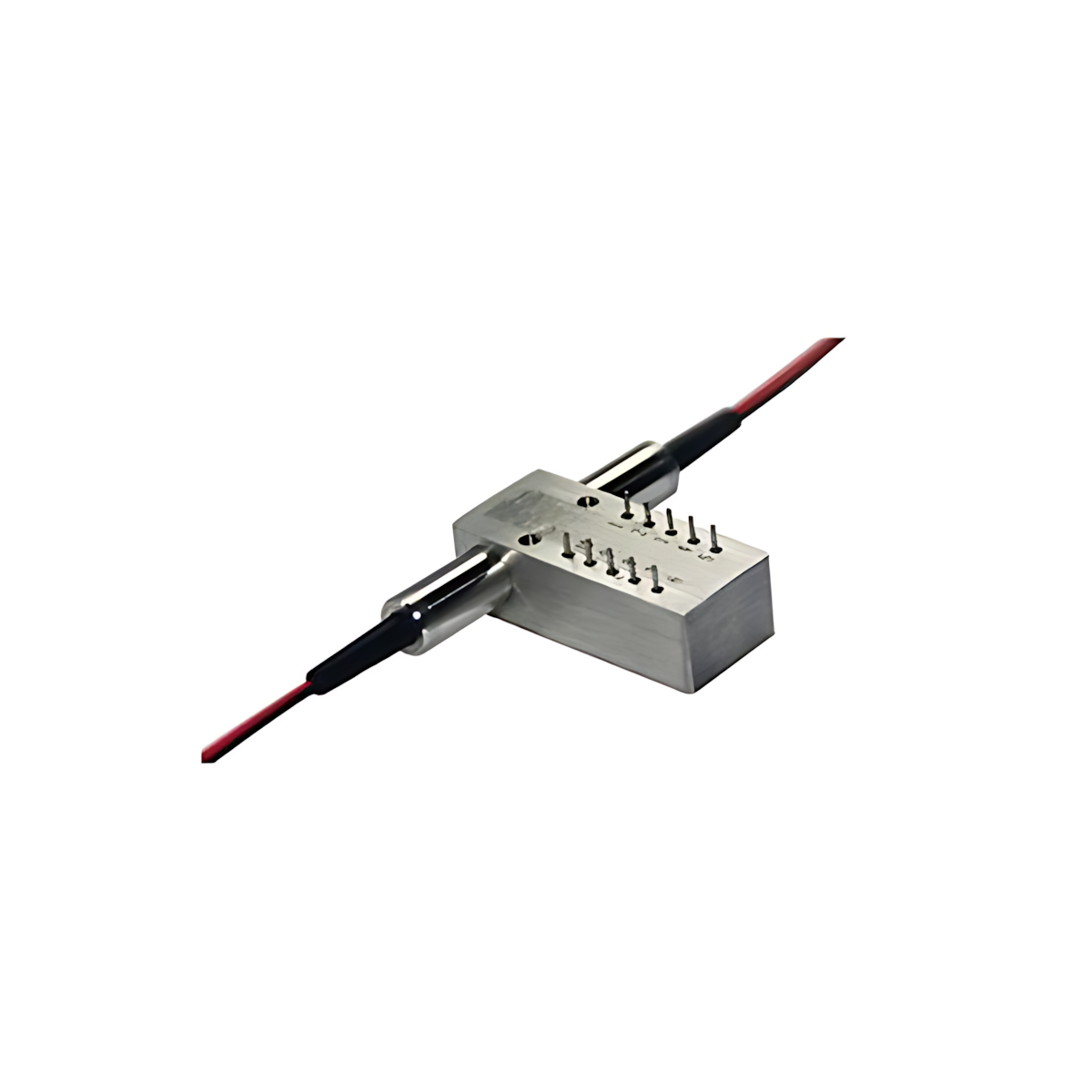

1x2 Mechanical Fiber Optic Switch
(Mechanical Optical Switch) 1x2 Mechanical Fiber Optic Switch connects optical channels by redirecting 1 incoming optical signals into 2 output fibers. It is achieved by shift the fiber or optical component. This design can significantly offer high stability as well as an unmatched low cost.
● Low Insertion Loss.
● Monolithic Package.
● Cost-Effective.
● Epoxy-free on Optical Path.
● Latching or Non-Latching.
● Telcordia GR-1221 Qualified.
Functional Parameter
Parameter | Min. | Typical | Max. |
Central Wavelength (nm) | 1310, 1550, 1310 and 1550 | ||
Bandwidth (nm) | 100nm | ||
Insertion Loss (dB) | 0.8 | ||
Switch time（ms） | 10 | ||
Shift Speed（Hz） | 10 | ||
Crosstalk (dB) | 60 | ||
Voltage(V) | 3~5.5 | ||
Repeatability (dB) | ±0.02 | ||
Durability | 10 million | ||
Return Loss(dB) | 50 | ||
Polarization Dependent Loss (dB) | 0.10 | ||
Transmission Power (mW) | 300 | ||
Operating Temperature(℃) | -5~70 | ||
Storage Temperature（℃） | -40~85 | ||
Fiber Type | Corning SMF 28e+ or equal（Customized） | ||
Fiber Length（m） | ≥1.0（Customized） | ||
Dimension(mm) | 28x13x8 | ||
Electronic pins structure
Non-latching
optical path | condition | |||||
PIN1 | PIN10 | PIN3-2 | PIN3-4 | PIN8-9 | PIN8-7 | |
1-3 | GND | +5v | OPEN | CLOSE | OPEN | CLOSE |
1-2 | N/A | N/A | CLOSE | OPEN | CLOSE | OPEN |
Latching
optical path | circuit driver | condition | ||||||
PIN1 | PIN5 | PIN10 | PIN6 | PIN3-2 | PIN3-4 | PIN8-9 | PIN8-7 | |
1-3 | N/A | N/A | +5v | GND | OPEN | CLOSE | OPEN | CLOSE |
1-2 | +5v | GND | N/A | N/A | CLOSE | OPEN | CLOSE | OPEN |
● Route Fiber Test System
● Re-Configurable OADM
● Network Restoration
● Network Protection
● Network Monitoring
