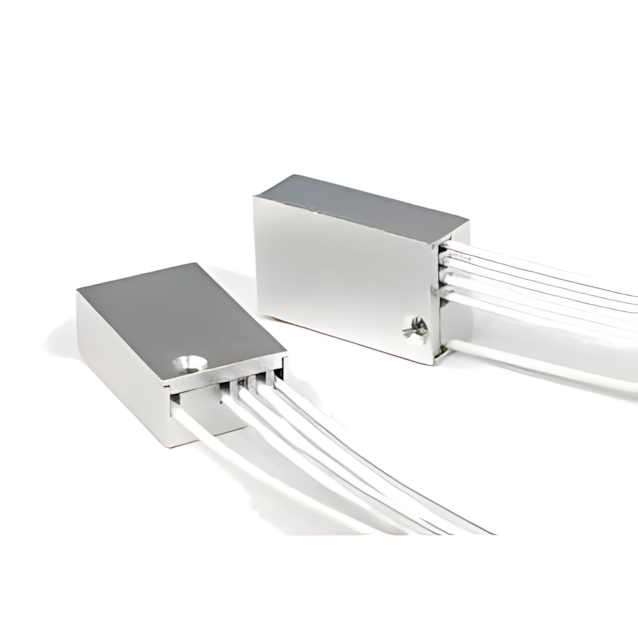

1X4 LAN-WDM
LAN WDM utilizes free space technology, with ultra-compact size and high reliability. It can be widely used in 40Gbps or 100Gbps application. All XDK's WDM products are Telcordia GR-1209 and GR-1221 compliance.
● Low Insertion Loss.
● High Stability and reliability.
● High Channel Isolation.
● Ultra compact size.
● Epoxy-free on Optical Path.
Items | Unit | Parameter | |
Channel Wavelength | CH1 | nm | 1294.53-1296.59 |
CH2 | 1299.02-1301.09 | ||
CH3 | 1303.54-1305.63 | ||
CH4 | 1308.09-1310.19 | ||
Wavelength Range | nm | 1280-1330 | |
Channel Spacing | GHz | 800 | |
Insertion Loss | dB | ≤1.5 | |
Isolation | Adjacent | dB | ≥25 |
Non-adjacent | ≥35 | ||
Channel Ripple | dB | ≤0.5 | |
Polarization Dependent Loss | dB | ≤0.5 | |
TDL | dB | ≤0.5 | |
Uniformity | dB | ≤1.0 | |
Polarization Mode Dispersion | ps | ≤0.2 | |
Return Loss | dB | ≥45 | |
Directivity | dB | ≥50 | |
Maximum Power Handling | mw | ≤300 | |
Operating Temperature | ℃ | -5~70 | |
Storage Temperature | ℃ | -40~85 | |
Packing | mm | 21x13x6.5 | |
● WDM Network
● CFP transceivers
● Data communicaton
● 40G or 100G applications
