(FBT WDM) 3 Ports FBT WDM Device
1x2 FBT WDM device is based on the fused biconical taper technology, which can make two optical fiber become fused biconical taper under high temperature, then after packaging it can add or drop the different optical wavelength signal.
● High Channel Isolation, low Insertion Loss
● High Stability and reliability
● Material meet RoHS
● Meet GR 1209,GR 1221 requirement
Parameter | Min | Typical | Max | ||
Passband Wavelength Range(nm) | 1295~1325 | ||||
Reflection Wavelength Range(nm) | 1535~1565 | ||||
Insertion Loss(dB) | 0.3 | ||||
Isolation(dB) | 17 | ||||
Directivity(dB) | 55 | ||||
Return Loss(dB) | 55 | ||||
Polarization Dependent Loss (dB) | 0.1 | ||||
Polarization Mode Dispersion(ps) | 0.1 | ||||
Operating Temperature Range (℃) | -5~+70 | ||||
Storage Temperature Range(℃) | -40~85 | ||||
Optical fiber type | Corning SMF 28e+ or equal(customized) | ||||
Optical fiber length(m) | ≥1.0(customized) | ||||

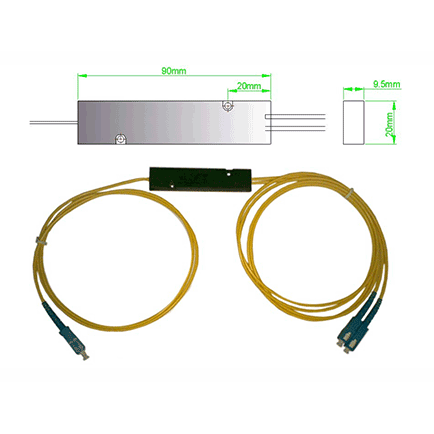

Package dimension (mm) | 90x20x10 or 100×80×10 | ||||
● CATV Systems
● Network Monitoring
● Test Equipment
● Telecommunications
