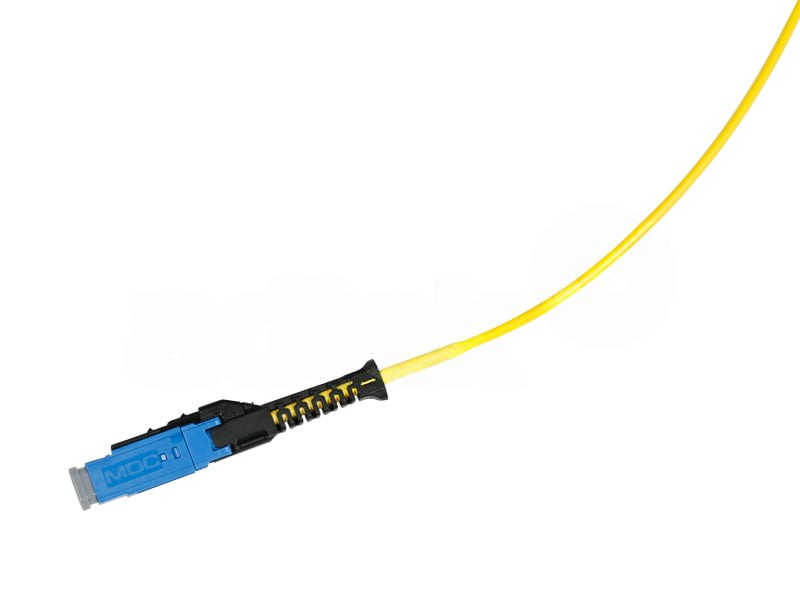

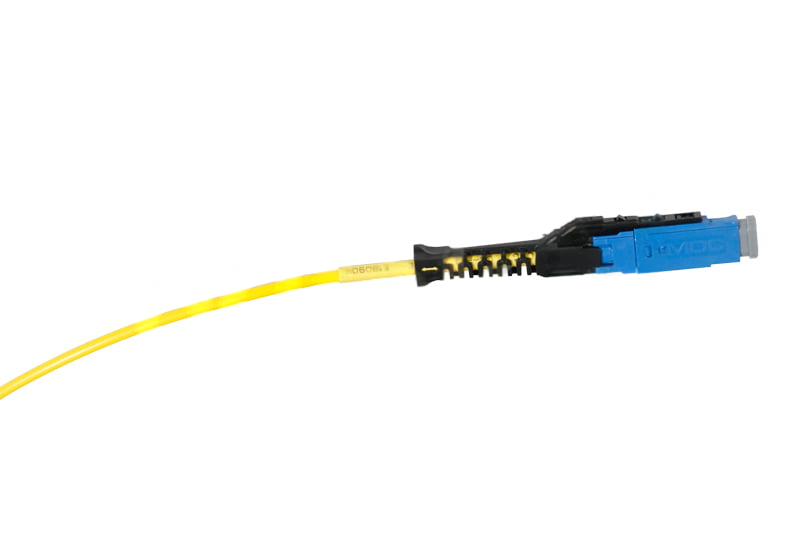

MDC Patch Cable
The MDC connector is a very small form factor (VSFF) duplex fiber optic connector designed to terminate up to 2.0mm in diameter
of multimode and singlemode fiber optic cables. MDC connectors are manufactured using the same 1.25mm ferrule technology used in industry standard LC fiber optic connectors. Use leather
Revolutionary DirectConec™ push-pull housing technology enables easy insertion and removal of individual connectors in the densest connector environments.
• 3x the fiber cabling density of LC connectors, providing 216 duplex connectors (432 fibers) in 1RU
• DirectConec™ push-pull housing makes connector insertion and removal effortless
• Easy polarity conversion, no exposed fiber
• Meets random mating requirements for IEC attenuation Class B (0.12 dB average, 0.25 dB maximum, over 97% of connectors)
• Compliant with Telcordia GR-326 and TIA-568 standards
• Designed for fiber optic cables with outer diameters up to 2.0mm
• Available in multimode, singlemode PC and singlemode APC
