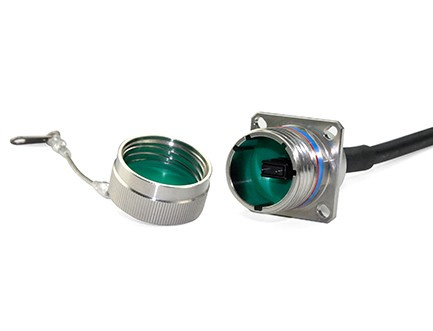

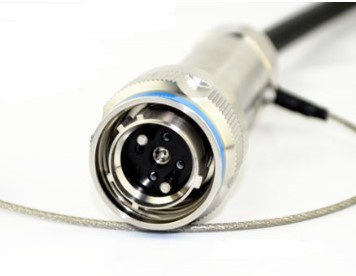

J599 A6 Connector
J599/D38999 A6 fiber connector adopts the bayonet connection mode, the tri-curved groove structure, the rotation 120th degree can realize the connection and the separation, the connection is quicker and more convenient. Widely used in aviation, electronics, ships and other systems, installation of small visible occasions, rotating fast lock, to achieve multi-channel optical communication.
Outer casing can choose different materials and coatings to adapt to different environmental requirements.
According to XC158 series connector interface.
Bayonet structure, quick connection.
Five key location, there are blind mating and error proofing interpolation function.
Ceramic pin and sleeve contacts to achieve precision docking.
Compatible j599iii series connector mounting dimensions.
Select standard connector on the other end，Various connector option: LC、SC、FC、ST etc.
Fiber Type | SM（9/125um） | MM（50/125um、62.5/125um） | |
Polish | UPC | APC | UPC |
Insertion Loss | ≤0.7dB (Typical) | ||
Return Loss | UPC≥50dB，APC≥60dB | UPC≥20dB | |
Mechanical life | 500 times ≤0.5dB | ||
Vibration | 10Hz ~ 2000Hz, power spectral density 0.4G2 / Hz | ||
tensile strength | ≥68N(2mm contacts jumper) | ||
Salt mist | ≥1000h stainless steel, aluminum, cadmium plated ≥48h (aluminum nickel-plated) | ||
Stretching resistance | Short Period：1200N Long Period:600N | ||
Protection level | IP68 | ||
Fiber count(optional) | 2 ~ 24 | ||
Cable Diameter(optional) | 4.0、7.0mm | ||
Jacket Material(optional) | LSZH、TPU | ||
Operating Temperature | －55℃～＋85℃ | ||
Marine equipment communications
Airborne equipment
Acid and alkali
Hydrochloric acid
Wet and other harsh environment
Military communications and outdoor adverse environmental communications
