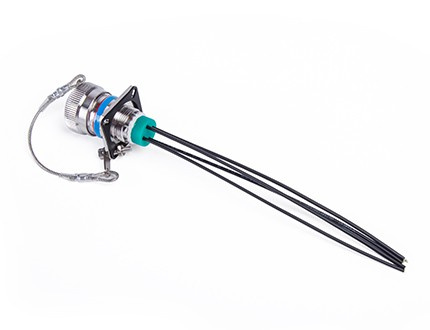

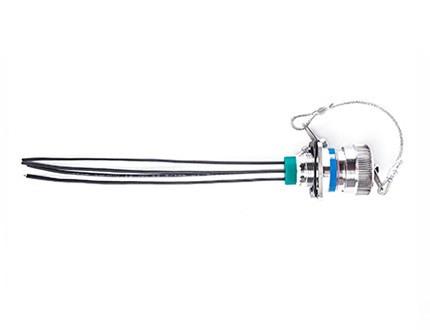

J599 A8 Connector
J599/D38999 A8 fiber connector uses five-key positioning, with blind insertion and anti-error insertion function. The joint is quickly connected with three thread, with anti-loosening structure, and the ceramic pin and casing are used to realize optical precise docking. Has the connection socket (optional gas seal) form, gets rid of the optical cable bondage
Outer casing can choose different materials and coatings to adapt to different environmental requirements.
Five key location, there are blind mating and error proofing interpolation function.
Three Screw thread quick connect, and with anti-release mechanism.
Ceramic pin and sleeve contacts to achieve precision docking.
There are many variations of the optional rear.
With adapter socket (optional hermetic seal) form, get rid of the shackles of cable.
Industrial standard：Q/21EJ1305 connector size comply with GJB599A standard.
(MIL-DTL-38999)Ⅲ，performance meet with ARINC801 standard.
Select standard connector on the other end，Various connector option: LC、SC、FC、ST etc.
Fiber Type | SM（9/125um） | MM（50/125um、62.5/125um） | |
Polish | UPC | APC | UPC |
Insertion Loss | ≤0.6dB (Typical) | ||
Return Loss | UPC≥50dB，APC≥60dB | UPC≥20dB | |
Mechanical life | 500 times | ||
Vibration | 10Hz ~ 2000Hz, power spectral density 0.4G2 / Hz | ||
tensile strength | ≥68N(2mm contacts jumper) | ||
Gas tightness (applies to airtight adapter socket) | gas leakage≤1×10-9Pa.m3/s，external pressure is 1 atm | ||
Salt mist | ≥1000h stainless steel, aluminum, cadmium plated ≥48h (aluminum nickel-plated) | ||
Stretching resistance | Short Period：1200N Long Period:600N | ||
Protection level | IP67 | ||
Fiber count(optional) | 12 ~ 24 | ||
Cable Diameter(optional) | 4.0、7.0mm | ||
Jacket Material(optional) | LSZH、TPU | ||
Operating Temperature | －55℃～＋85℃ | ||
Marine equipment communications
Airborne equipment
Acid and alkali
Hydrochloric acid
Wet and other harsh environment
Military communications and outdoor adverse environmental communications
