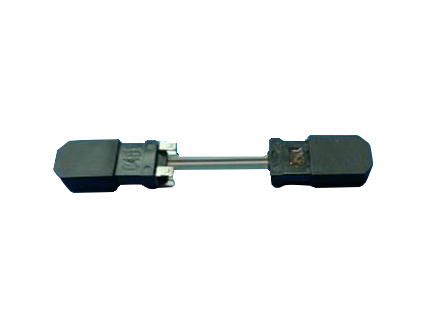

MT-MT Patchcord
MT-MT patch cords used in the parallel fiber optic module－(QSFP+SR4) the connection to the optical lens and External Port. Use low loss MT Ferrule, Corning Clean Curve fiber to achieve low attenuation. Total length's tolerance ±0.15mm, MT Ferrule's tolerance ±0.05mm, are available to satisfy coupling in small space of the module
lCross or parallel connecting.
l40G/100G transmission speed.
lStandard or low loss can be optional.
l8Cores or 12 cores can be optional.
lGR-1435-Core compliance.
lThe length is specified by customer.
lRibbon fiber or separated fiber convenient for inside connection.
Fiber Type | SM（9/125um） | MM（50/125um、62.5/125um） | |
Polish | UPC | APC | UPC |
Insertion Loss(Standard) | ≤0.35dB（typical）, ≤0.75dB（Max） | ≤0.35dB（typical）, ≤0.60dB（Max） | |
Insertion Loss(Low) | ≤0.20dB（typical）, ≤0.35dB（Max） | ≤0.20dB（typical）, ≤0.35dB（Max） | |
Return Loss | ≥50dB | ≥60dB | ≥20dB |
3D | Fiber Height : 1000~3500nm Radius Long: 500mm min Radius Short: 50mm min Max Fiber Differential < 400nm Max Fiber Adj Diff < 200nm Ferrule Height：7.95mm min MM Core Dip：<100nm | ||
Repeatability | 500 times typical change value ≤ 0.20dB | ||
Interchangeability | ≤0.20dB | ||
Connector(optional) | Male / Female | ||
Tensile Strength (kgf ) | 10 | ||
Fiber Moder (optional) | OS1,OS2, OM1, OM2, OM3, OM4 | ||
Operating Temperature | -20 ~ +70 ℃ | ||
Storage Temperature | -40 ~ +85 ℃ | ||
lCATV，LANs，WANs
lQSFP Module
lMulti channel testing instrument
lData center
lCommunication
