MPO/MTP Patchcords

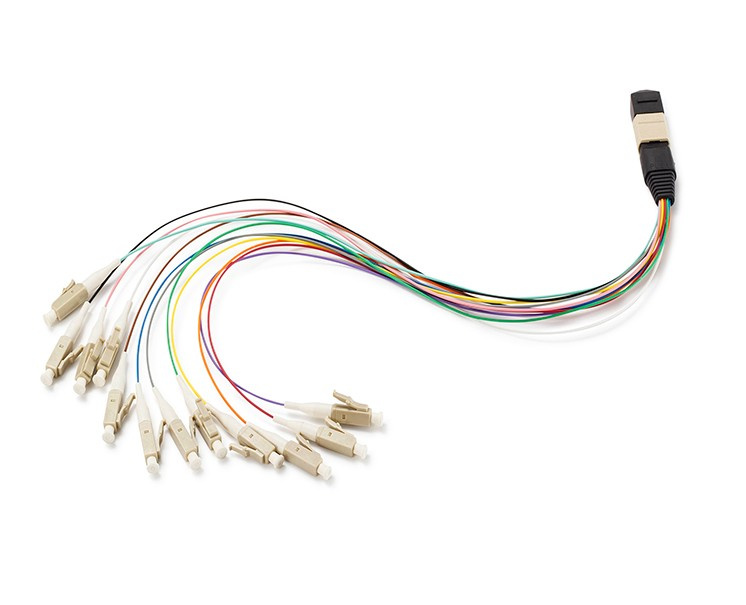

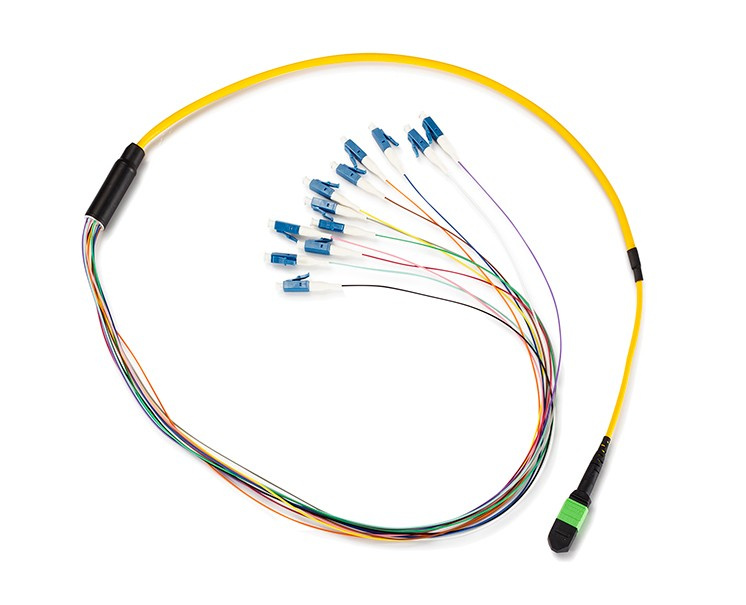

MPO/MTP patchcords pre-terminated cable refers to the use of MPO single head 12 core or 24 connector at the end of the cable, and the other end of the cable is using the LC/SC conector, MPO/MTP patchcords is deployed inside plug and play cassette modules.this solution is a 12-colored 0.9mm cable utilizing a MPO/MTP connector on one end and generic connector (such as LC,SC,FC edc.). They are available for purchase as a bundle with iphotonics's plug and play modules.
8,12 and 24 fiber connector terminations and assembies.
Insertion oss type avaiabe in Standard, Eite/ow oss.
MPO/MTP connector type avaiabe in Mae, Femae, Mae to Femae.
MPO/MTP assembed with 0.9mm cabe to singe-fiber connectors.
Improve and simpify fiber routing, decrease fiber management space.
Connector Type | A : MPO / MTP B : C/SC | ||
Fiber Type | SM（9/125um） | MM（50/125um、62.5/125um） | |
Poish | UPC | APC | UPC |
Insertion oss | MPO / MTP : ow oss≤0.35dB, Standard oss≤0.60dB C/SC/FC/ST : ow oss≤0.15dB, Standard oss≤0.30dB | ||
Return oss | ≥50dB | ≥60dB | ≥20dB |
3D(MPO/MTP) | Fiber Height : 1000~3500nm Radius ong: 500mm min Radius Short: 50mm min Max Fiber Differentia < 400nm Max Fiber Adj Diff < 200nm Ferrue Height：7.95mm min MM Core Dip：<100nm | ||
3D(C/SC/FC/ST) | Radius of Curvature :10-25mm(PC/UPC) ，5-12mm(APC） Apex offset : 0-50um High fiber : ±100 nm Ange：8±0.2°(APC） | ||
Repeatabiity | 1000 times typica change vaue ≤ 0.20dB | ||
Interchangeabiity | ≤0.20dB | ||
Tester Brand | EXFO & JGR | ||
MPO / MTP Connector | Mae / femae | ||
Jacket Materia(optiona) | SZH、OFNP、OFNR、PVC | ||
Jacket coor | Aqua (OM3, OM4), Erica Vioet (OM4), Yeow (OS1/OS2, G.657A1), Orange (OM1, OM2) | ||
Cabe Diamete(Branch) | 2.0, 3.0mm | ||
Fiber count(optiona) | 8, 12, 16, 24 Core | ||
Fiber Moder(optiona) | G652D, G657A, OM1, OM2, OM3, OM4 | ||
Operating Temperature | -20 ~ +70 ℃S | ||
Storage Temperature | -40 ~ +85 ℃ | ||
Data center system networks
High-Density Cross Connect
Inside pug and pay fiber cassette modue.
High Density Fiber Management.
