Waterproof Pigtail

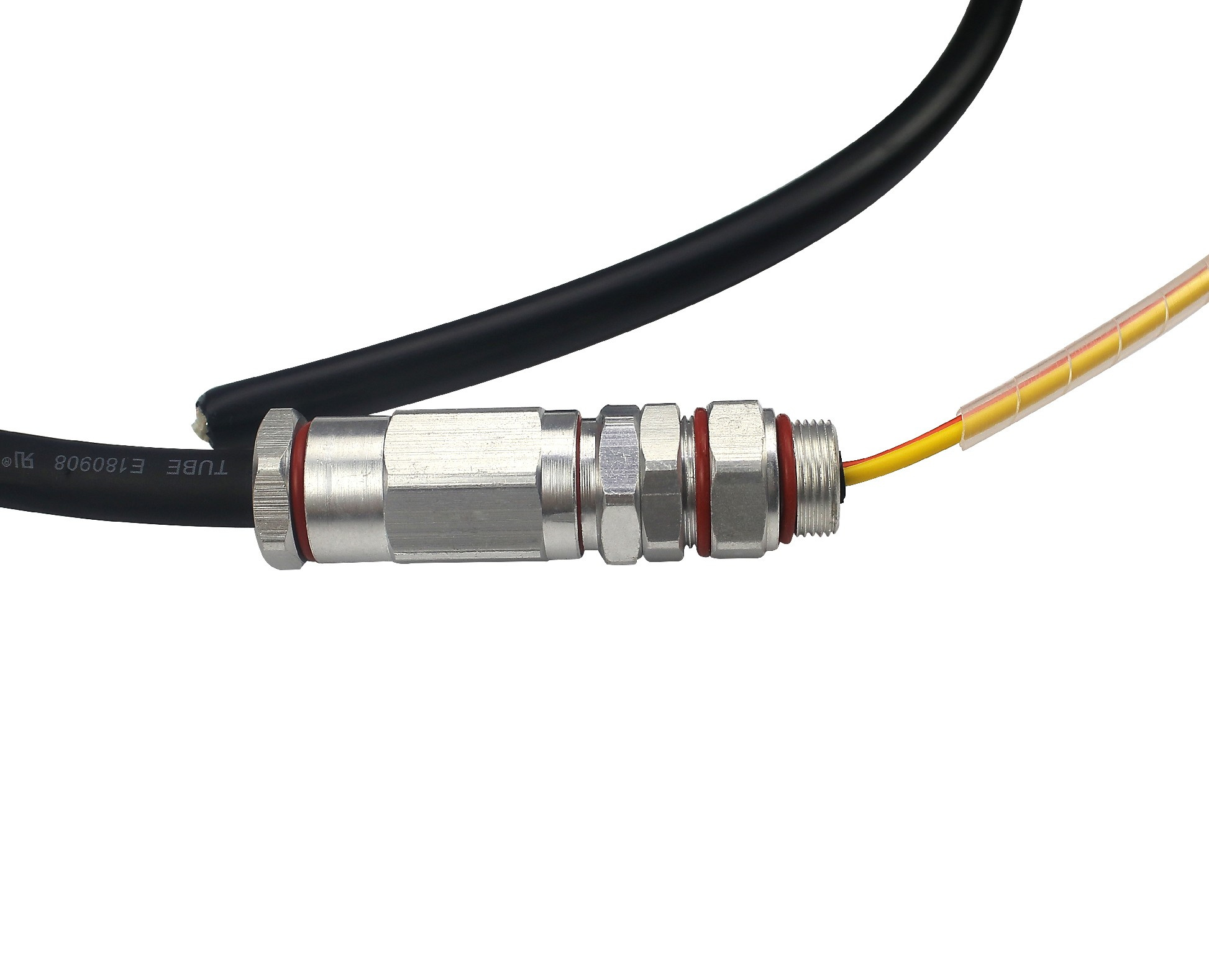

Waterproof fiber optic pigtails is a fiber optic component that has a durable and waterproof fiber optic connector installed on one end and a length of exposed fiber at the other end. Waterproof fiber pigtail is designed with a stainless steel strengthened waterproof unit and armored outdoor PE jacketed cables.
Fiber optic pigtails are used to connect the major optical cable lines and the optical receivers in optical fiber communication systems.
100% factory tested assembies with traceabe test data，ow environmenta sensitivity.
ow insertion oss，High return oss，Stricter than industry standards.
Good exchange abiity and good durabiity，Stabe optica properties.
Waterproof performance and epoxy free waterproof connector.
Automatic ocking device in waterproof connector.
Strict temperature contro, testing standard and methods.
Standard connector，Various connector option: C、SC、FC、ST etc.
Compiant with IEC61754，GR-326，TIA/EIA 568 standard.
Fiber Type | SM（9/125um） | MM（50/125um、62.5/125um） | |
Poish | UPC | APC | UPC |
Insertion oss | ≤0.30dB（Max） ≤0.20dB（typica） | ≤0.30dB（Max） ≤0.10dB（typica） | |
Return oss | ≥50dB | ≥60dB | ≥20dB |
3D | Radius of Curvature :10-25mm(PC/UPC) ，5-12mm(APC） Apex offset : 0-50um High fiber : ±100 nm Ange：8±0.2°(APC） | ||
Repeatabiity | 1000 times typica change vaue ≤ 0.20dB | ||
Interchangeabiity | ≤0.20dB | ||
Branch Diamete(optiona) | 2.0 , 3.0mm | ||
Jacket Materia | PE | ||
Fiber Cores(optiona) | 2, 4, 6, 8 and 12 cores | ||
Fiber Moder(optiona) | G652D, G657A, G657B, OM1, OM2, OM3, OM4 | ||
Operating Temperature | -20 ~ +70 ℃ | ||
Storage Temperature | -40 ~ +85 ℃ | ||
Branch coor code sequence
Brunch Coor | 1 | 2 | 3 | 4 | 5 | 6 |
Bue | Orange | Green | Brown | Sate | White | |
7 | 8 | 9 | 10 | 11 | 12 | |
Red | Back | Yeow | Purpe | Pink | Aqua |
CATV，ANs，WANs
Teecommunication networks
Active device termination
Optica fiber communication networks
Connection of equipment in the open air
Instaation and debugging in harsh conditions
FTTx
