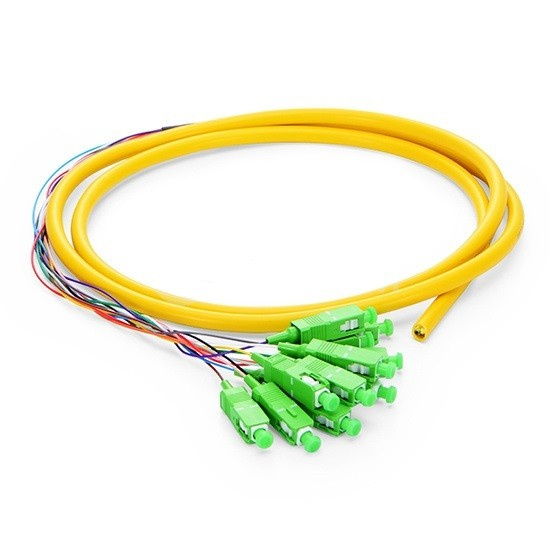

SC Bunch Pigtails
Fiber optic pigtails provide a fast way to make communication devices in the field. They are designed, manufactured and tested according to protocol and performance dictated by the industrial standards, which will meet your most stringent mechanical and performance specifications.
● 100% factory tested assemblies with traceable test data，Low environmental sensitivity
● Low insertion loss，High return loss，Stricter than industry standards
● Good exchange ability and good durability，Stable optical properties
● Standard connector，Various connector option: LC、SC、FC、ST etc.
● Compliant with IEC61754，GR-326，TIA/EIA 568 standard
Fiber Type | SM（9/125um） | MM（50/125um、62.5/125um） | |
Polish | UPC | APC | UPC |
Insertion Loss（typical） | ≤0.30dB | ≤0.30dB | |
Return Loss | ≥50dB | ≥60dB | ≥20dB |
3D | Radius of Curvature :10-25mm(PC/UPC) ，5-12mm(APC） Apex offset : 0-50um High fiber : ±100 nm Angle：8±0.2°(APC） | ||
Repeatability | 1000 times typical change value ≤ 0.20dB | ||
Interchangeability | ≤0.20dB | ||
Cable Diamete(Branch) | 0.9mm | ||
Jacket Material(optional) | LSZH、OFNP、OFNR、PVC | ||
Fiber Moder(optional) | G652D, G657A, G657B, OM1, OM2, OM3, OM4 | ||
Operating Temperature | -20 ~ +70 ℃ | ||
Storage Temperature | -40 ~ +85 ℃ | ||
● CATV，LANs，WANs
● Telecommunication networks
● Active device termination
● Data center system networks
● Video and military active device termination
