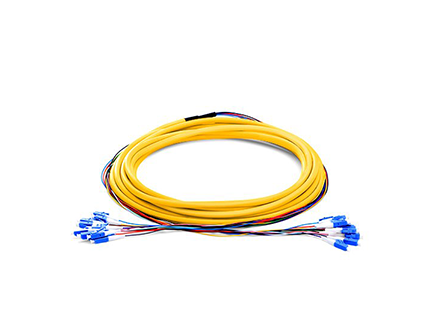

LC Multi-fiber Patchcords
Multi-fiber Patchcords is a low-cost, pre-assembled cable designed primarily for indoor interconnection between transmission equipment and patch panels or similar fixed routes. The fiber optic cable has industry standard flammability rating and the connector meets EIA/TIA 604-2 for high speed cabling networks.
● 100% factory tested assemblies with traceable test data，Low environmental sensitivity.
● Low insertion loss，High return loss，Stricter than industry standards.
● Good exchange ability and good durability，Stable optical properties.
● Standard connector，Various connector option: LC、SC、FC、ST etc.
● Compliant with IEC61754，GR-326，TIA/EIA 568 standard.
Fiber Type | SM（9/125um） | MM（50/125um、62.5/125um） | |
Polish | UPC | APC | UPC |
Insertion Loss（typical） | ≤0.30dB | ≤0.30dB | |
Return Loss | ≥50dB | ≥60dB | ≥20dB |
3D | Radius of Curvature :10-25mm(PC/UPC) ，5-12mm(APC） Apex offset : 0-50um High fiber : ±100 nm Angle：8±0.2°(APC） | ||
Repeatability | 1000 times typical change value ≤ 0.20dB | ||
Interchangeability | ≤0.20dB | ||
Fiber Count | 6 ~144 Core | ||
Fan-out Diamete(optional) | 0.9mm、2.0mm、3.0mm | ||
Jacket Material(optional) | LSZH、OFNP、OFNR、PVC | ||
Fiber Moder(optional) | G652D, G657A, G657B, OM1, OM2, OM3, OM4 | ||
Operating Temperature | -20 ~ +70 ℃ | ||
Storage Temperature | -40 ~ +85 ℃ | ||
● CATV，LANs，WANs
● Telecommunication networks
● Active device termination
● Data center system networks
● Video and military active device termination
● FTTx
