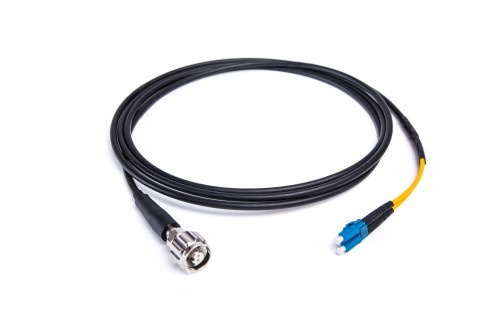

ODC-LC Patchcords
ODC fiber optic patch cables with extremely robust outdoor connector are designed to withstand harsh environment such as mechanical loads, high thermal exposure, and demanding environments like rain, salt and splash water. It is known for their ease of installation and highest operation safety due to the robust and ruggedized design. ODC military grade cables are installation-friendly for fixed or mobile applications and transmit reliably data over long distances under severe environmental conditions.
l100% factory tested assemblies with traceable test data，Low environmental sensitivity.
lRobust fiber-optic connector for 2 and 4 channels with screwed mating mechanism.
lIP68 protection, salt-mist proof, and EMI protection.
lHigh shock, vibration, and mechanical resistance.
lBroad temperature range and wide range of indoor and outdoor cables.
lEasy, reliable and cost-effective installation.
lStandard connector，Various connector option: LC、SC、FC、ST etc.
Connector Type(optional) | End A : Socket / Plug End B : LC、SC、FC、ST | |||
Fiber Type | SM（9/125um） | MM（50/125um、62.5/125um） | ||
Polish | UPC | APC | UPC | |
Insertion Loss | SM：Loss≤0.70dB（Max）、Loss≤0.50dB（typical） MM：Loss≤0.50dB（Max）、Loss≤0.20dB（typical） | |||
Return Loss | UPC≥50dB，APC≥60dB | UPC≥20dB | ||
Repeatability | 200 times typical change value ≤ 0.20dB | |||
Interchangeability | ≤0.20dB | |||
mechanical character | Socket / Plug：≤500N (Cable） | |||
Protection level | IP67 | |||
Fiber count(optional) | 2、4、6、8 | |||
Cable Diameter(optional) | 4.0、5.0mm | |||
Jacket Material(optional) | LSZH、TPU | |||
Operating Temperature | -20 ~ +70℃ | |||
Storage Temperature | -40 ~ +85℃ | |||
lIndoor and Outdoor applications
lOutdoor & Military communication equipment connection
lOil field, mine communication connection
lFar transmission wireless base station
lVideo Surveillance system
lOptical fiber sensor
lRailway signal control
lIntelligent substation
