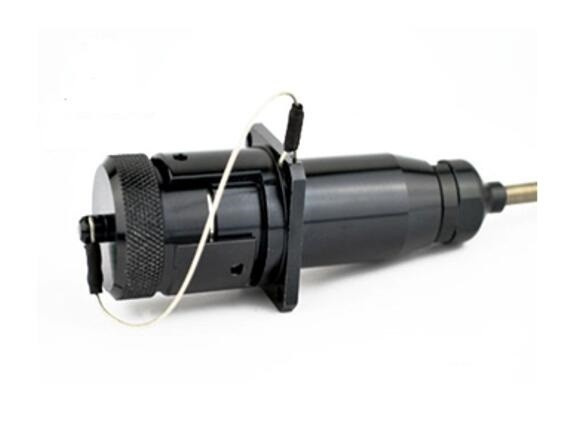

YZC Connector
Designed for military field fiber optic cable supporting, neutral bayonet locking structure can be realized head and seat, head and head, seat and seat fast any connection. With multi-core once connected and blind insertion; connection loss, high reliability; rugged, waterproof, dustproof, resistance to harsh environments, etc., can be used in a variety of optical fiber communication network field army, military computer systems, airborne or ship borne equipment, repair and other outdoor optical cable system temporary connection.
Adopting neutral connection technology, without using adapter or flange, the design of quick connecting.
Key location, With multi-core once connected and blind insertion.
Aluminium alloy shell, light weight and high strength.
Connector plugs and receptacles are provided with dust-proof covers to ensure the quality of connection.
Standard ceramic pin and housing connection dimensions, fully compatible with existing equipment.
Select standard connector on the other end，Various connector option: LC、SC、FC、ST etc.
Fiber Type | SM（9/125um） | MM（50/125um、62.5/125um） | |
Polish | UPC | APC | UPC |
Insertion Loss | ≤1.0dB (Typical≤0.5dB) | ≤1.0dB (Typical≤0.9dB) | |
Return Loss | UPC≥50dB，APC≥60dB | UPC≥20dB | |
mechanical character | Socket / Plug：≤1000N (Main Cable） | ||
LC/SC：≤ 100N（Branch Cable） | |||
Tensile Strength | Short term600N / Long term：200N | ||
Protection level | IP67 | ||
Fiber count(optional) | 2 ~ 12 | ||
Cable Diameter(optional) | 4.0、7.5mm(or Customize) | ||
Jacket Material(optional) | LSZH、TPU | ||
Anti-push Unit | KEVLAR | ||
Operating Temperature | -40 ~ +85℃ | ||
Military emergency communications
Broadcast television
Emergency rush through optical fiber communications
Mining, oil and so on
