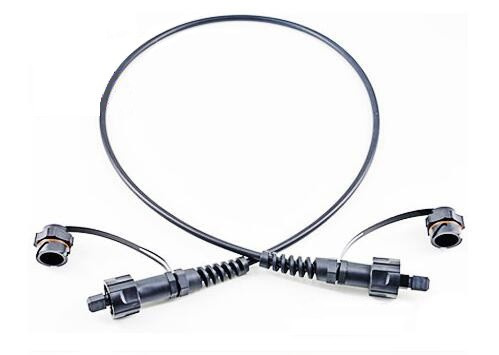

ODVA Waterproof Connector

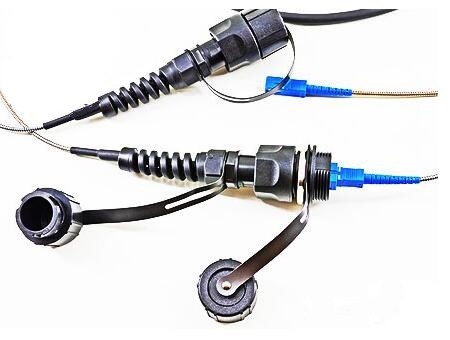

ODVA(Open DeviceNet Vendors Association) plug(RRU side) assemblies provide an environmental seal and mechanical protection for connections. The assemblies guarantee an easy, one-step connection system with the combined push-pull insertion and bayonet-style mechanical latch. ODVA provides quick installation solutions and has good performance on mating with SFP module. Cable can be Armored or Non-Armored. The industrial connector assembly has been ratified as a ‘Standard Interface’in the ODVA as a next-generation industrial interconnect. The industrial panel-mount, plastic adapters serve as a sealed feed-through for the fiber connection. The new industrial integrated flange-mount adapters are designed for tight, side-by-side applications. A single shutter, available in plastic or metal, is secured inside the adapter to cover connector ports and provide dust and laser protection for the internal fiber connection.
Provides moisture and dust protection for use in harsh industrial environments.
IP67 protection, salt-mist proof, humidity proof, dust proof.

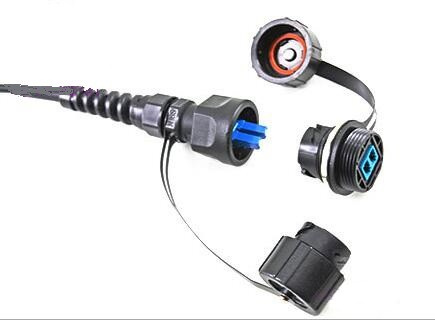

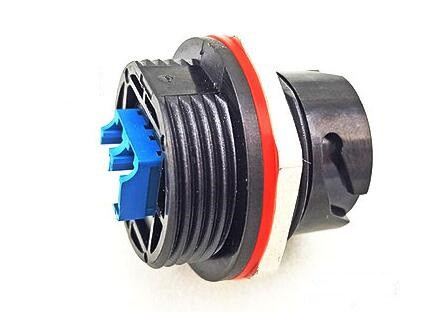

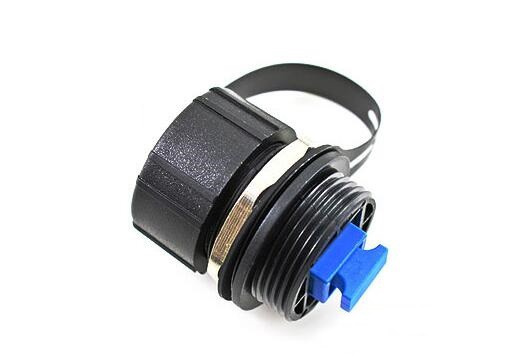

Sealed panel feed-through design for easy installation into enclosures.
100% optically tested to ensure quality performance assemblies.
Available in single mode and multimode styles to work with any common fiber type.
Push-pull insertion with bayonet-style mechanical latch provides easy installation and removal.

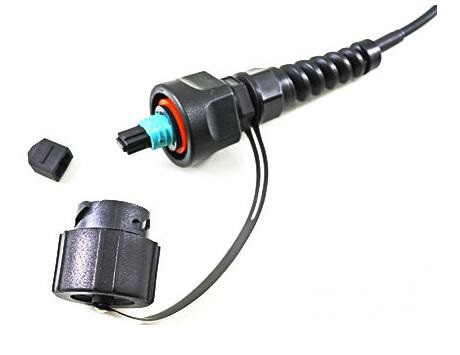

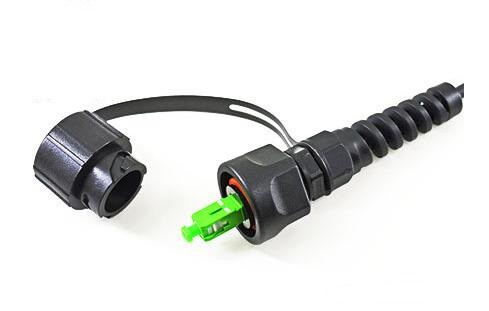

Various connector option: LC、SC、MPO、MTP etc.
Fiber Type | SM（9/125um） | MM（50/125um、62.5/125um） | |
Polish | UPC | APC | UPC |
Insertion Loss | ≤0.3dB (Typical) | ||
Return Loss | UPC≥50dB，APC≥60dB | UPC≥20dB | |
Repeatability | 1000 times typical change value ≤ 0.20dB | ||
3D(MPO/MTP) | Fiber Height : 1000~3500nm Radius Long: 500mm min Radius Short: 50mm min Max Fiber Differential < 400nm Max Fiber Adj Diff < 200nm Ferrule Height：7.95mm min MM Core Dip：<100nm | ||
3D(LC/SC) | Radius of Curvature :10-25mm(PC/UPC) ，5-12mm(APC） Apex offset : 0-50um High fiber : ±100 nm Angle：8±0.2°(APC） | ||
Fiber Moder(optional) | G652D, G657A, G657B, OM1, OM2, OM3, OM4 | ||
Protection level | IP67 | ||
Fiber count(optional) | 1 ~ 24 | ||
Cable Diameter(optional) | 4.0、7.0mm | ||
Jacket Material(optional) | LSZH、TPU | ||
Operating Temperature | －55℃～＋85℃ | ||
Applied in outdoor and severe environment
Dust-proof and waterproof
Applied on FTTA(Fiber to the Antenna)
