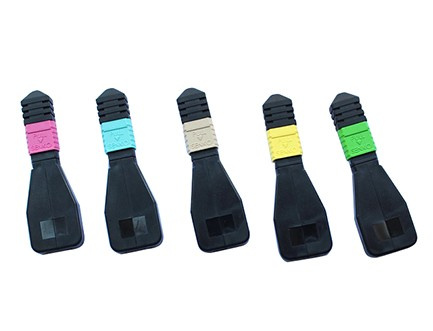

MPO/MTP Loopback adaptor
Designed for network diagnostics, testing system configurations, and device burn-in, the MPO/MTP/LC/SC loopback adaptor can form an optical link for segment by segment testing by creating a loop of signal from transmitter to receiver within one MTP/MPO plug. It is packaged in a rugged, compact housing, providing an effective way of testing the transmission capability and receiver sensitivity of network equipment, particularly for telecom and datacom requirements.
MTP/MPO connector, poarity avaiabe.
Insertion oss type avaiabe in Standard, Eite/ow oss.
MTP/MPO connector type avaiabe in Mae, Femae.
Customized oop ength and poarity.
Improve and simpify fiber routing, decrease fiber management space.
Fiber Type | SM（9/125um） | MM（50/125um、62.5/125um） | |
Poish | UPC | APC | UPC |
Insertion oss | MPO / MTP : ow oss≤1.2dB, Standard oss≤0.70dB C/SC : Standard oss≤0.60dB | ||
Return oss | ≥50dB | ≥60dB | ≥20dB |
3D(MPO/MTP) | Fiber Height : 1000~3500nm Radius ong: 500mm min Radius Short: 50mm min Max Fiber Differentia < 400nm Max Fiber Adj Diff < 200nm Ferrue Height：7.95mm min MM Core Dip：<100nm | ||
3D(C/SC/FC/ST) | Radius of Curvature :10-25mm(PC/UPC) ，5-12mm(APC） Apex offset : 0-50um High fiber : ±100 nm Ange：8±0.2°(APC） | ||
Repeatabiity | 1000 times typica change vaue ≤ 0.20dB | ||
Interchangeabiity | ≤0.20dB | ||
MPO / MTP Connector | Mae / femae | ||
Fiber Moder(optiona) | G652D, G657A, G657B, OM1, OM2, OM3, OM4 | ||
Fiber count(optiona) | 2 ~ 24 Core | ||
Operating Temperature | -20 ~ +70 ℃ | ||
Storage Temperature | -40 ~ +85 ℃ | ||
For equipment sef-testing and engineering
Network diagnosing and testing
Storage Area Network
