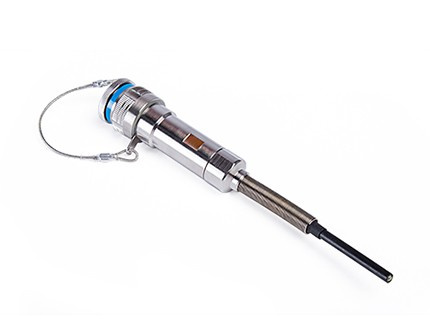

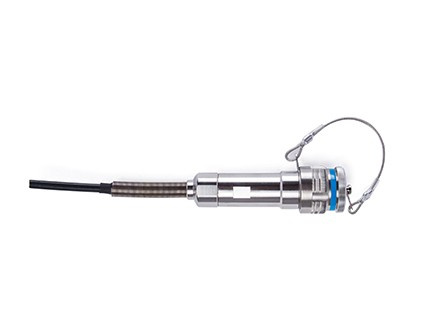

J599 MTP(MPO) Connector
J599/D38999 MPO/MTP outdoor waterproof optical fiber connector with j599 shell and MPO/MTP optical fiber connector, joints with three thread fast connection, and adapt with five keys locate at the same time, blind insertion and error proofing in and anti vibration function, connector made of stainless steel 316 material, contact parts of high density, anti electromagnetic shielding function, fiber optic assemblies detachable, convenient installation, small connector loss, high reliability, is waterproof, dustproof, anti-corrosive characteristics.
Outer casing can choose different materials and coatings to adapt to different environmental requirements.
Five key location, there are blind mating and error proofing interpolation function.
Three Screw thread quick connect, and with anti-release mechanism.
Ceramic pin and sleeve contacts to achieve precision docking.
There are many variations of the optional rear.
With adapter socket (optional hermetic seal) form, get rid of the shackles of cable.
Industrial standard：Q/21EJ1305 connector size comply with GJB599A standard.
(MIL-DTL-38999)Ⅲ，performance meet with ARINC801 standard.
Select standard connector on the other end，Various connector option: LC、SC、FC、ST etc.
Fiber Type | SM（9/125um） | MM（50/125um、62.5/125um） | |
Polish | UPC | APC | UPC |
Insertion Loss | ≤0.7dB (Typical≤0.3dB) | ≤0.6dB (Typical≤0.2dB) | |
Return Loss | UPC≥50dB，APC≥60dB | UPC≥20dB | |
Repeatability | 200 times typical change value ≤ 0.20dB | ||
Interchangeability | ≤0.20dB | ||
mechanical character | Socket / Plug：≤500N (Main Cable） | ||
LC/SC：≤ 30N（Branch Cable） | |||
Tensile Strength | Short term600N / Long term：200N | ||
Protection level | IP67 | ||
Fiber count(optional) | 12 ~ 24 | ||
Cable Diameter(optional) | 4.0、5.0mm | ||
Jacket Material(optional) | LSZH、TPU | ||
Operating Temperature | -20 ~ +70℃ | ||
Storage Temperature | -40 ~ +85℃ | ||
Marine equipment communications
Airborne equipment
Acid and alkali
Hydrochloric acid
Wet and other harsh environment
Military communications and outdoor adverse environmental communications
