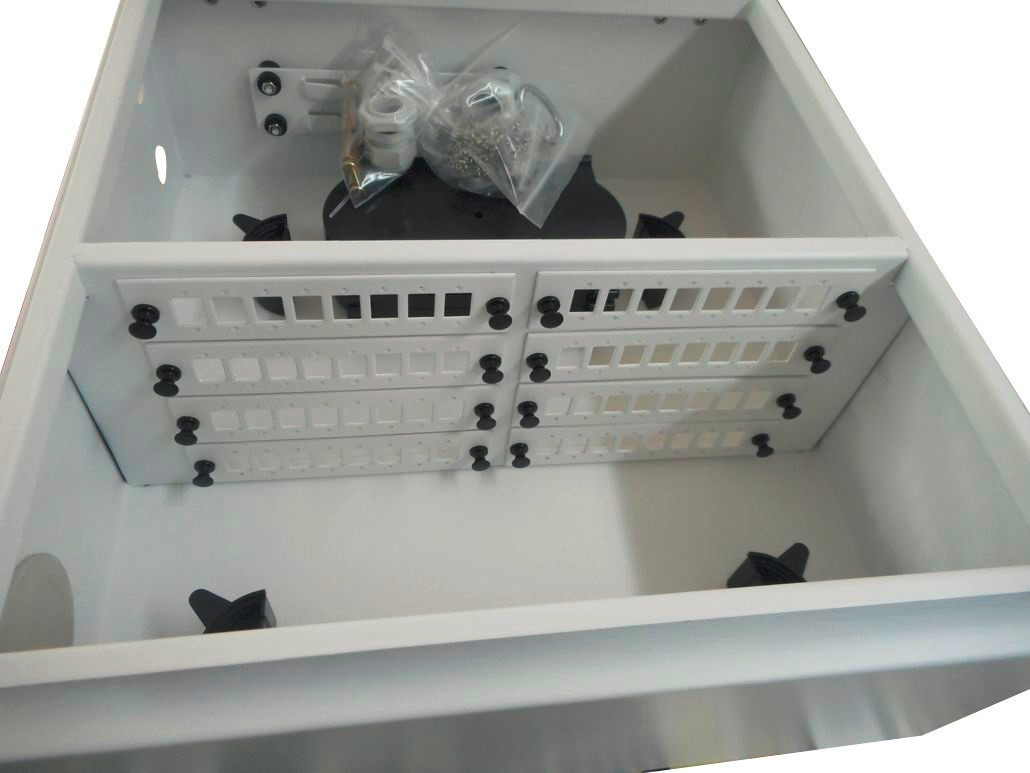

(WDB-OW-Ⅰ) Outdoor Optial Fiber Wall
Outdoor fiber optic distribution box is used for fiber connection, distribution and protection. It is made of metal, can be wall mounted or pole mounted and facilitates the test and refit of the lines.
The cabinet has functions of cabe termination, spicing, distribution and cross-connection.
Soid and fuy-cosed structure with the advantages of good performance of dust-proof, peasing and neat appearance.
Wa mountabe instaations.
With stee pates can manage both singe fiber and ribbon & bunde fiber cabes.
FC, C, SC, ST output interfaces optiona.
arge working space to integrate the pigtai, cabes and adapters.
Made of cod-roing stee, static spreading-pastic, sma dimension and exquisite, easy for operation.
Specia design ensures the excess fiber cords and pigtais in good order.

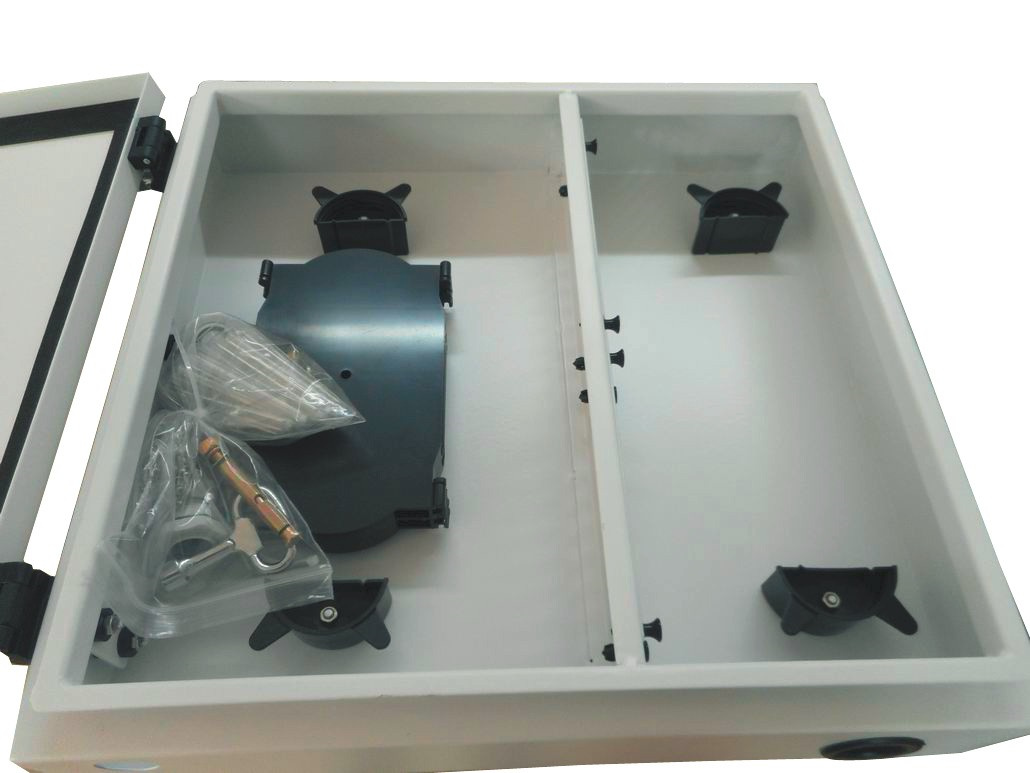

Inner components as foows:
Fiber Optic Spice Tray: storing fiber connectors (together with the protective components) and the spare fibers.
Fixing Device: used for fixing the fiber protective tubes, the fiber reinforced cores and the distribution pigtais.
Item | Parameter |
Adaptor Type | SC,FC,ST,Dupex SC,Dupex C |
Capacity | 12,24 fibers |
Body Materia | Cod roed stee or stainess stee |
Surface Treatment | Powder coating back or white coor |
Instaation Method | Wa mounted(poe mounted optiona) |
Size Dimension(mm) | 465(W) x383(H)x11(D) |
Strengthen Member Fixation | Yes |
Bending Radius(mm) | >40 |
Working Temperature | -20 (℃) to +60(℃) |
Storage Temperature | -25 (℃) to +70(℃) |
Reative Humidity | <90%RH |
CATV, AN, WAN network
FTTX Systems
Teecommunication network
Suitabe for Pigtai, ribbon and bunch cabe connect distribution
Used for wa-mounted appications
