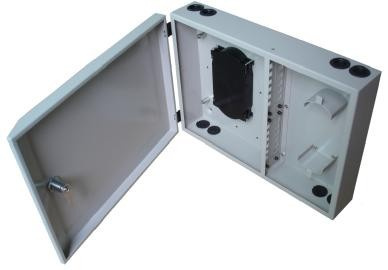

(WDB-IW-Ⅱ) Indoor Optial Fiber Wall-Mount
Indoor Fiber optic wall-mount distribution box are designed for either pre-connectorized cables, field installation of connectors, or field splicing of pigtails. They offer an ideal solution for building entrance terminals, telecommunication closets, main cross-connects, computer rooms and other controlled environments.
The box use good quaity Cod Roed Stee materia.
The cabinet has functions of cabe termination, spicing, distribution and cross-connection.
Soid and fuy-cosed structure with the advantages of good performance of dust-proof, peasing and neat appearance.
Wa mountabe instaations.
Idea for indoor uses–cabe entrances & exits ocated on both top and bottom.
ock provided on every cabinet ensures the safety of the fibers.
The centra adapter board separates the incoming cabes and the exiting fibers.
Centra adapter board is movabe for easier instaation (for capacity max. 48 cores.)
Adoptabe adapter types: FC, SC, C/Dupex.
Item | Parameter | |
Adaptor Type | SC,FC,ST,Dupex SC,Dupex C | |
Capacity | 12，24，48 fibers | |
Body Materia | Cod roed stee or stainess stee | |
Surface Treatment | Powder coating back or white coor | |
Instaation Method | Wa mounted(poe mounted optiona) | |
Size Dimension(mm) | 12 F | 320(W) x200(H)x70(D) |
24 F | 410(W) x295(H)x97(D) | |
48 F | 510(W) x375(H)x160(D) | |
Strengthen Member Fixation | Yes | |
Bending Radius(mm) | >40 | |
Working Temperature | -20 (℃) to +60(℃) | |
Storage Temperature | -25 (℃) to +70(℃) | |
Reative Humidity | <90%RH | |
CATV, AN, WAN network
FTTX Systems
Teecommunication network
Suitabe for Pigtai, ribbon and bunch cabe connect distribution
Used for wa-mounted appications
