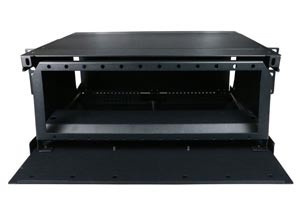

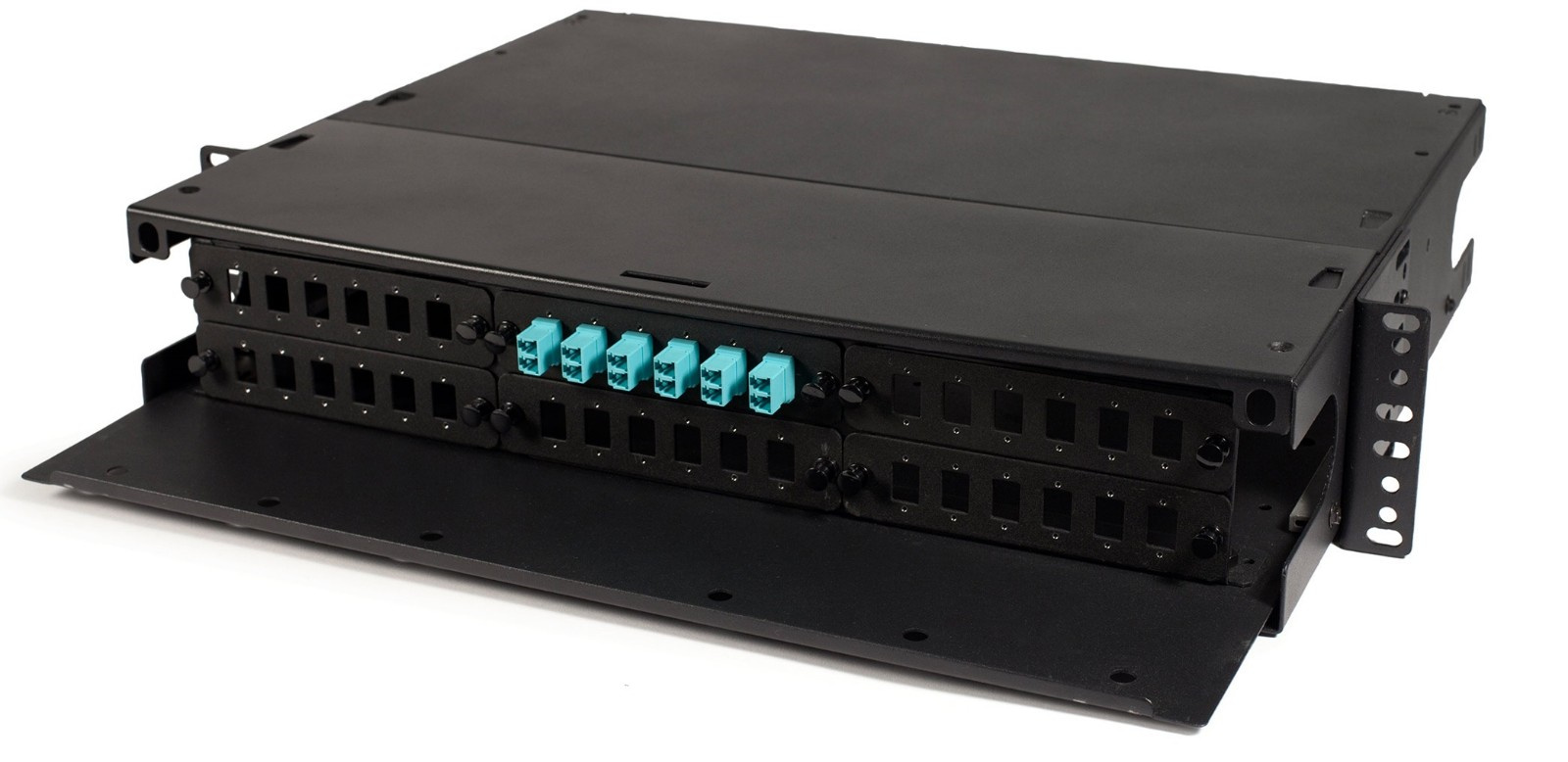

(LGX-ME) LGX MPO/MTP Modular Enclosures
(LGX-ME) MPO/MTP Modular Enclosures, designed for 19″rack-mount cabinet, to hold LGX-CM MPO/MTP cassette module, LGX-AP adaptor plante or LGX-BP blank plante. It provides high density flexible system for managing fiber terminations, connections, and patching in datacenter application to maximizing rack space utilization and minimizing floor space. UHD-CM MPO/MTP cassette module must be ordered separately.
Siding drawer design for easy and fast operation.
19'' or 23'' Rack mount, made of cod roed stee sheet.
Incude 1U/2U/4U cabe management design.
Easy to operate and maintain.
Accepts oose tube, distribution and pre-terminated cabes.
Moduar system management, easy reconfiguration for moves, adds and changes.
Item | Mode | Dimension(W*H*D) | Cassette Qty | Fiber Count |
1 | GX-ME-1U | 482.6*1U*355.6 | 3 | Max.72 |
2 | GX-ME-2U | 482.6*2U*355.6 | 6 | Max.144 |
4 | GX-ME-4U | 482.6*4U*355.6 | 12 | Max.288 |
Note: 1U = 44.45 mm
Operating Condition:
Operating temperature : -25°C~+40°C
Storage temperature : -25°C~+55°C
Reative humidity : ≤85%(+30°C)
Pressure : 70Kpa~106Kpa
Data Center AN/SAN
Active Device/Transceiver Interface
Fiber to the home (FTTH)
High density cabe wiring system
High integrated equipment and devices
