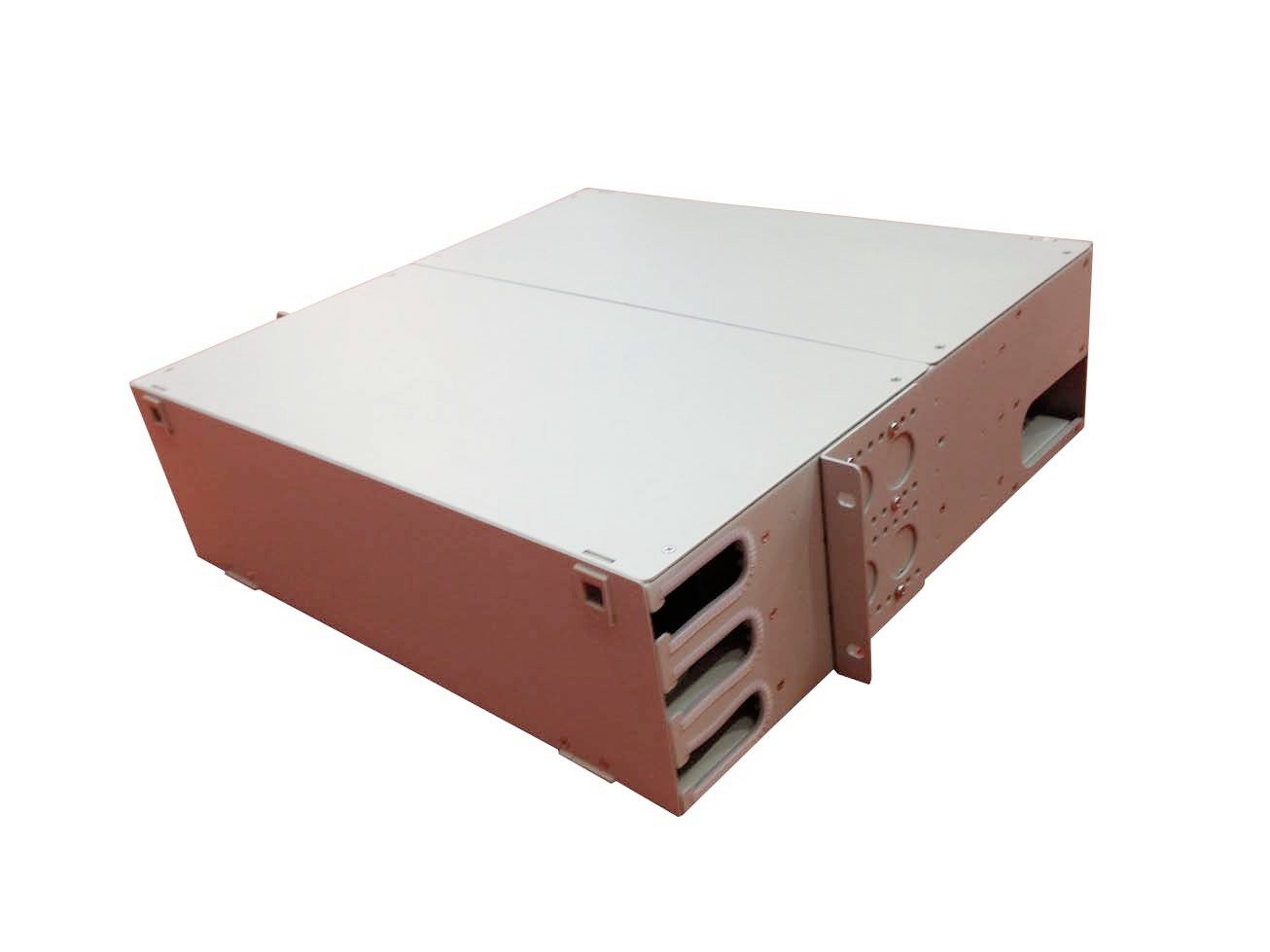

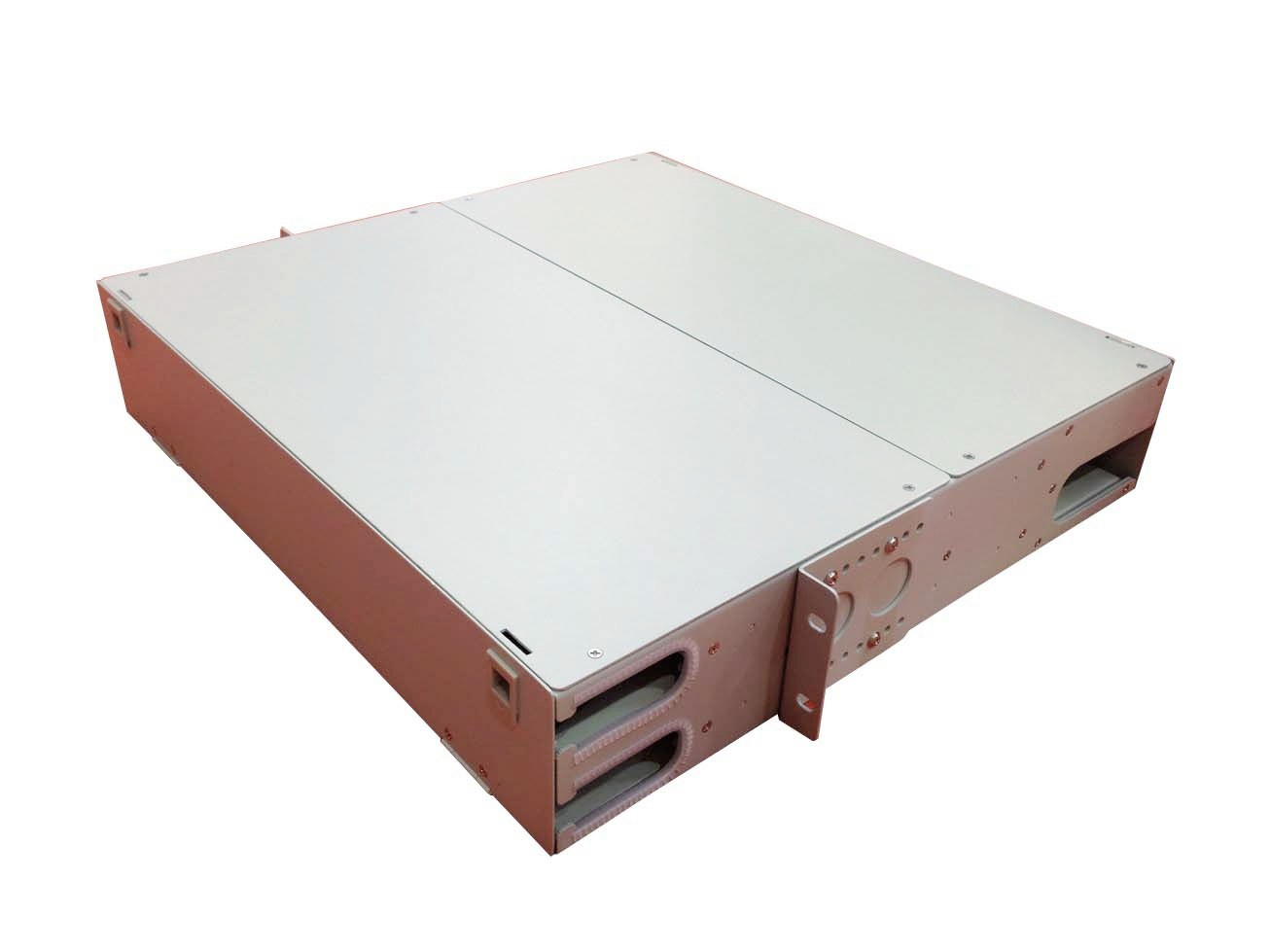

(UHD-ME) UHD MPO/MTP Modular
(UHD-ME) MPO/MTP Modular Enclosures, designed for 19″rack-mount cabinet, to hold UHD-CM MPO/MTP cassette module. It provides high density flexible system for managing fiber terminations, connections, and patching in datacenter application to maximizing rack space utilization and minimizing floor space. UHD-CM MPO/MTP cassette module must be ordered separately.

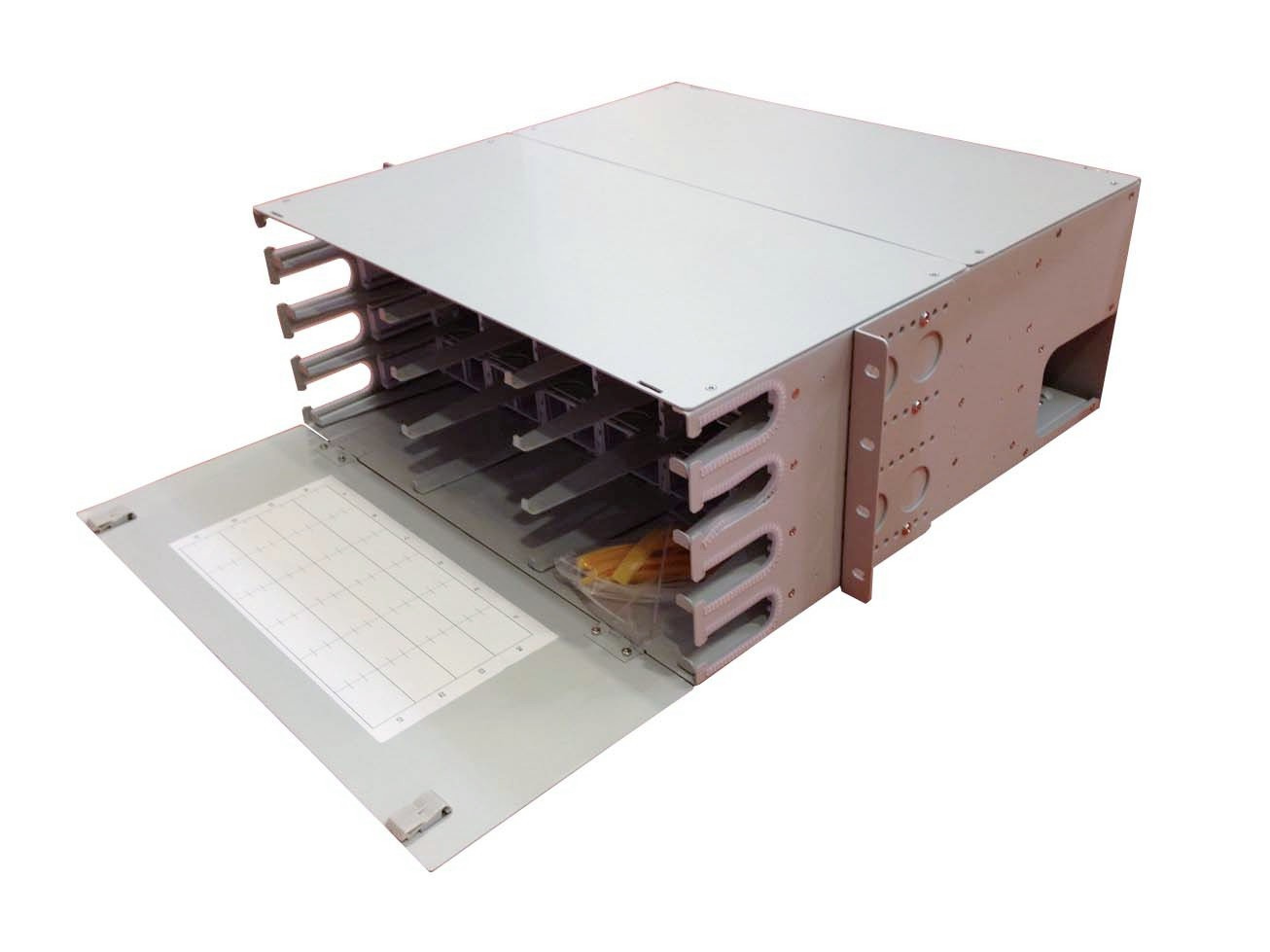

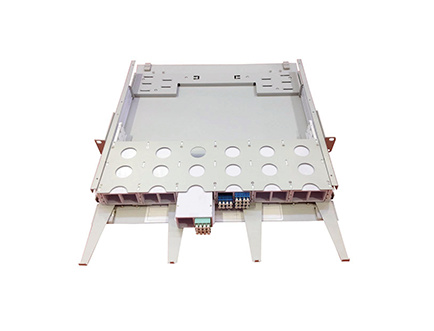

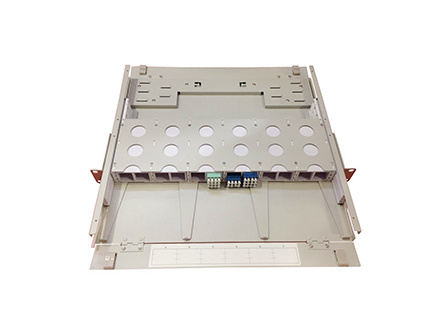

● Sliding drawer design for easy and fast operation.
● 19'' or 23'' Rack mount, made of cold rolled steel sheet.
● Include 1U/2U/3U/4U cable management design.
● Easy to operate and maintain.
● 100% tested before delivery.
● Accepts loose tube, distribution and pre-terminated cables.
● Modular system management, easy reconfiguration for moves, adds and changes.
Item | Model | Dimension(W*H*D) | Drawer Qty | Cassette Qty | Fiber Count |
1 | UHD-ME-1U | 482.6*1U*420 | 1 | 6 | Max.144 |
2 | UHD-ME-2U | 482.6*2U*420 | 2 | 12 | Max.288 |
3 | UHD-ME-3U | 482.6*3U*420 | 3 | 18 | Max.432 |
4 | UHD-ME-4U | 482.6*4U*420 | 4 | 24 | Max.576 |
Note: 1U = 44.45 mm
Operating Condition:
● Operating temperature : -25°C~+40°C
● Storage temperature : -25°C~+55°C
● Relative humidity : ≤85%(+30°C)
● Pressure : 70Kpa~106Kpa
● Data Center LAN/SAN
● Active Device/Transceiver Interface
● Fiber to the home (FTTH)
● High density cable wiring system
● High integrated equipment and devices
