Fiber Splice Protection Sleeves

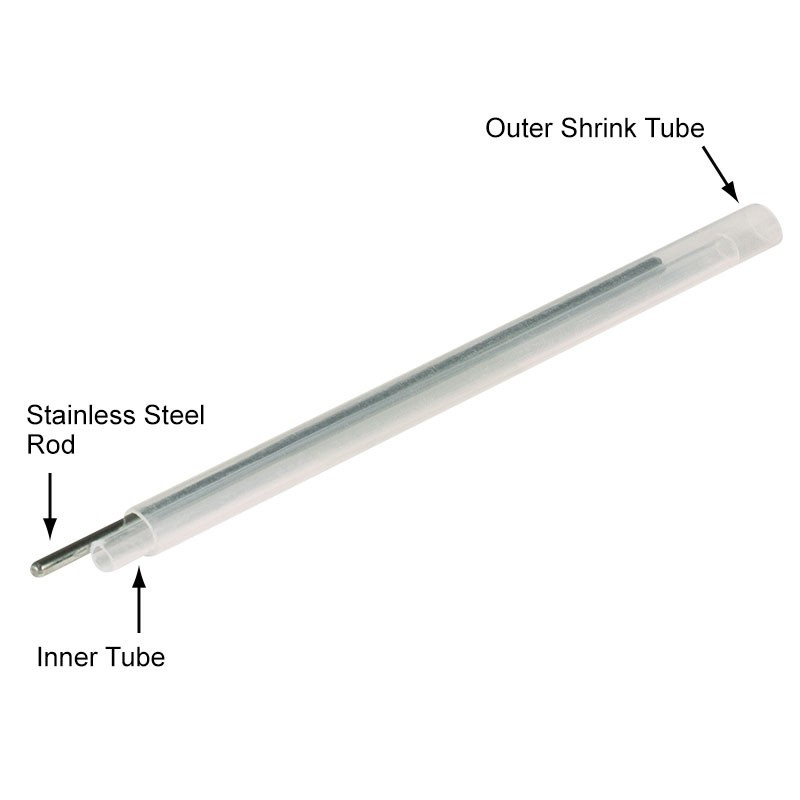

Fiber optic splice protection sleeves are used for optical fiber fusion protection, it can protecting and supporting the fusion splice point.
● Protect connection point,improve the mechanical strength, it is most reliable way to protect the fusion.
● Easy to operate, reducing the risk of fiber damage during installation.
● Transparent tube, it is easy to see the status of fiber optical closure.
● Sealing structure let closure have good resistance to temperature and humidity performance.
Item | Type | Length of tube (L) | Hot-melt tube (D) | Steel needle (d) | |||
After recover | Length (mm) | Inside dia | Length (mm) | Inside dia | Length (mm) | ||
1 | XDK-S-1560 | 3.0 | 60 | 1.3 | 60 | 1.5 | 55 |
2 | XDK-S-1545 | 3.0 | 45 | 1.3 | 45 | 1.5 | 40 |
3 | XDK-S-1260 | 2.5 | 60 | 1.3 | 60 | 1.2 | 55 |
4 | XDK-S-1245 | 2.5 | 45 | 1.3 | 45 | 1.2 | 40 |
Min.shrinks temperatuer | 120℃ | ||||||
Work temperature high | -55°C~100°C | ||||||
per package | 100pcs | ||||||
● Optical fiber distribution frame
● Optical fiber closure
● Optical fiber termination box
