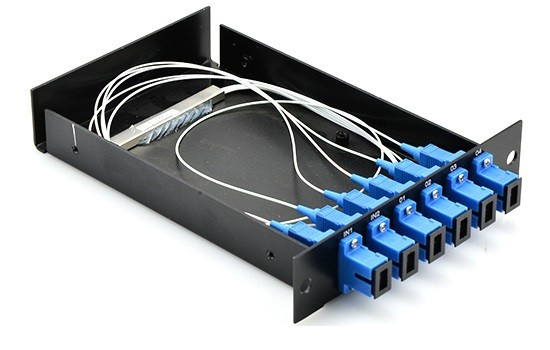

PLC Optial Fiber Splitter with LGX Cassette
(PLC splitter) Planar lightwave circuit splitter, a type of optical power management device that is fabricated using silica optical waveguide technology. LGX cassette splitter has a strong metal box to house the PLC splitters. It can be used alone or be easily installed in standard fiber patch panel or fiber enclosure. The standard LGX mental box housing provides a plug-and-play method for integration in the network, which eliminates any risk during installation. No filed splicing or skilled personnel is required during deployment.
● Low insertion loss and low PDL.
● Exceptional reliability and stability.
● Standard LGX cassette design to be fit in 1RU and 4RU rack mount chassis.
● Modular structure, easy for operation, construction and maintenance.
● Convenient to carry out splitting on modules by existing cabling system.
● Reduce network construction costs.
● Factory pre-terminated, stable performance.
● Secure protective device for radius curvature of fibers.
Fiber Parameters
1×N PLC Splitter | ||||
Parameters | 1×2 | 1×4 | 1×8 | 1×16 |
Operating Wavelength（nm） | 1260~1650 | |||
Fiber Type | G657A1 or customer specified | |||
Insertion Loss (dB) (P/S Grade) | ≤3.8/4.0 | ≤7.1/7.3 | ≤10.2/10.5 | ≤13.5/13.7 |
Loss Uniformit（dB） | ≤0.4 | ≤0.6 | ≤0.8 | ≤1.2 |
Polarization Dependent Loss（dB） | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.25 |
Return Loss(dB)（P/S Grade） | ≥55/50 | ≥55/50 | ≥55/50 | ≥55/50 |
Directivity（dB） | ≥55 | ≥55 | ≥55 | ≥55 |
Wavelength Dependent Loss（dB） | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.5 |
Temperature Stability（-40~85℃）（dB） | ≤0.4 | ≤0.4 | ≤0.4 | ≤0.5 |
Operating Temperature(℃) | -40~+85 | |||
Storage Temperature(℃) | -40~+85 | |||
2×N PLC Splitter | ||||
Parameters | 2×2 | 2×4 | 2×8 | 2×16 |
Operating Wavelength（nm） | 1260~1650 | |||
Fiber Type | G657A1 or Customer specified | |||
Insertion Loss (dB) P/S Grade） | ≤3.9/4/2 | ≤7.3/7.6 | ≤10.5/11 | ≤14.4/14.6 |
Loss Uniformity（dB） | ≤0.6 | ≤1.0 | ≤1.2 | ≤1.5 |
Polarization Dependent Loss（dB） | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.3 |
Return Loss(dB)(P/S Grade) | ≥55/50 | ≥55/50 | ≥55/50 | ≥55/50 |
Directivity（dB） | ≥55 | ≥55 | ≥55 | ≥55 |
Wavelength Dependent Loss（dB） | ≤0.3 | ≤0.4 | ≤0.5 | ≤0.5 |
Temperature Stability (-4o ～ 85 ℃)(dB) | ≤0.5 | |||
Operating Temperature (℃) | -40～85 | |||
Storage Temperature (℃) | -40～85 | |||
Max. Power(mW) | 500 | |||
Notes:
1. All values specified are without connectors.
2. IL will increase 0.2dB when add one connector,Return Loss≥55dB(APC)，≥50dB(UPC)
3. Customized service is available.
4. Connector and Adaptors : SC, LC or Other
Cassette Parameters
Item | Unit | Parameters |
Dimension | mm | L129 * W29 * D157 |
Material | / | Aluminum or Steel |
Adaptor Type | / | SC LC FC or Customer specified |
Colour | / | Black or White |
Fiber Diameter | mm | 0.9 |
● CATV, LAN, WAN network
● FTTX Systems
● Telecommunication network
● EPON/GPON
● DWDM and CWDM Systems
