(ODF-RR-Ⅰ)Rotary Rack-mount Fiber

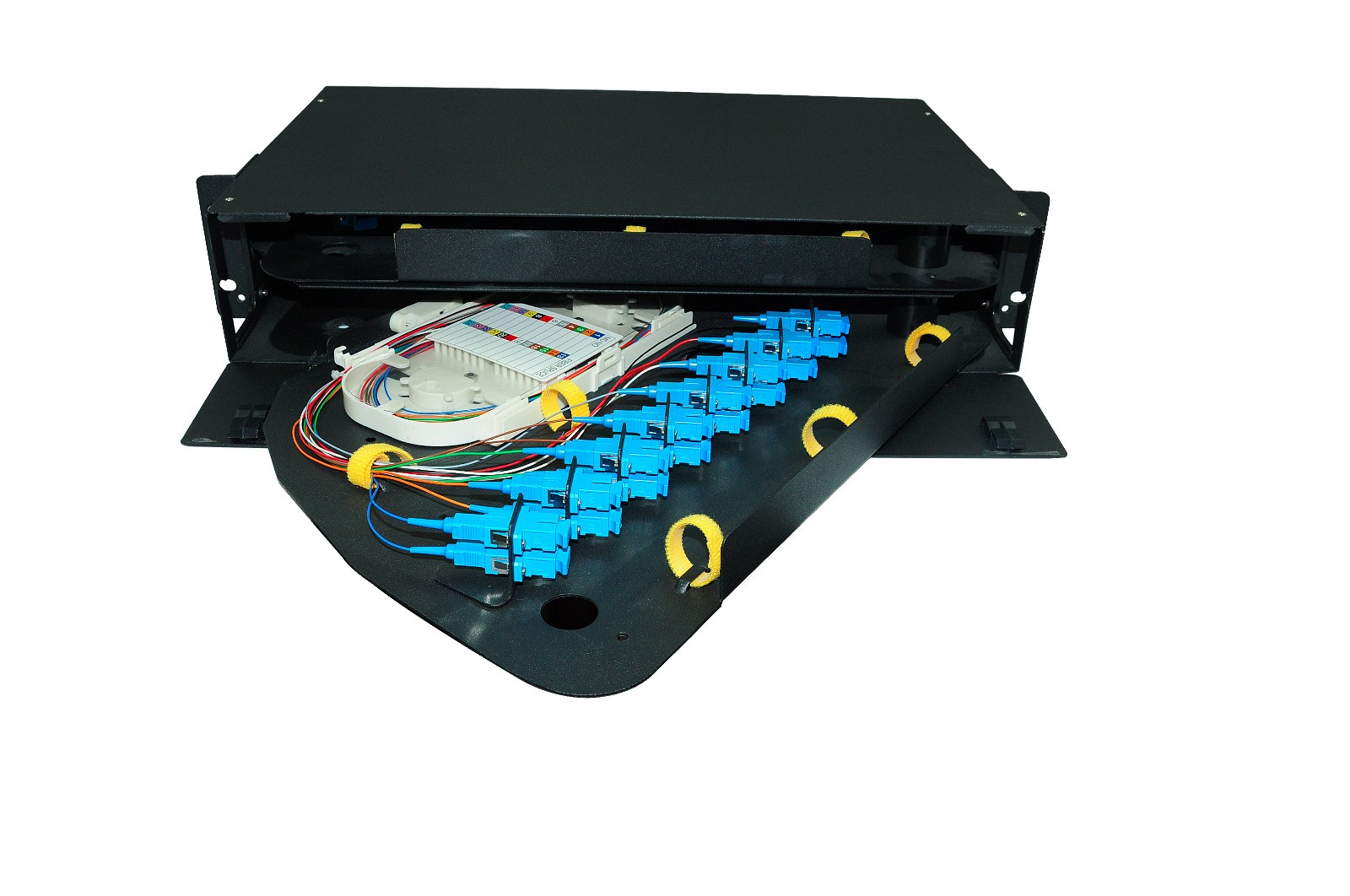

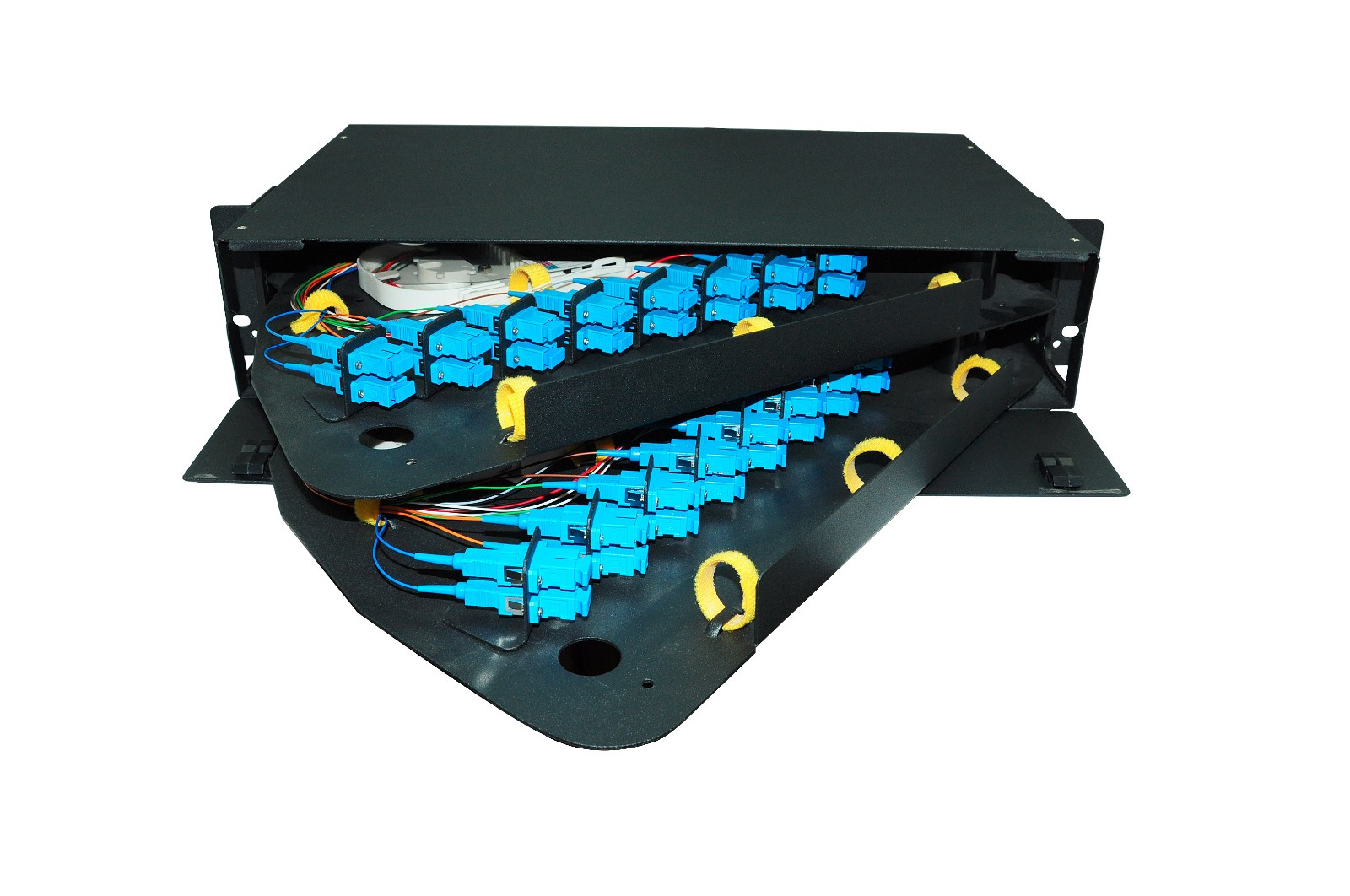

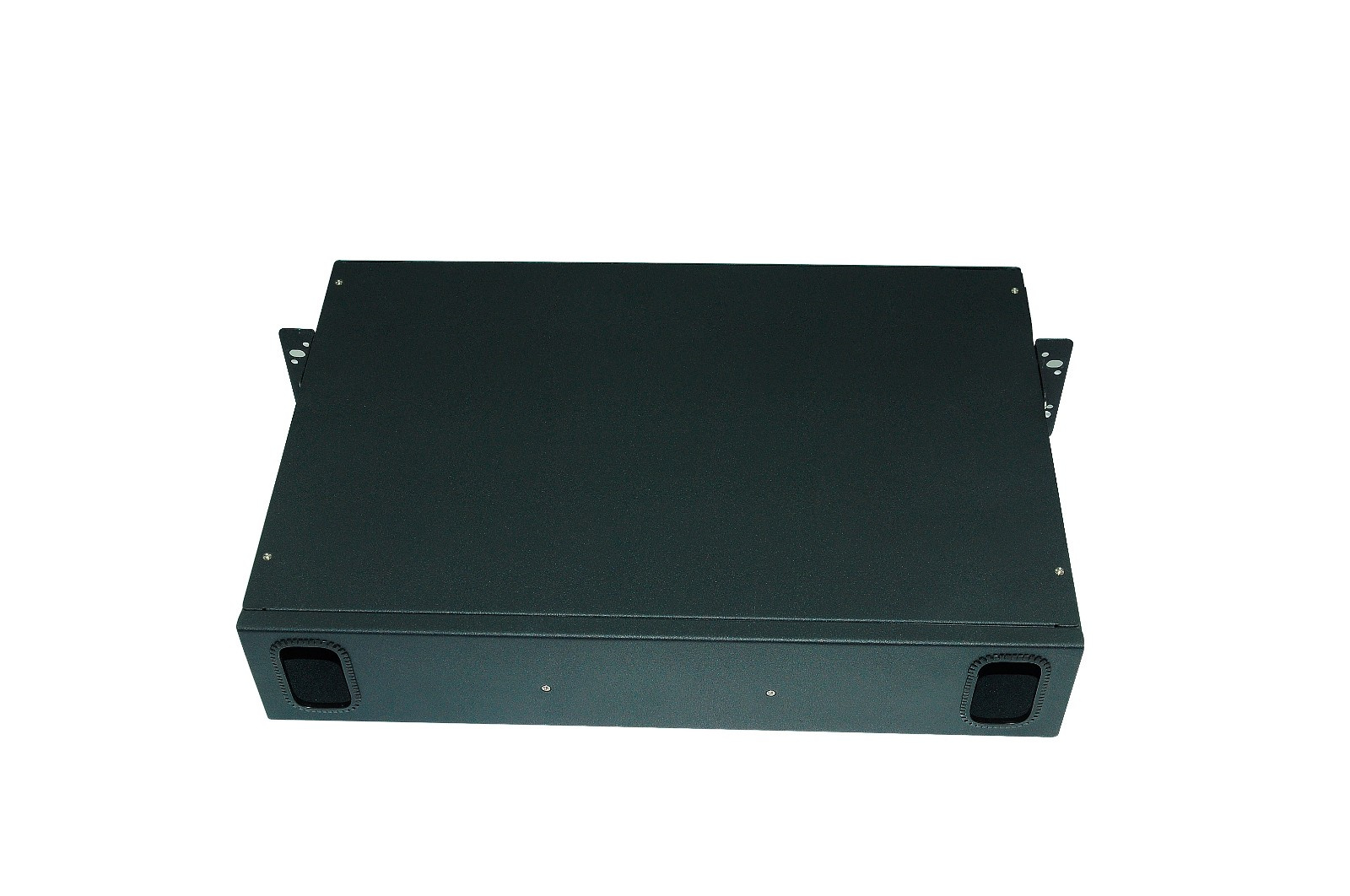

Rotary Rack-mount Fiber Optic Distribution Frame/Patch Panel is made of cold roll steel, splice tray can be rotated out. It could be pre-installed with various kinds of fiber optic adapters and pigtails. It is ideal for indoor fiber optic cables connection storage, distribution and management. 19-inch rack mount for ST, SC, LC, MTRJ, FC adapters.
● Standard size, Splice tray inside changeable.
● Can be used in 19'', 23'' standard distribution frame.
● Suitable for ribbon and single fiber.
● Various panel plate to fit different adapter interface.
● Front mark on the plate is easy for identification and operation.
● 24C, 48C, 72C, 96C optional, with or without fiber optic pigtails and adapters.
● Cold-roll steel or Aluminum material optional.
● Electrostatic Powder spraying,Black or Hoar color optional.
Model | Fiber Quantity | Height | Dimension(cm) | Adapter Type |
ODF-RR1U-Ⅰ-24 | 24 | 1U | 48x29x4.45 | SC-DX adapter |
ODF-RR2U-Ⅰ-48 | 48 | 2U | 48x32x8.8 | SC-DX adapter |
ODF-RR3U-Ⅰ-72 | 72 | 3U | 48x32x13.2 | SC-DX adapter |
ODF-RR4U-Ⅰ-96 | 96 | 4U | 48x32x17.6 | SC-DX adapter |
Other core count libraries accept customization, Adapter type according to order requirements | ||||
Ordering Information:
ODF﹣R R 1U-Ⅰ- 24
①②③④⑤⑥
① Name: “ODF”: optic distribution frame
② Type: “R”: rack-mount type
③ Type: “R”: Rotary type
④ 1U: International standard product height
⑤ Type: “Ⅰ”：Product Type
⑥ Fiber quantity: “24”: 24 cores
● CATV, LAN, WAN Networks
● Telecommunication Networks
● FTTH, FTTO and FTTD
