PLC Optial Fiber Splitter with Steel Tube
(PLC splitter) Planar lightwave circuit splitter, a type of optical power management device that is fabricated using silica optical waveguide technology. Steel Tube splitter has a more compact stainless tube package which provides stronger fiber protection, and its fiber ends are all terminated with fiber optic connectors. XDK provides whole series of 1xN and 2xN splitter products that are tailored for specific applications.
● Low insertion loss and low PDL.
● High channel counts.
● Exceptional reliability and stability.
● Wide operating wavelength.
● Wide operating temperature.
● Compact design.
1×N PLC Splitter | |||||||
Parameters | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | 1×128 |
Operating Wavelength（nm） | 1260~1650 | ||||||
Fiber Type | G657A1 or customer specified | ||||||
Insertion Loss (dB) (P/S Grade) | ≤3.8/4.0 | ≤7.1/7.3 | ≤10.2 /10.5 | ≤13.5 /13.7 | ≤16.5 /16.9 | ≤20.5 /21.0 | ≤23.8 /24.2 |
Loss Uniformit（dB） | ≤0.4 | ≤0.6 | ≤0.8 | ≤1.2 | ≤1.5 | ≤2.0 | ≤2.5 |
Polarization Dependent Loss（dB） | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.25 | ≤0.3 | ≤0.35 | ≤0.4 |
Return Loss(dB)（P/S Grade） | ≥55/50 | ≥55/50 | ≥55/50 | ≥55/50 | ≥55/50 | ≥55/50 | ≥55/50 |
Directivity（dB） | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 |
Wavelength Dependent Loss（dB） | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 |
Temperature Stability（-40~85℃）（dB） | ≤0.4 | ≤0.4 | ≤0.4 | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 |
Operating Temperature(℃) | -40~+85 | ||||||
Storage Temperature(℃) | -40~+85 | ||||||
2×N PLC Splitter | |||||||
Parameters | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 | 2×128 |
Operating Wavelength（nm） | 1260~1650 | ||||||
Fiber Type | G657A1 or Customer specified | ||||||
Insertion Loss (dB) P/S Grade） | ≤3.9/4/2 | ≤7.3/7.6 | ≤10.5/11 | ≤14.4 /14.6 | ≤17.4 /17.9 | ≤21.0/21.5 | ≤24.5 /25.0 |
Loss Uniformity（dB） | ≤0.6 | ≤1.0 | ≤1.2 | ≤1.5 | ≤1.8 | ≤2.2 | ≤2.5 |
Polarization Dependent Loss（dB） | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.4 |
Return Loss(dB)(P/S Grade) | ≥55/50 | ≥55/50 | ≥55/50 | ≥55/50 | ≥55/50 | ≥55/50 | ≥55/50 |
Directivity（dB） | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 |
Wavelength Dependent Loss（dB） | ≤0.3 | ≤0.4 | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 |
Temperature Stability (-4o ～ 85 ℃)(dB) | ≤0.5 | ||||||
Operating Temperature (℃) | -40～85 | ||||||
Storage Temperature (℃) | -40～85 | ||||||
Max. Power(mW) | 500 | ||||||
Notes:
1. All values specified are without connectors.
2. IL will increase 0.2dB when add one connector, Return Loss≥55dB(APC)，≥50dB(UPC)
3. Customized service is available.
Package size

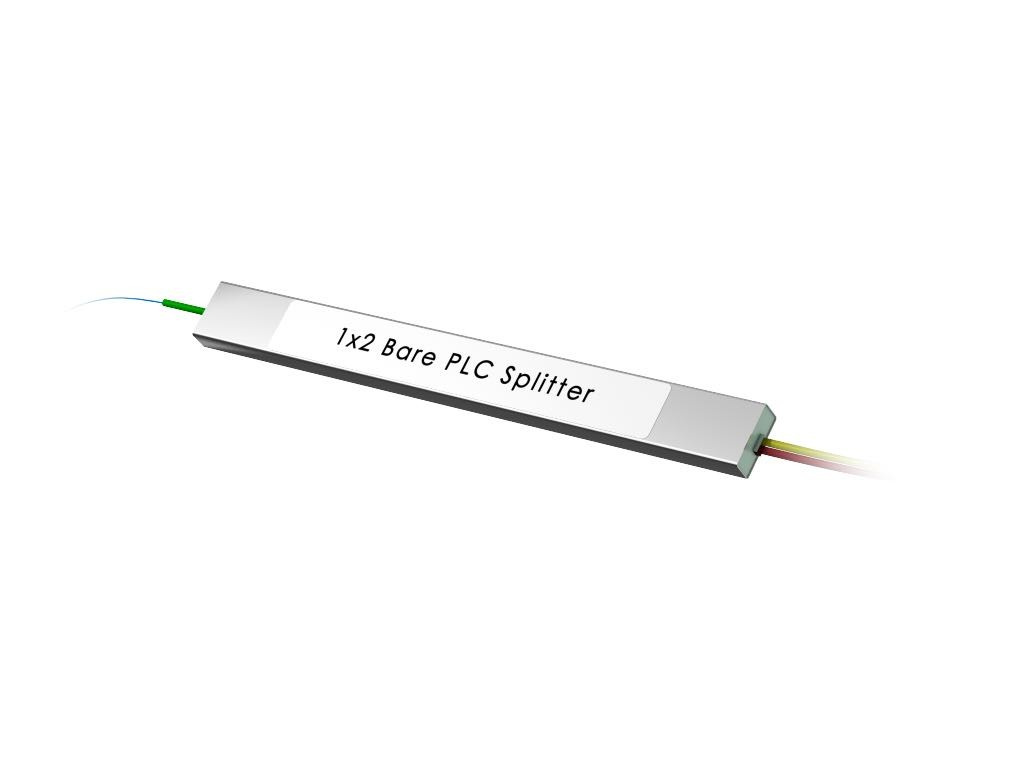

Bare fiber type:
Item | Unit | 1*2/1*4/1*8 | 1*16/1*32 | 1*64 | 2*2/2*4/2*8 | 2*16 / 2*32 |
L*W*H | mm | 40*4*4 | 50*7*4 | 60*12*4 | 50*4*4 | 60*7*4 |

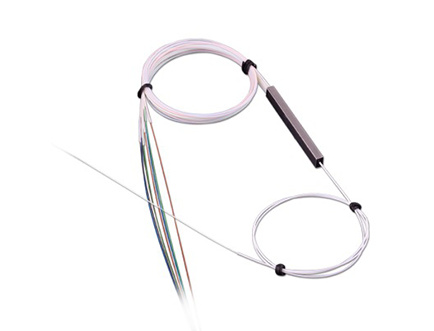

0.9mm Loose tube type:
Item | Unit | 1*2/1*4/1*8 2*2/2*4/2*8 | 1*16 | 1*32 | 1×64 | 2×16 | 2×32 |
L*W*H | mm | 60*7*4 | 60*12*4 80*20*6 | 100*40*6 | 80*12*4 | 100*20*6 | |
● CATV, LAN, WAN network
● FTTX Systems
● Optical fiber communication system
● Telecommunication network
● EPON/GPON
