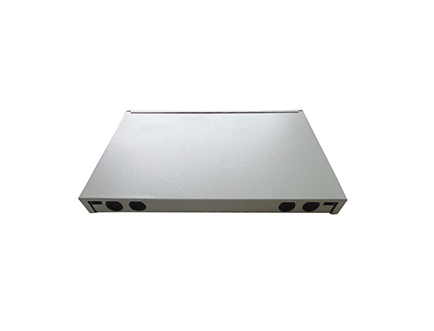

(ODF-RS-Ⅰ)Slidable Rack-mount Fiber

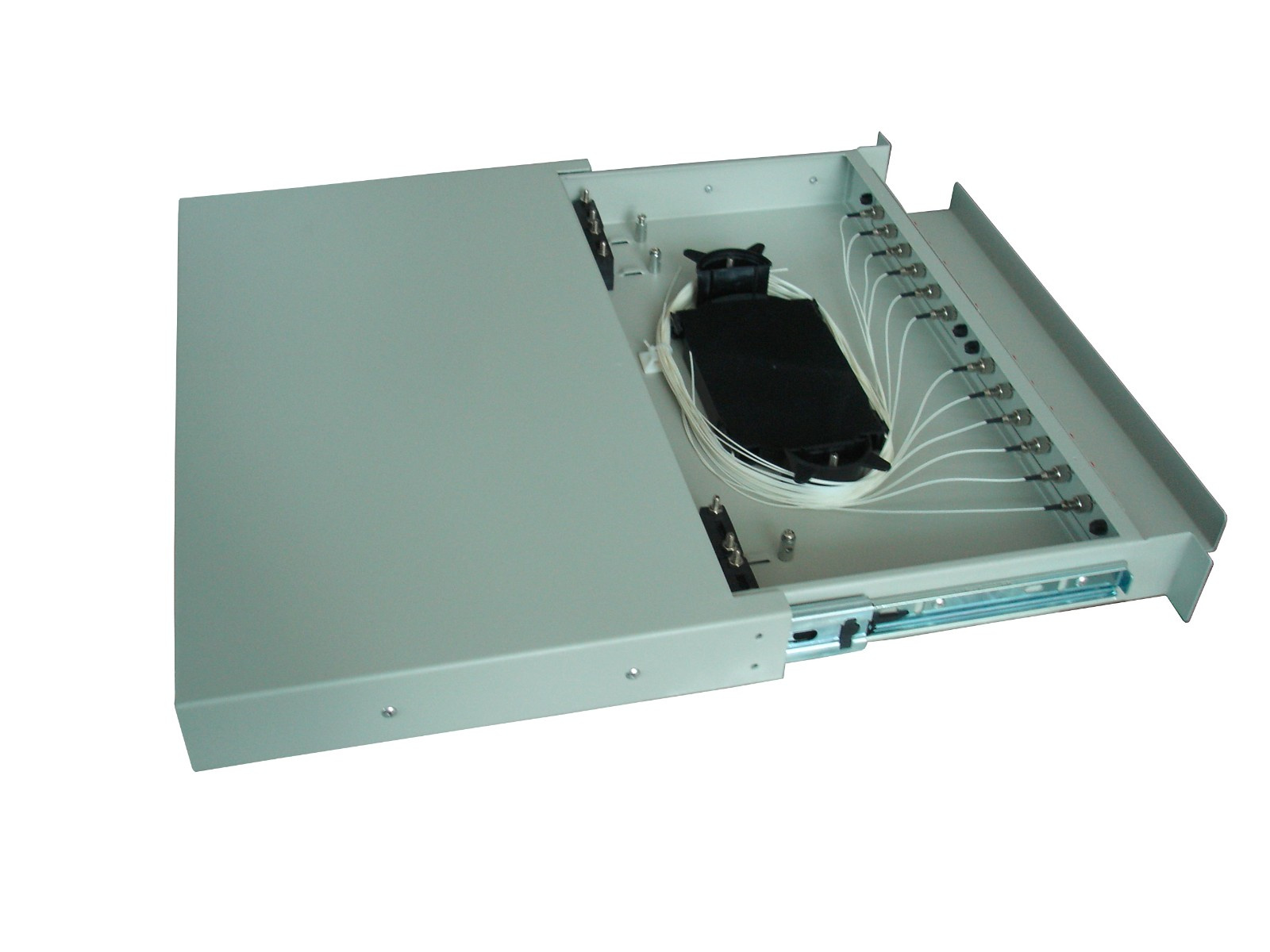

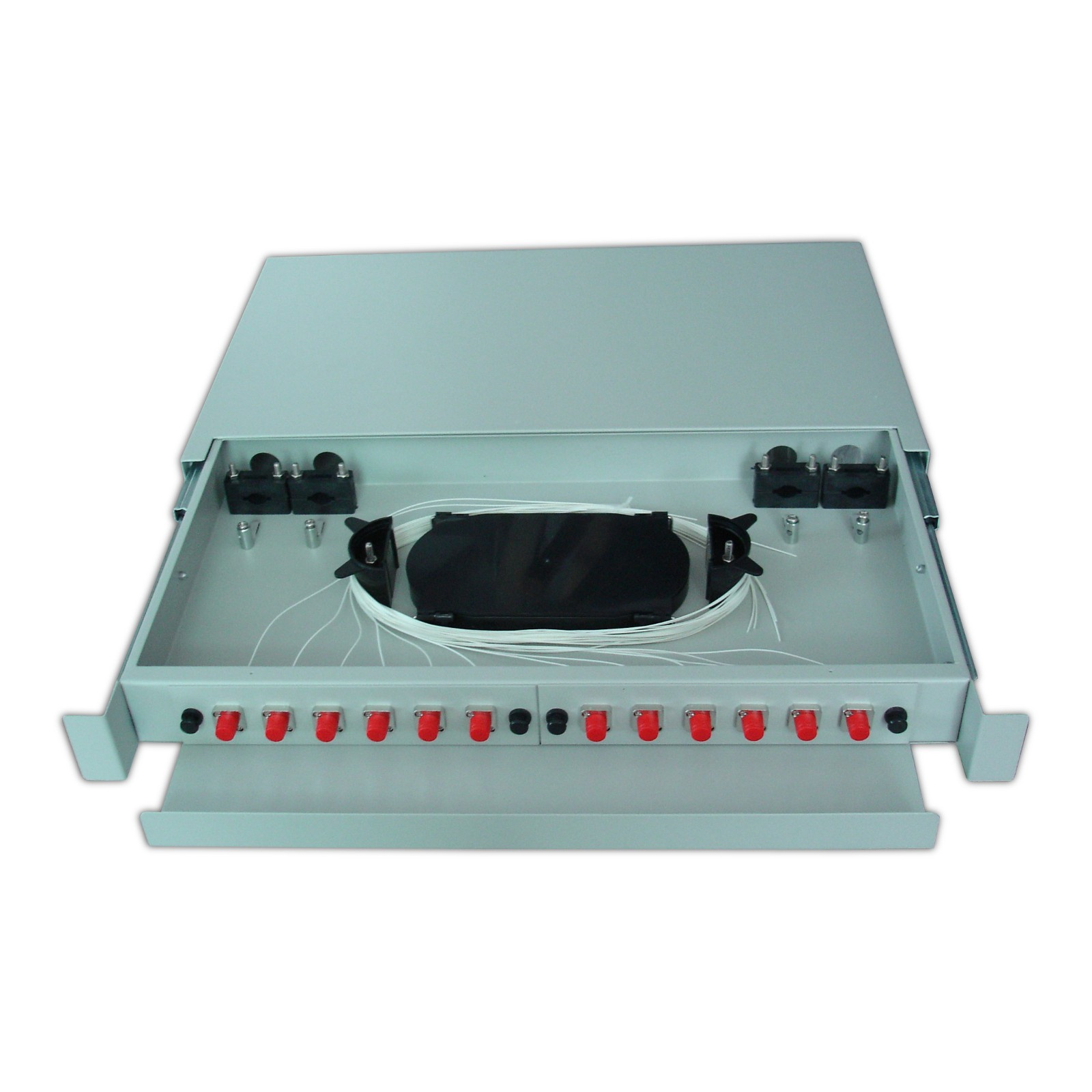

Slidable Rack-mount Fiber Optic Distribution Frame has aluminum sliding fittings with self-locking functions prevent the drawer from falling when moved; 19-inch rack mount for ST, SC, LC, MTRJ, FC adapters. The drawer is the holding board for splicing, easy to withdraw the fibers when testing and distributing.
● Standard size, light weight and reasonable structure
● Slide out drawer for easy cable management
● Suitable for ribbon and single fiber
● Compact design for space saving
● Various panel plate to fit different adapter interface
● Front mark on the plate is easy for identification and operation
● Easy for management and operation
Model | Fiber Quantity | Height | Dimension(cm) | Adapter Type |
ODF-RS1U-Ⅰ-12 | 12 | 1U | 48x32x4.45 | SC-SX adapter |
ODF-RS1U-Ⅰ-24 | 24 | 1U | 48x32x4.45 | SC-DX adapter |
ODF-RS2U-Ⅰ-24 | 24 | 2U | 48x32x8.8 | SC-SX adapter |
ODF-RS2U-Ⅰ-48 | 48 | 2U | 48x32x8.8 | SC-DX adapter |
ODF-RS3U-Ⅰ-36 | 36 | 3U | 48x32x13.2 | SC-SX adapter |
Other core count libraries accept customization, Adapter type according to order requirements | ||||
Ordering Information:
ODF﹣R S 1U-Ⅰ- 12
① ②③④ ⑤ ⑥
① Name: “ODF”: optic distribution frame
② Type: “R”: rack-mount type
③ Type: “S”: slidable type
④ 1U: International standard product height
⑤ Type: “Ⅰ”：Product Type
⑥ Fiber quantity: “12”: 12 cores
● CATV ,LAN, WAN Networks
● Telecommunication Networks,
● FTTH, FTTO and FTTD
