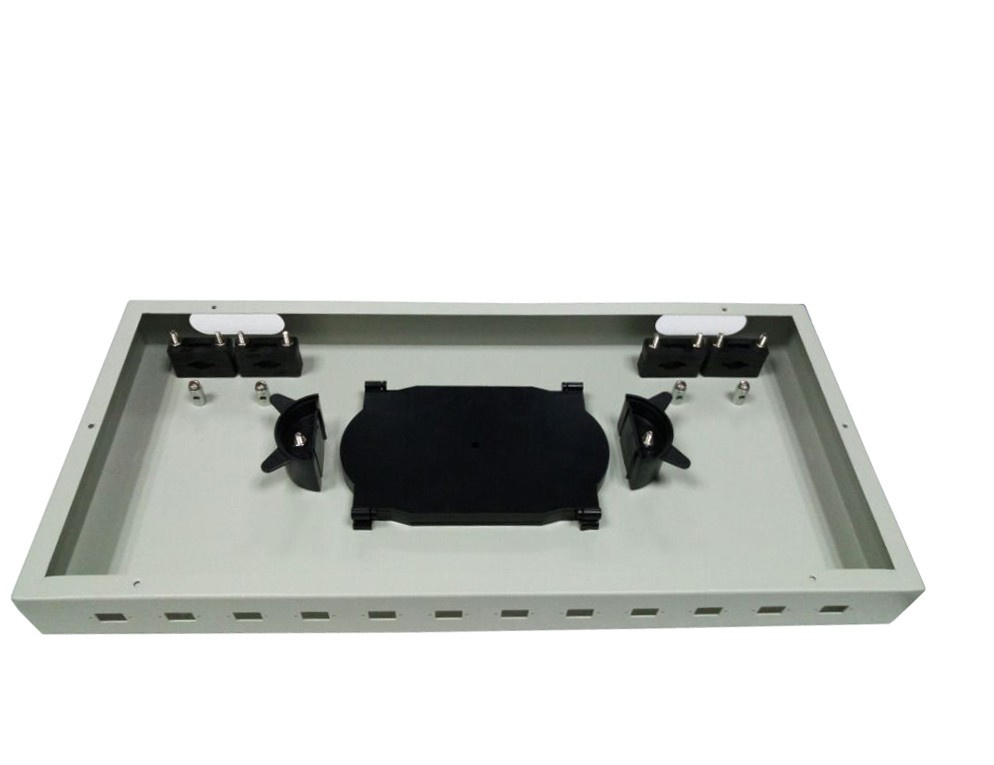

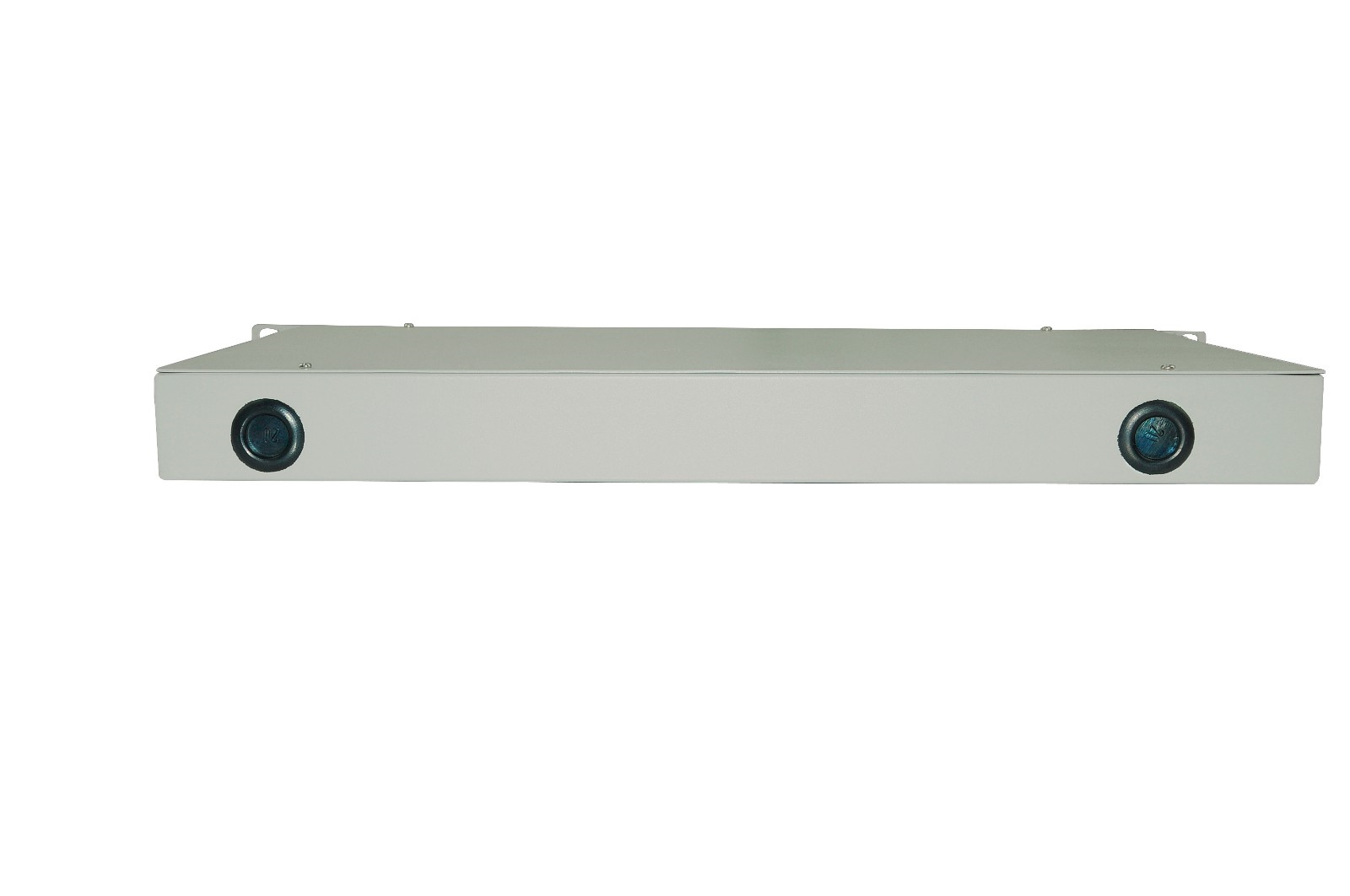

(ODF-RF-Ⅰ)Fixed Rack-mount Fiber
Fixed rack-mount fiber optic distribution frame/patch pannel with distribution center holds fusion splice trays and provides an economical way of splicing a small number of fiber cables in communication room or existing equipment racks where space is constrained.19-inch rack mount for ST, SC, LC, MTRJ, FC adapters.
● Standard size, light weight and reasonable structure.
● Slide out drawer for easy cable management.
● Suitable for ribbon and single fiber.
● Compact design for space saving.
● Various panel plate to fit different adapter interface.
● Front mark on the plate is easy for identification and operation.
● Easy for management and operation.
Model | Fiber Quantity | Height | Dimension(cm) | Adapter Type |
ODF-RF1U-Ⅰ-12 | 12 | 1U | 48x22.5x4.45 | SC-SX adapter |
ODF-RF1U-Ⅰ-24 | 24 | 1U | 48x22.5x4.45 | SC-DX adapter |
ODF-RF2U-Ⅰ-24 | 24 | 2U | 48x22.5x8.8 | SC-SX adapter |
ODF-RF2U-Ⅰ-48 | 48 | 2U | 48x22.5x8.8 | SC-DX adapter |
ODF-RF3U-Ⅰ-36 | 36 | 3U | 48x22.5x13.2 | SC-SX adapter |
Other core count libraries accept customization, Adapter type according to order requirements | ||||
Ordering Information:
ODF﹣R F 1U-Ⅰ- 12
① ②③④ ⑤ ⑥
① Name: “ODF”: optic distribution frame
② Type: “R”: rack-mount type
③ Type: “F”: Fixed type
④ 1U: International standard product height
⑤ Type: “Ⅰ”：Product Type
⑥ Fiber quantity: “12”: 12 cores
● CATV, LAN, WAN Networks
● Telecommunication Networks
● FTTH, FTTO and FTTD
