(LGX-AP) LGX Adapter Plates

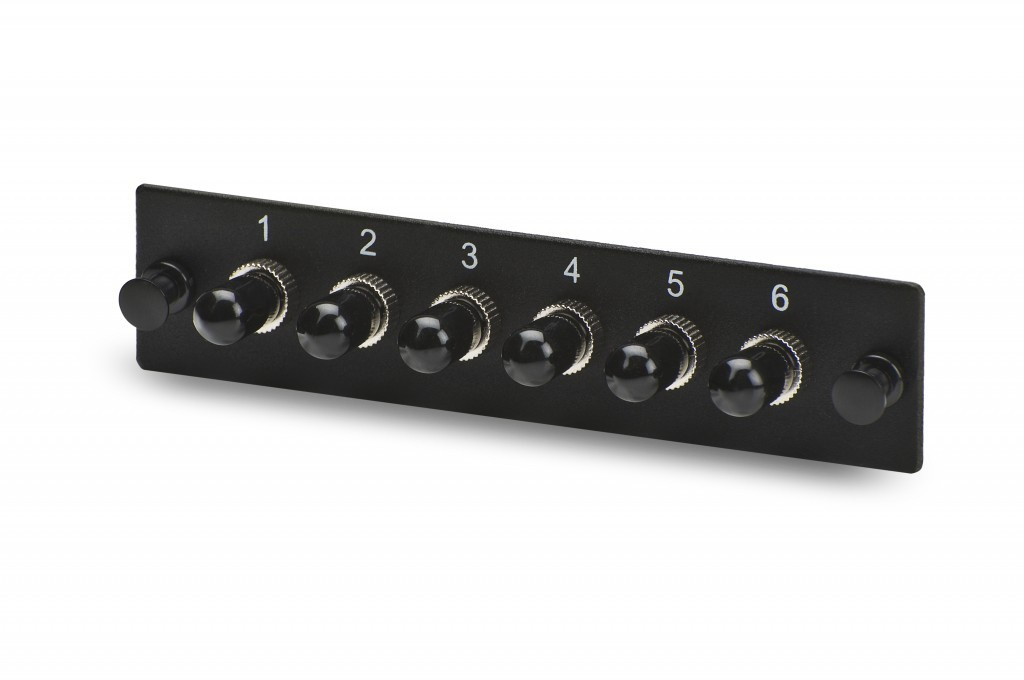

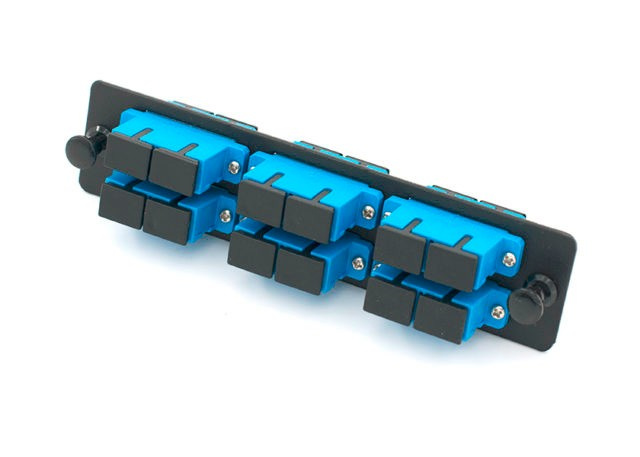

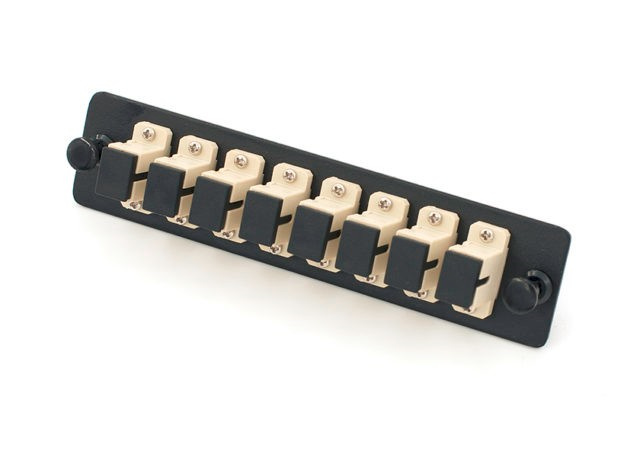

(LGX-AP) Adapter Plates add versatility to the panel product line. Adapter plates are compatible with industry standard platforms allowing for easy upgrades of existing panels. Adapter Plates come preloaded and are available in 6, 8, and 12 pack versions, and are available in virtually any adapter configuration.
● Suitable for SC, LC, ST, FC, MPO/MTP & E2000 adaptors etc.
● Interchangeable for a wide range of products.
● Easy to install with either fastening pips or screw in.
● Ranges from low to high density fibre counts.
● Robust steel design.
● Supplied with adaptors pre-loaded
Item | Parameter | |
Connector Type | SC, LC, ST, FC, MPO/MTP & E2000 | |
Plate Material | Steel and Nylon | |
Fiber Type | SM | MM |
Color | Blue, Green, Metallic | Beige, Metallic, Aqua |
Testing Wavelength | 1310nm, 1550nm | 850nm, 1300nm |
Insertion Loss | Typical≤0.15dB,max.≤0.20dB | |
Repeatability | ≤0.10dB | |
Exchangeability | ≤0.20dB | |
Durability | 1000 Mating, max≤0.20dB | |
Channel Number | Single core, dual-core, four cores | |
Housing Material | Plastic or metal | |
Alignment Sleeve | Ceramic (ZrO2) or customized | |
Operating Temperature | -40℃ to +80℃ | |
Storage Temperature | -40℃ to +85℃ | |
● Data Center LAN/SAN
● LGX-ME Use
● LGX Compatible Connector Housings
● High-Density Fiber Management
