(LGX-CM) MPO/MTP LGX Cassette Modules

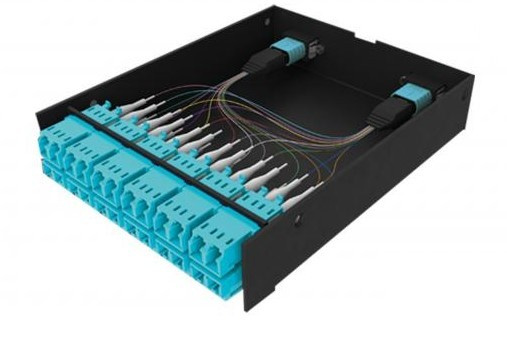

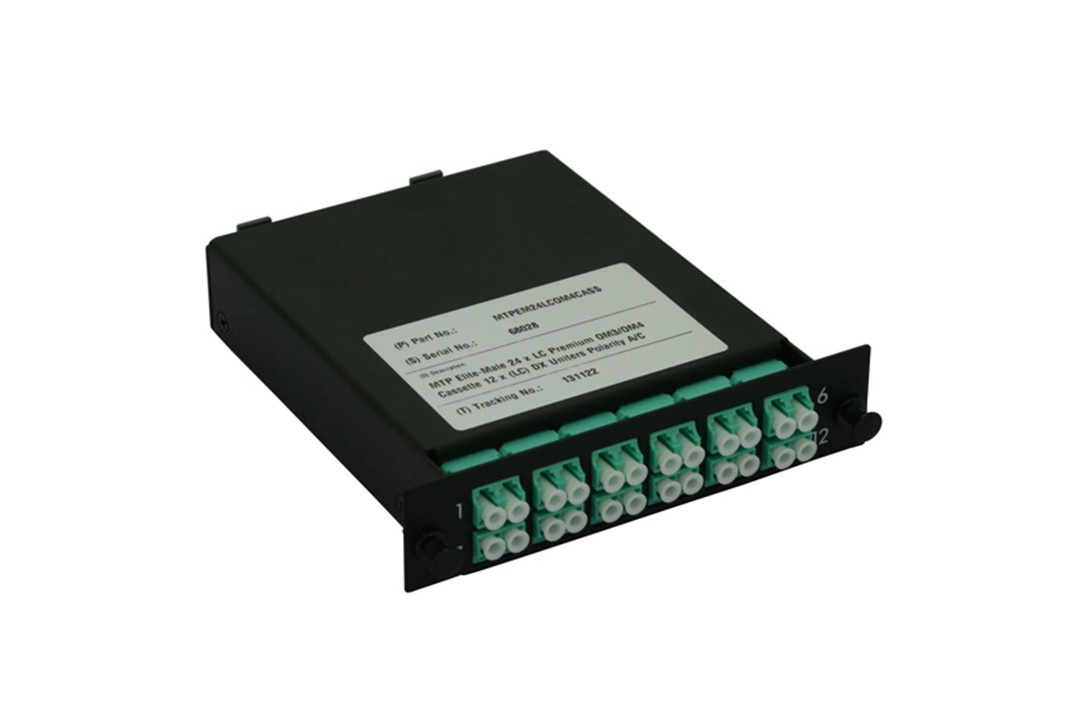

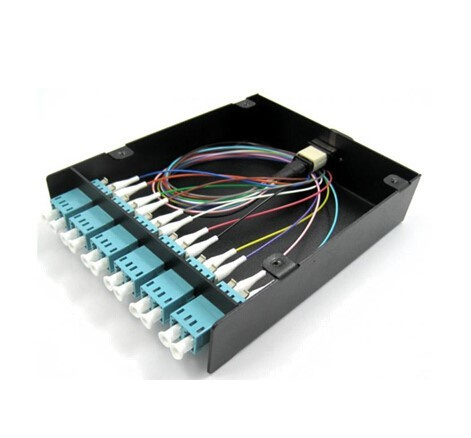

(UHD-CM) MPO/MTP Cassette Modules, provide secure transition between MPO/MTP and LC or SC discrete connectors. they are used to interconnect MPO/MTP backbones with LC or SC patching. Cassettes can be mounted in UHD-ME 19” multi slot chassis. MPO/MTPCassettes contain factory controlled and tested MPO/MTP to LC or SC fanouts to deliver optical performance and reliability. Low loss Premium MPO or MTP and LC or SC Premium versions are offered featuring low insertion loss for demanding power budget high speed networks.
● The 12 core MPO/MTP connector branch to the LC duplex connector or SC connector
● Low loss connection, provides system design flexibility

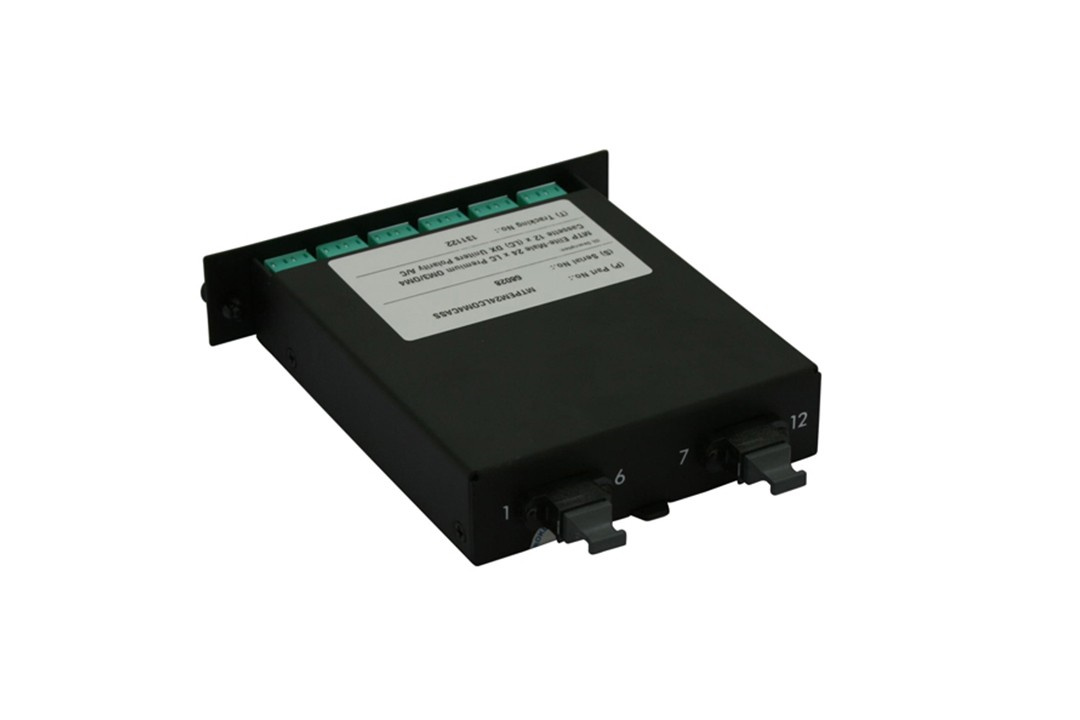

● Front panel assembly LC or SC adapter, rear panel assembly MPO/MTP adapter
● The use of high-quality engineering plastics materials
● Polarity A (standard), B or C
● Factory terminated and tested
● High performance zirconia sleeve adapters
● All ports are labeled, easy to identify
● Convenient installation, flexible configuration, easy to manage
● MPO IEC 61754 standards compliant multifibre connector
Item | Parameter | ||
Connector Type | A : MPO / MTP B : LC/SC | ||
Fiber Type | SM（9/125um） | MM（50/125um、62.5/125um） | |
Polish | UPC | APC | UPC |
Insertion Loss | MPO / MTP : Low Loss≤0.35dB, Standard Loss≤0.60dB LC/SC : Low Loss≤0.15dB, Standard Loss≤0.30dB | ||
Return Loss | ≥50dB | ≥60dB | ≥20dB |
3D(MPO/MTP) | Fiber Height : 1000~3500nm Radius Long: 500mm min Radius Short: 50mm min Max Fiber Differential < 400nm Max Fiber Adj Diff < 200nm Ferrule Height：7.95mm min MM Core Dip：<100nm | ||
3D(LC/SC) | Radius of Curvature :10-25mm(PC/UPC) ，5-12mm(APC） Apex offset : 0-50um High fiber : ±100 nm Angle：8±0.2°(APC） | ||
Repeatability | 1000 times typical change value ≤ 0.20dB | ||
Interchangeability | ≤0.20dB | ||
Test Wavelength | SM: 1310nm / MM: 850nm | ||
Polarity (optional) | A, B and C | ||
MPO / MTP Connector | Male / female | ||
Jacket Material(optional) | LSZH、OFNP、OFNR、PVC | ||
Jacket color | Aqua (OM3, OM4), Erica Violet (OM4), Yellow (OS1/OS2, G.657A1), Orange (OM1, OM2) | ||
Cable Diamete(Branch) | 0.9 mm | ||
Fiber countl(optional) | 8, 12, 16, 24 Core | ||
Fiber Moder(optional) | OS1, OS2, OM1, OM2, OM3, OM4 | ||
Operating Temperature | -20 ~ +70 ℃S | ||
Storage Temperature | -40 ~ +85 ℃ | ||
● Data Center LAN/SAN
● UHD-MC Use
● Emerging 40 & 100Gps Protocols
● Telecommunication network
● CATV, Video and Multimedia
● High-Density Fiber Management
