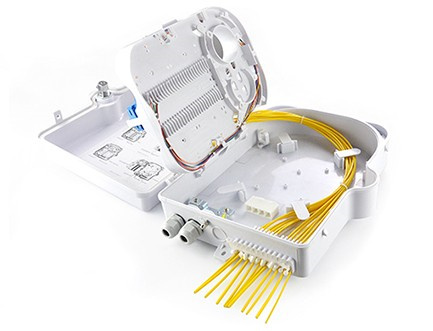

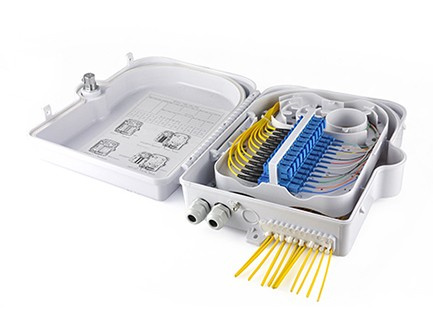

( FAT-Ⅰ) Optial Fiber Access Termination Box
(FAT-Ⅰ) Fiber access termination box is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.
● Water-proof design with IP-65 Protection level
● Integrated with splice cassette and cable management rods
● Manage fibers in a reasonable fiber radius condition
● Easy to maintain and extend the capacity
● Fiber bend radius control more than 40mm
● Suitable for the fusion splice or mechanical splice
● Efficient cable management
● Entrance for drop cable
Suitable Adapters | SC LC Adapters |
Material | Premium PC/ ABS material |
Available Cable | Outdoor or Indoor Cable |
Outlet | 24 Small Ports + 2 Cable Ports |
Installation way | Wall Mounted or Pole Mountable |
Dimensions | 304mm*236.5mm*104mm |
Applications | Wall mount or pole mount |
Compatible Riser Cable Types | Yes |
Connector Capacity | 24 pcs SC |
Connector Type | SC LC |
Drop Cable Connection | Yes |
Includes Splitters | No |
Indoor Outdoor | Both Indoor / Outdoor Cable |
Location | Wall, Pole |
Location of Use | Wall mounted or Pole Mounted |
Lock Compatible | Screws |
Number of Terminal Drops | Max. 24 Cables |
Number of Trays | 1 Splice Tray |
Product Type | Wall mounted Plastic Box |
Solution for | Wall Mount Cabling |
Splice Capacity | Max. 24 fibers |
● CATV, LAN, WAN network
● FTTX Systems
● Telecommunication network
● Used for wall-mounted applications
