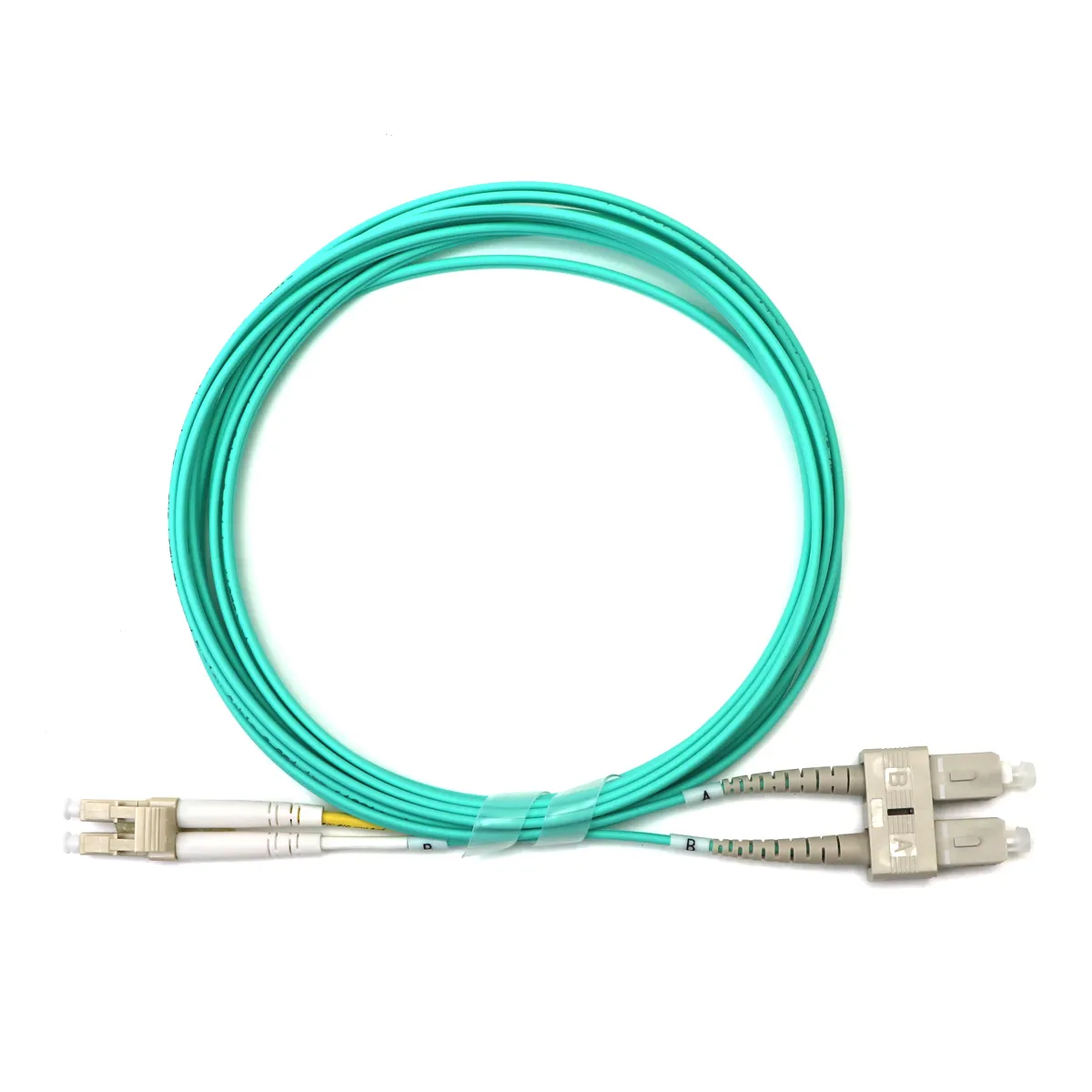

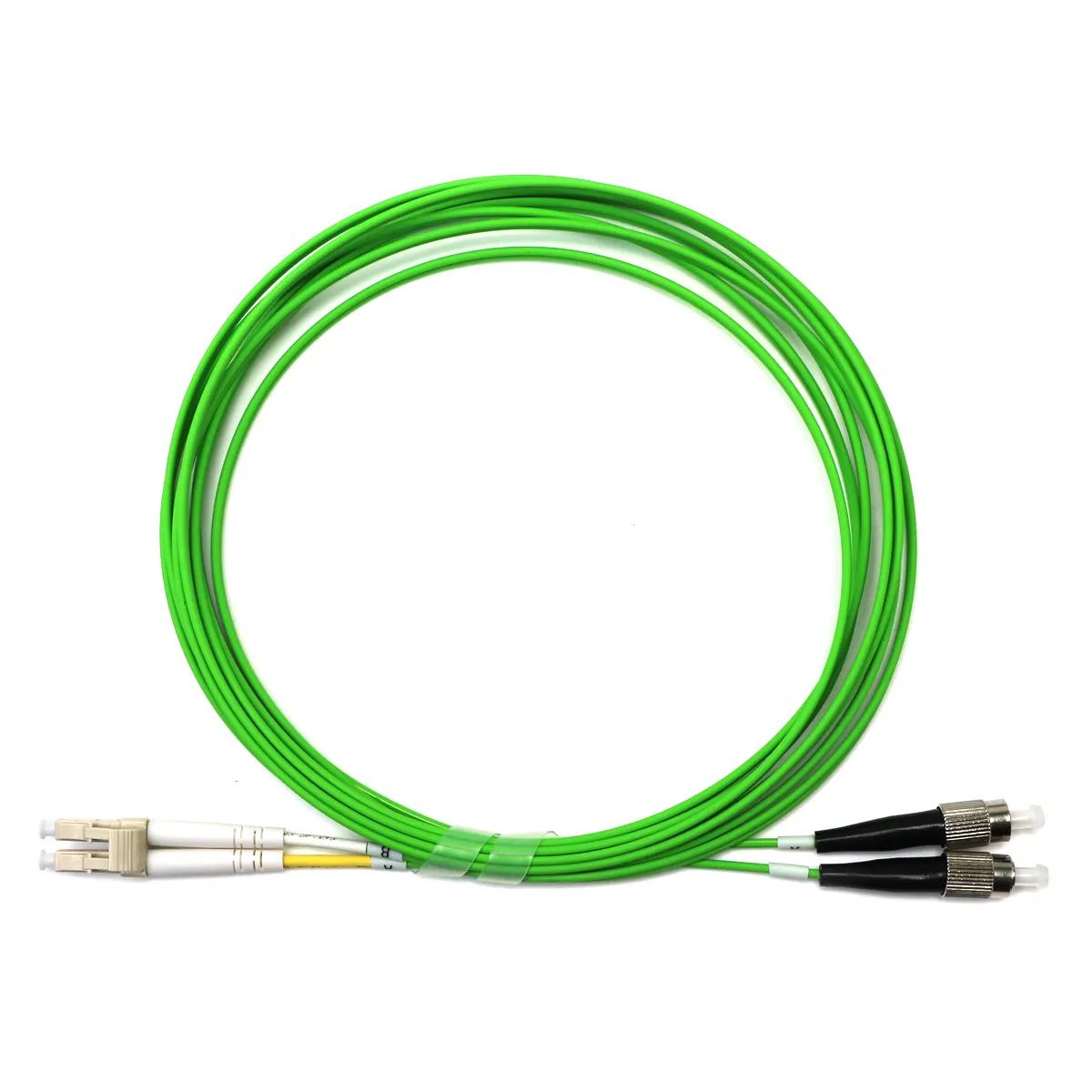

LSZH Fiber Optic Patch Cord — Low Smoke Zero Halogen Jacket
LSZH (Low Smoke Zero Halogen) fiber patch cord with fire-safe jacket for enclosed spaces. Plenum-rated alternative producing minimal toxic fumes when exposed to fire. Available with all standard connectors.
| Specification | Detail |
|---|---|
| CONNECTOR TYPE | LC, SC, FC, ST (Any combination) |
| FIBER MODE | Single Mode / Multimode |
| FIBER COUNT | Simplex / Duplex |
| INSERTION LOSS | ≤ 0.2dB |
| OPERATING TEMPERATURE | -20°C to +70°C |
| CONNECTOR TYPE | LC, SC, FC, ST (Any combination) |
| FIBER MODE | Single Mode / Multimode |
| FIBER COUNT | Simplex / Duplex |
| CABLE DIAMETER | 2.0mm / 3.0mm |
| JACKET MATERIAL | LSZH (Low Smoke Zero Halogen) |
| FLAME RETARDANCY | IEC 60332-1 |
| HALOGEN CONTENT | <0.5% (IEC 60754-1) |
| SMOKE DENSITY | IEC 61034 compliant |
| INSERTION LOSS | ≤0.2dB |
| RETURN LOSS (SM UPC) | ≥55dB |
| OPERATING TEMPERATURE | -20°C to +70°C |
| STANDARDS | IEC 60332-1 · IEC 60754-1 · IEC 61034 · Telcordia GR-326 |
Engineered For Performance
Fire-Safe Jacket Material
LSZH compound produces minimal smoke and no halogen gases when exposed to fire, reducing toxic hazards in enclosed spaces such as tunnels, aircraft, and ships.
CPR Compliant
Meets European Construction Products Regulation (CPR) requirements for cable fire performance, with Euroclass ratings available up to B2ca.
Universal Compatibility
Available with all standard connector types and in both single mode and multimode fiber, directly replacing PVC-jacketed patch cords.
Typical Applications
Enclosed & Underground Spaces
Tunnels, subways, aircraft, ships, and any enclosed environment where smoke and toxic gas generation during fire must be minimized.
Data Center Plenum Spaces
Above-ceiling and below-floor air-handling plenum spaces where building codes mandate low-smoke, halogen-free cabling.
European Building Installations
Commercial and residential buildings where CPR Euroclass cable fire ratings are required by local building regulations.
